4. CONNECT TO NETWORK
4.1. LAN Cable
The LAN cable must be supplied by the customer. It may be a standard straight “patch”
CAT-5 (or better) network cable or it may be a “crossover” cable where the pins are
reversed on one end. The cable type is auto-detected by the power supply.
Note
The serial link cable (0.5 m long) provided with the Genesys™
power supply cannot be used for a LAN connection
4.2. Types of Networks
There are basically two types of networks that are discussed here:
B. NETWORK WITH A SERVER: this is the typical local area network with a server
computer and network administrator to keep it running. The server will download the
IP address and other settings to the power supply

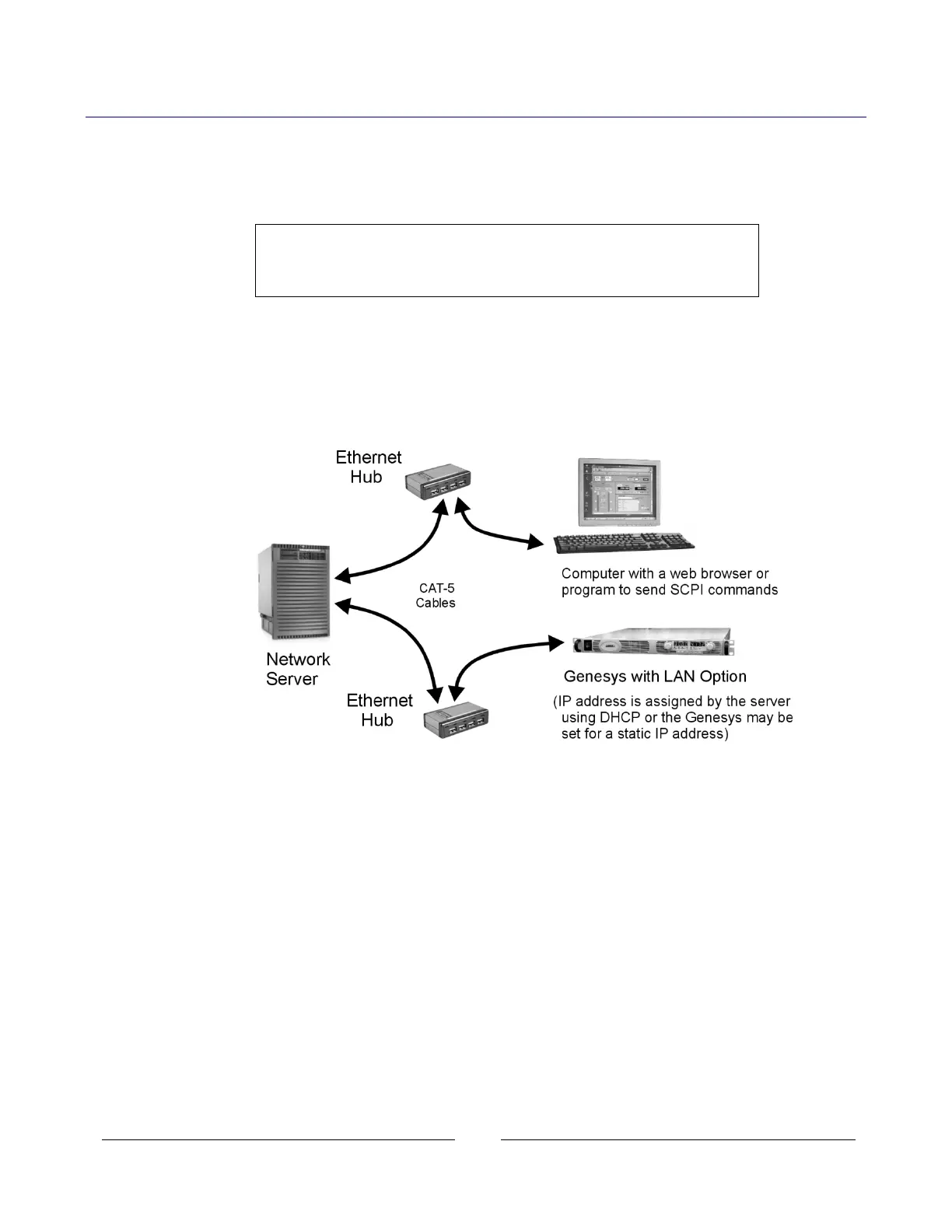

Figure 4. Server Network Connection Diagram
