20
8303460000 Rev A IA672-04-01-Rev. I
6.3. The HOME Page
The following page appears when the web page is first opened or when it is refreshed:

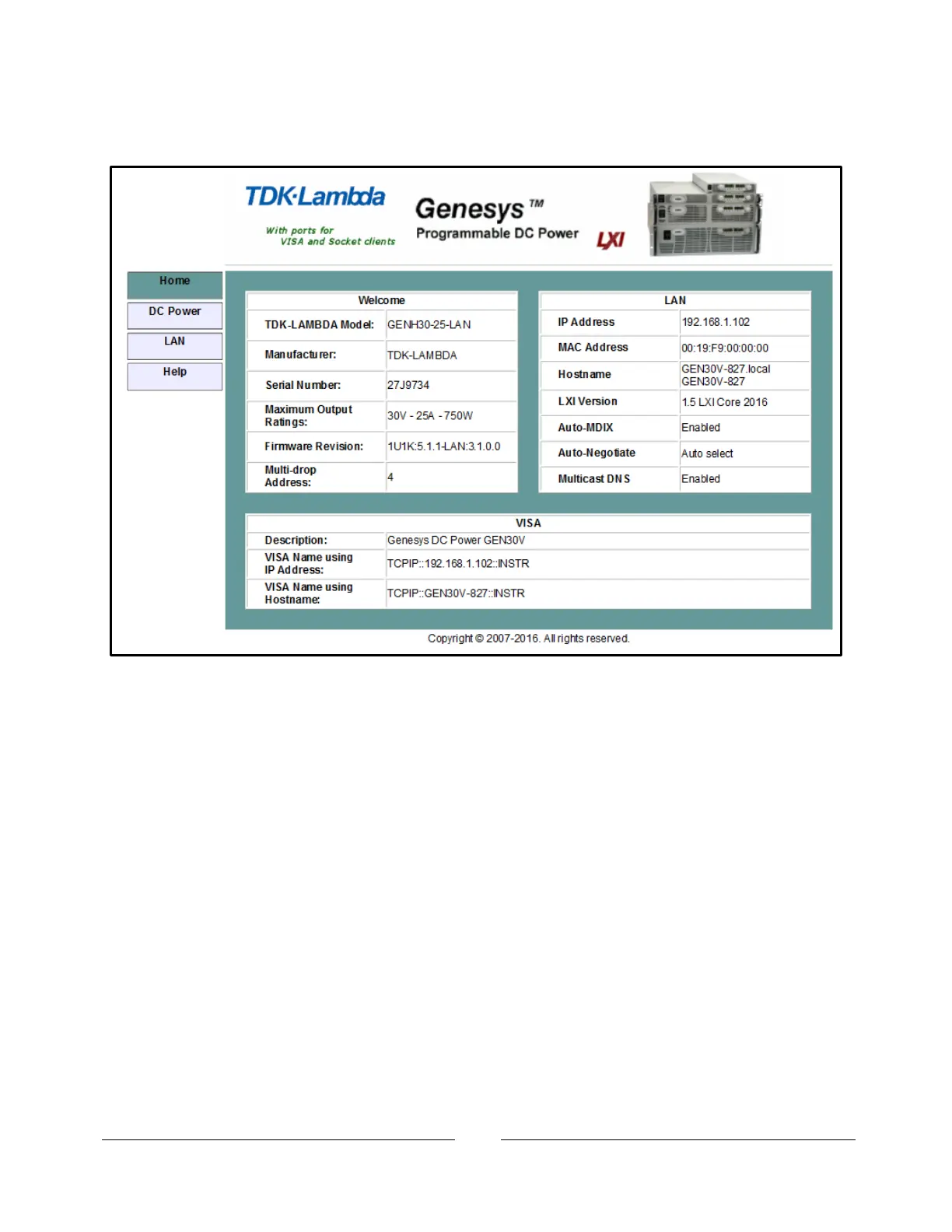

Figure 6. Web HOME Page
VISA Name Using IP Address: For automation programming, VISA is a type of
communication protocol. For LAN instruments, the IP address may be used in the VISA
resource descriptor. See section 7.
VISA Name Using Hostname: For automation programming, an alternate VISA resource
descriptor using the power supply’s hostname. See section 4.5.
RS-485 Address: This address only applies to a multi-drop chain of supplies. This is the
RS-485 address of the LAN supply (also called the master supply). To set this address on
the front panel, see section 12.2.2
Hostname: A unique name for a device on a network. The default hostname is described
in section 4.5 and it is configured in section 6.6.2. If the hostname is not registered with the
network name server using reverse-DNS (rDNS), then the IP address will be shown here.
Auto-MDIX: The LAN will automatically detect if a patch or cross-over LAN cable is used
Auto-Negotiate: The LAN will automatically adjust its speed to the fastest available
Multicast DNS: The LAN will broadcast its hostname even if no network server is present.
This is useful for connecting over simple peer-to-peer networks
