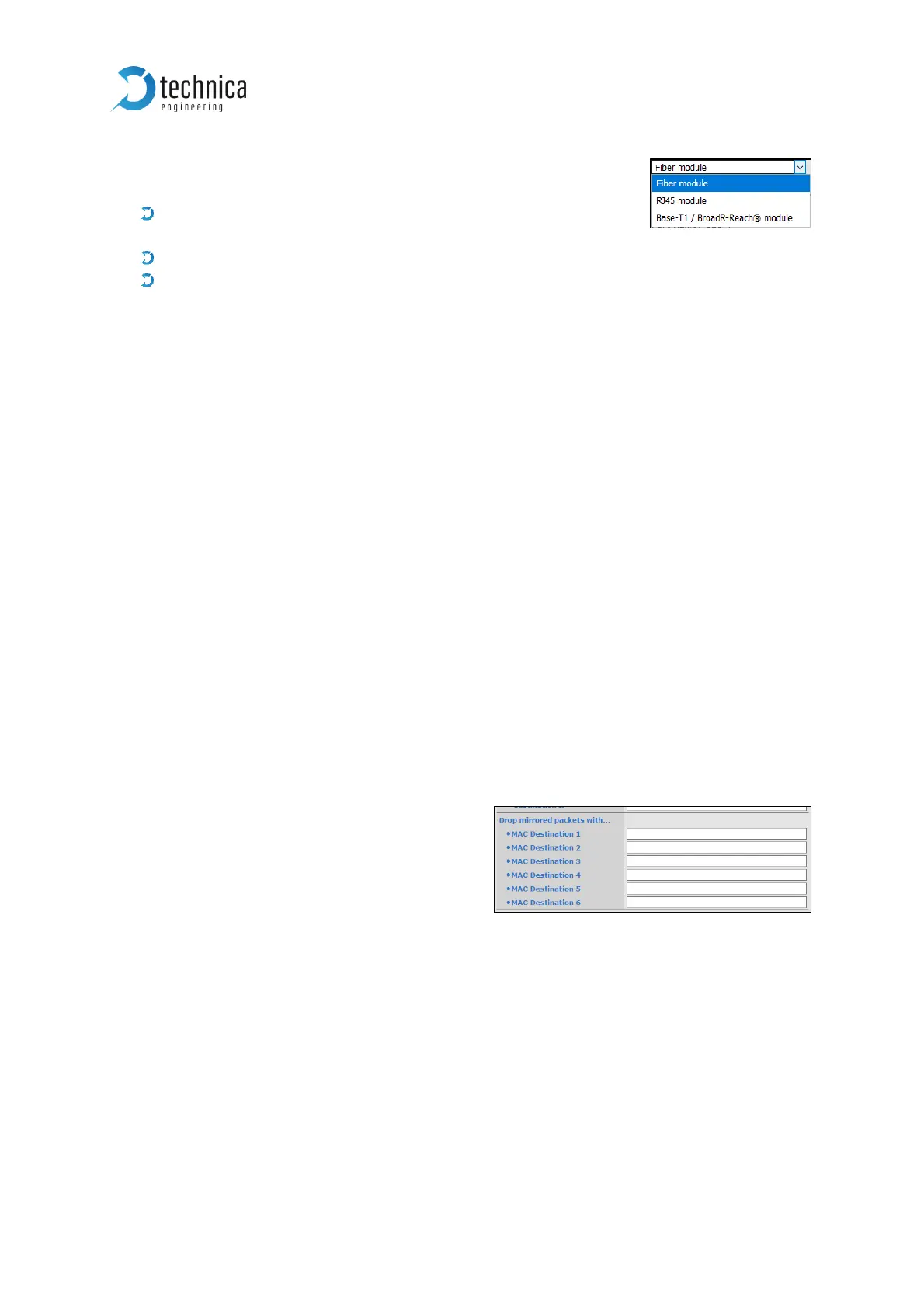

SFP option: In this option, the correct SFP Module has to be
chosen in case a SFP Module is plugged in.
Fiber module: please select this option for fiber optical
SFP-modules.
RJ45 module: please select this option for copper modules.
Base-T1 / BroadR-Reach® module: please select this option for a BASE-T1
modules from Technica-Engineering GmbH
Speed: If autonegotiation is not available, please select the speed of the SFP module
100BASE-T1 for 100Mbps and 1000BASE-T1 for 1000Mbps
BASE-T1 / BroadR-Reach® mode: please configure as slave if the connected device is
master and the other way around. This is only visible, if a BASE-T1 SFP Module is used.
Module information: Based on selected SFP Module and detected hardware, different
information about the SFP Module is displayed here.
Detected features: Based on selected SFP Module and detected hardware, different
information about the features of the SFP Module is displayed here.
Drop ingress packets with…:
Source IP: one IP address can be configured here. It is a filter for incoming traffic. Data
with configured IP address as source IP address will be dropped and not forwarded,
when incoming on this port.
Destination IP: one IP address can be configured here. It is a filter for incoming traffic.
Data with configured IP address as destination IP address will be dropped and not
forwarded.
Drop mirrored packets with…:
Each field allows one MAC address. In total
six MAC addresses can be configured. It is a
filter for outgoing traffic. Data with
configured MAC address as destination MAC
address will be dropped and forwarded
Note: This drop feature is only available if mirroring on this port is activated
