Drop mirrored packets with…:
Each field allows one MAC address. In total
six MAC addresses can be configured. It is a
filter for outgoing traffic. Data with
configured MAC address as destination MAC
address will be dropped and forwarded
Note: This drop feature is only available if mirroring on this port is activated
3.6.2.3 S1-P4 (CPU) and internal ports (P4 and P8)

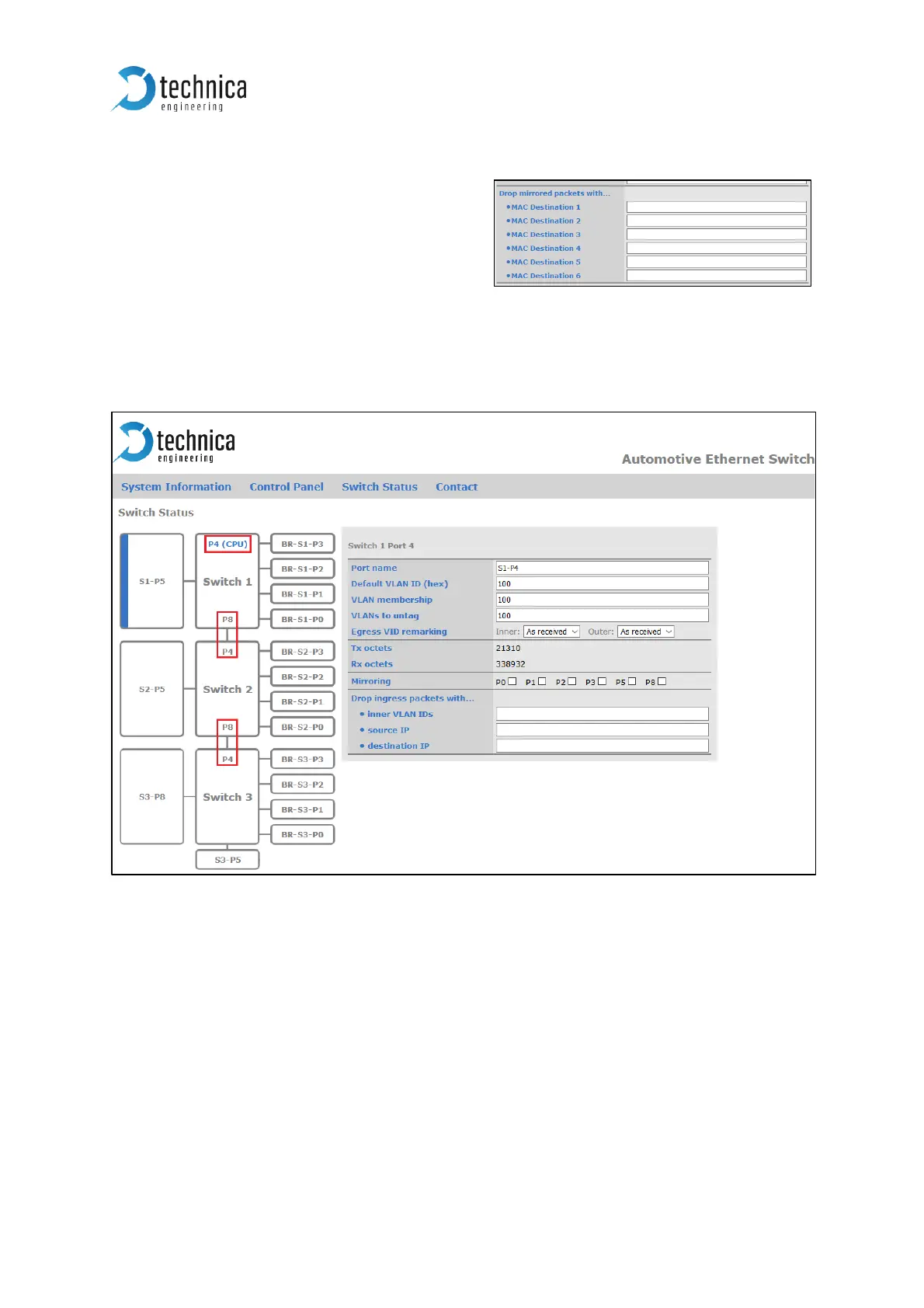

Figure 3-22: CPU port and internal ports
Port name: Here you can change the Port Name
Default VLAN ID (hex): please define one hexadecimal value between 0x1 and 0xFFF.
Incoming traffic is single tagged with this value, if not already tagged. It is not
overwriting VLAN-IDs.
VLAN membership: as many as wished values between 0x1 and 0xFFF can be defined
separated by “,” [E.g.: 100, 101, EDF, …]. Outgoing traffic is allowed to leave the switch
on this port, if the data is tagged with one of the defined VLAN-IDs.
