3.7.1 Communication mode: UDP
Using this mode, the CAN Gateway can be configured by setting target IP Address and
the port of the UDP packets. Non-valid entries will not be accepted and will be replaced
by default values. If the target IP address or the rxPort have set the default value the
CAN Gateway will be disabled.
Here you can see an overview about the configuration board for the UDP mode.

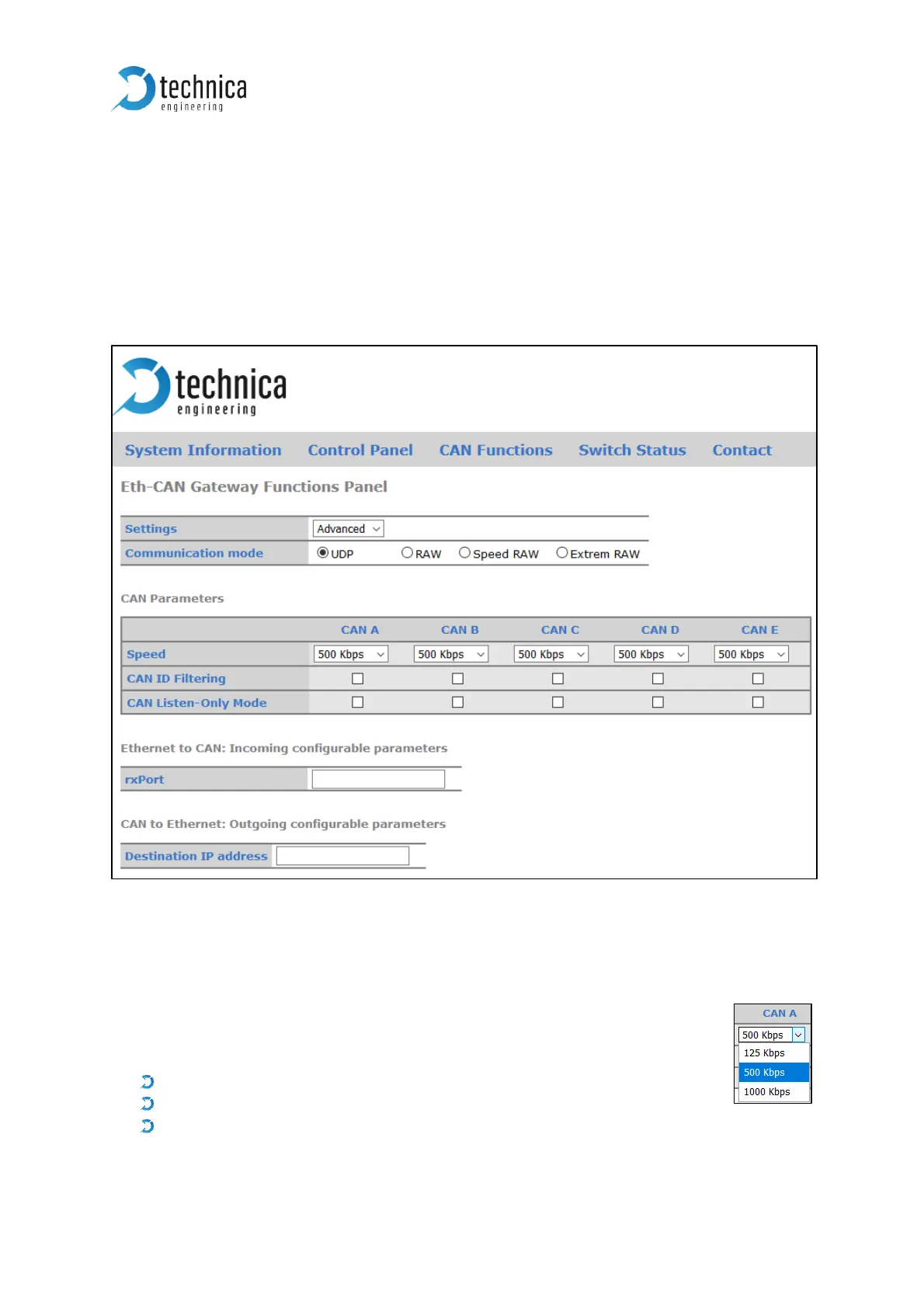

Figure 3-29: Overview CAN Gateway settings in UDP-mode
CAN Parameters:
(only in advanced mode available)
Speed: For each CAN channel the correct speed must be selected (CAN-
FD is not available.)
Following kilo baud per second are available:
125Kbps
500Kbps
1000Kbps
