3.7.2 Communication mode: Raw
Using this mode, the CAN Gateway can be configured by setting target MAC Address
and the EtherType of the RAW packets. Non-valid entries will not be accepted and will
be replaced by default values. If the target MAC address or the EtherType has the
default value set, the Ethernet CAN Gateway will be disabled.
Here you can see an overview about the configuration board for the RAW mode.

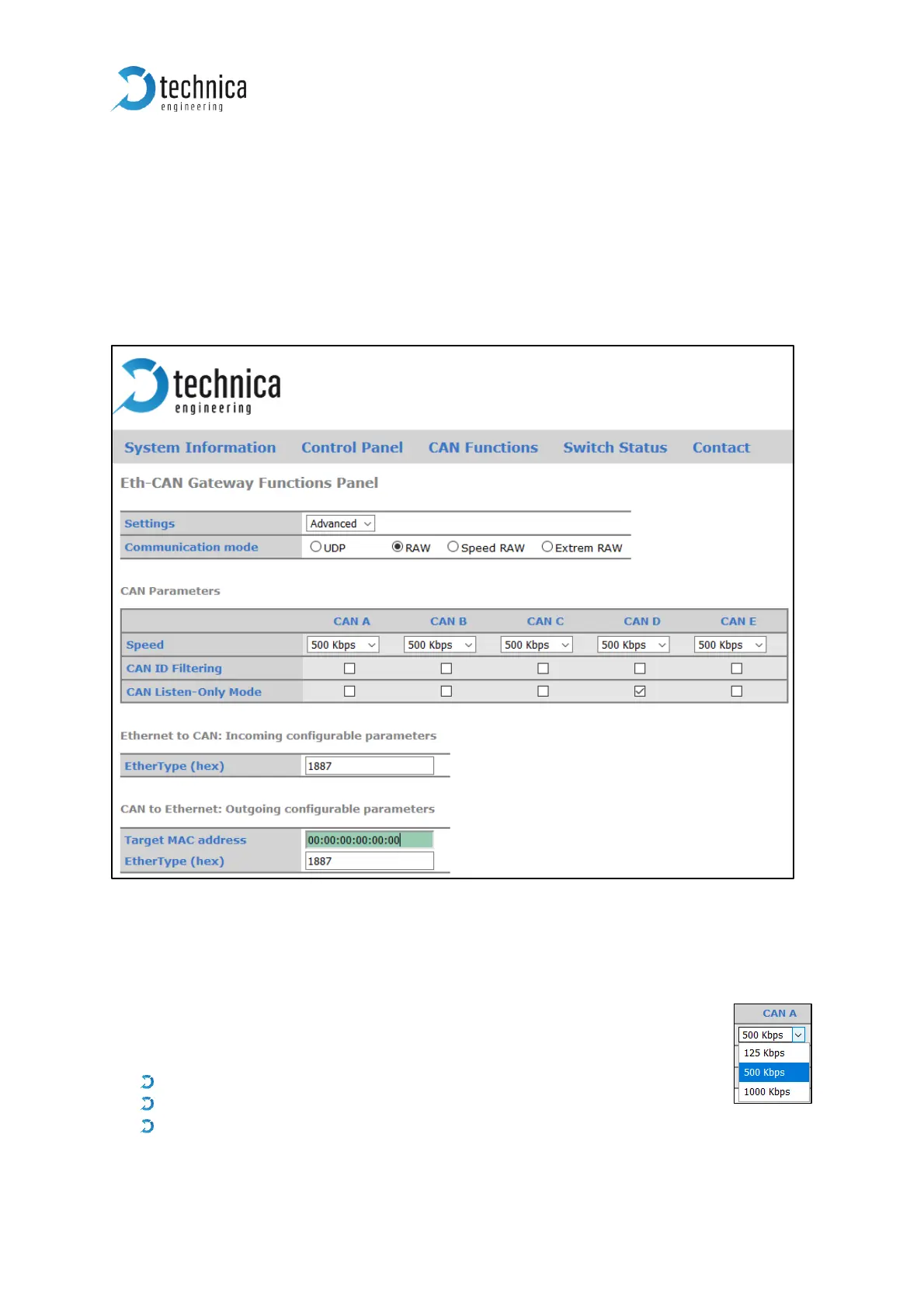

Figure 3-32: Overview CAN Gateway settings in RAW mode
CAN Parameters:
(only in advanced mode available)
Speed: For each CAN channel the correct speed must be selected (CAN-
FD is not available.)
Following kilo baud per second are available:
125Kbps
500Kbps
1000Kbps
