3.6.1.1 Ethernet Port RJ-45

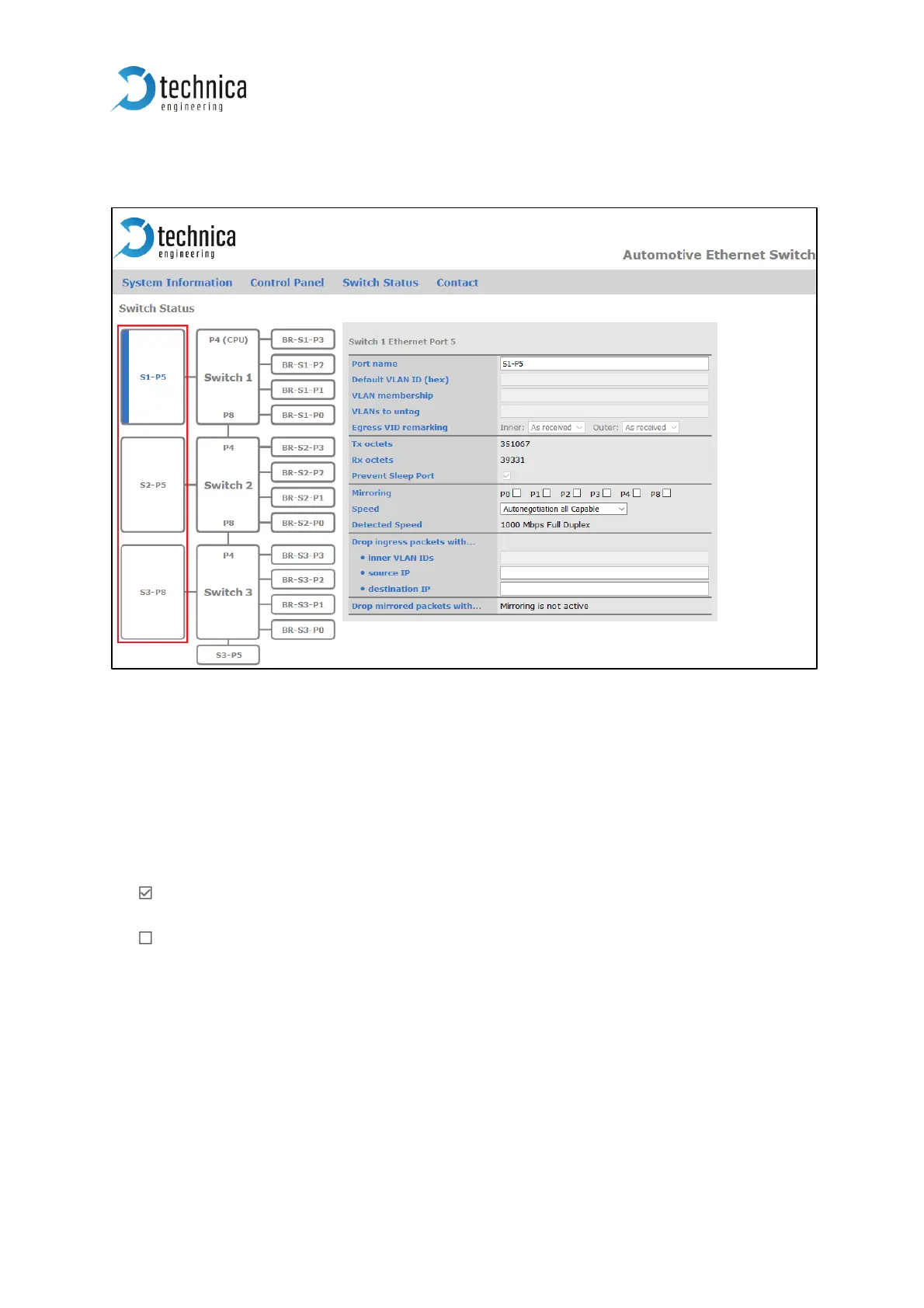

Figure 3-16: Details of the Ethernet Port RJ-45
Port name: Here you can change the Port Name
Tx octets: decimal value of sent octets on this port.
Rx octets: decimal value of received octets on this port.
Prevent Sleep Port: This option is available if the function “Prevent sleep” on “Control
panel” tab is deactivated.
This port is monitored: If on this port is incoming traffic, the MediaGateway
doesn’t go asleep.
This port is not monitored: The MediaGateway can go asleep, even if there is
incoming traffic on this port.
Mirroring: On each switch only on port can be a mirroring port. Please select the ports
to be mirrored.
Note: this is only valid for one switch! For example, if you want to mirror incoming
traffic on S3-P3 to S1-P5, it is necessary to mirror the traffic on S3-P4, then S2-P4 and
then on S1-P5.
