EtherType (hex): The EtherType is a two bytes hexadecimal number. The EtherType
field can accept any value between 0 and FFFF.
Figure 3-37: CAN-Eth-Gateway configurable parameters
3.7.4 Communication mode: Extreme RAW
Using this mode, the CAN Gateway can be configured by setting target MAC Address
and the EtherType of the RAW packets. Non-valid entries will not be accepted and will
be replaced by default values. If the target MAC address or the EtherType has the
default value set, the Ethernet CAN Gateway will be disabled.

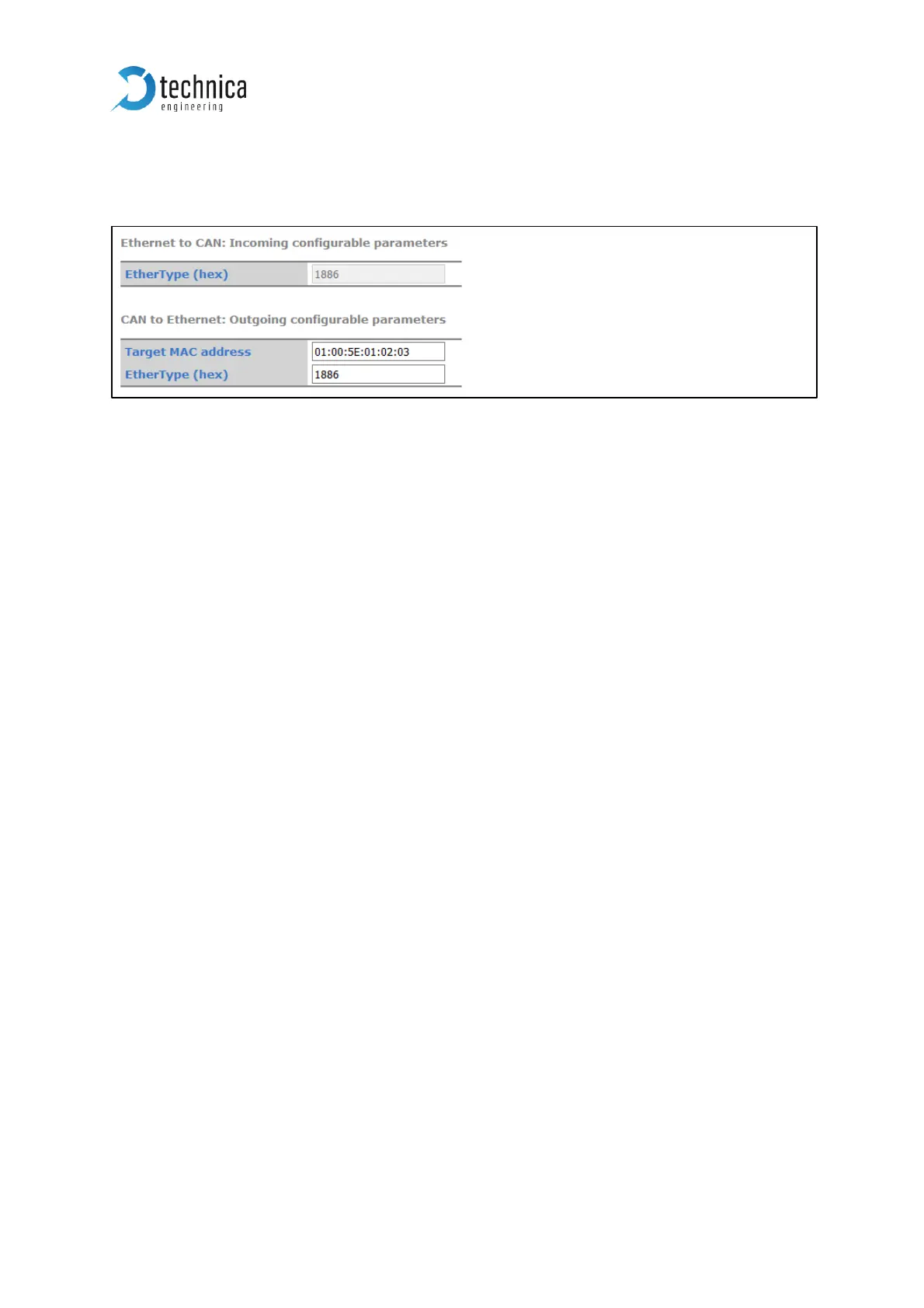

Here you can see an overview about the configuration board for the Extreme RAW
mode.
