3.6.3.1 Ethernet Port RJ-45

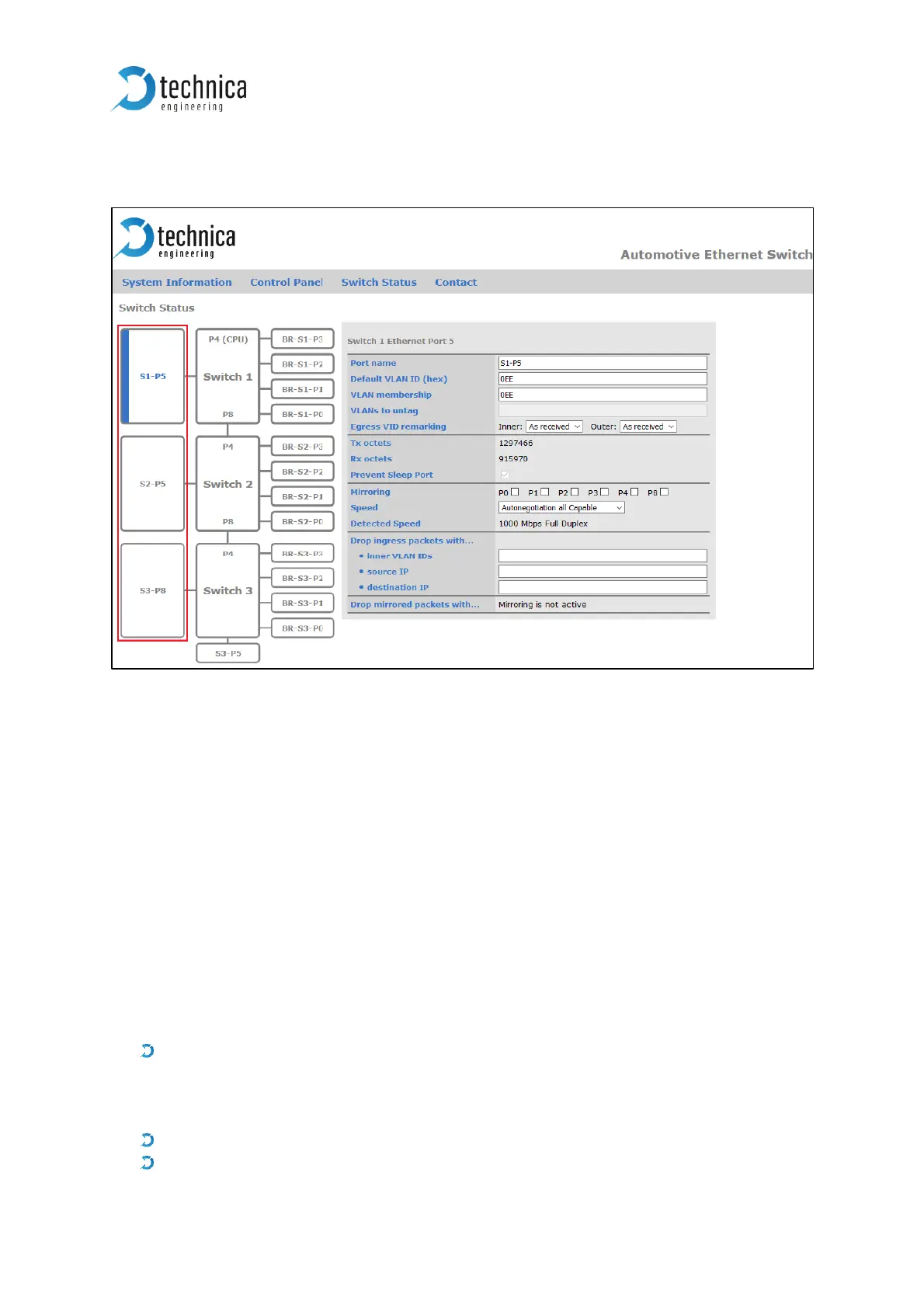

Figure 3-24: Details of the Ethernet Port RJ-45
Port name: Here you can change the Port Name
Default VLAN ID (hex): please define one hexadecimal value between 0x1 and 0xFFF.
Incoming traffic is tagged with this value, if NOT already tagged! It is NOT overwriting
VLAN-IDs. This rule is valid for innerVLAN and outerVLAN!
VLAN membership: as many as wished values between 0x1 and 0xFFF can be defined
here separated by “,” [E.g.: 100, 101, EDF, …]. Outgoing traffic can leave the switch on
this port, if the data is tagged with one of the defined VLAN-IDs. Only outerVLANs are
checked!
Egress VID remarking: this must be defined for innerVLAN and outerVLAN separately.
This adjustment is valid only for (allowed) outgoing traffic. Three different options are
available:
As received: a frame came in to the (current) switch on another port. This frame
must leave on this port “as received” =>
o leave with VLAN if received with VLAN on another port
o leave without VLAN if received without VLAN on another port
Remove: a frame leaves the switch on this port without the VLAN
Normalized: a frame leaves the switch on this port with the VLAN
