Drop mirrored packets with…:
Each field allows one MAC address. In total
six MAC addresses can be configured. It is a
filter for outgoing traffic. Data with
configured MAC address as destination MAC
address will be dropped and forwarded
Note: This feature is only available if mirroring on this port is activated
3.6.3.2 SFP module port

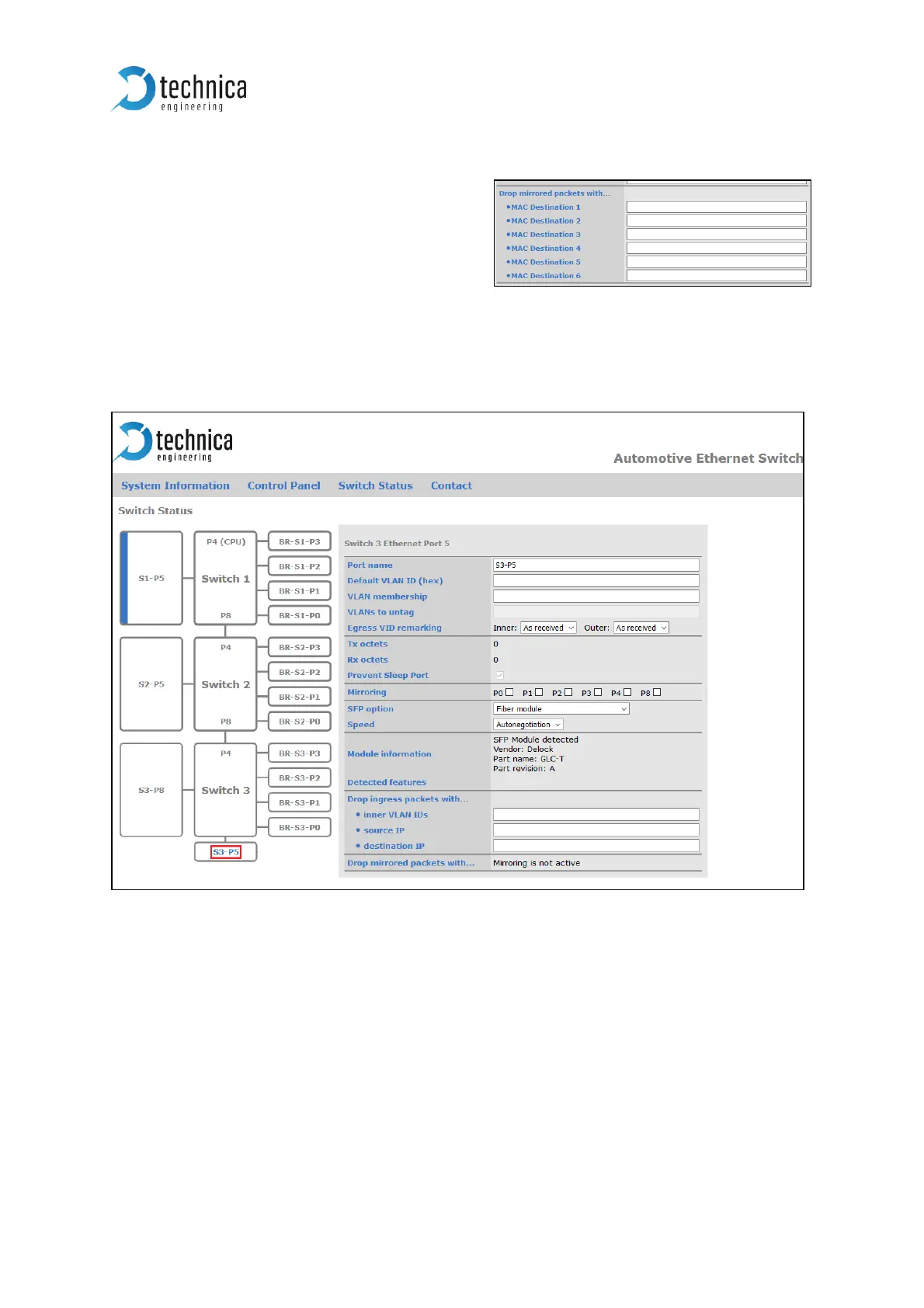

Figure 3-25: SFP Module Port
Port name: Here you can change the Port Name
Default VLAN ID (hex): please define one hexadecimal value between 0x1 and 0xFFF.
Incoming traffic is tagged with this value, if NOT already tagged. It is NOT overwriting
VLAN-IDs. This rule is valid for innerVLAN and outerVLAN!
VLAN membership: as many as wished values between 0x1 and 0xFFF can be defined
here separated by “,” [E.g.: 100, 101, EDF, …]. Outgoing traffic can leave the switch on
this port, if the data is tagged with one of the defined VLAN-IDs. Only outerVLANs are
checked!
