Egress VID remarking: this must be defined for innerVLAN and outerVLAN separately.
This adjustment is valid only for (allowed) outgoing traffic. Three different options are
available:
As received: a frame came in to the (current) switch on another port. This frame
must leave on this port “as received” =>
o leave with VLAN if received with VLAN on another port
o leave without VLAN if received without VLAN on another port
Remove: a frame leaves the switch on this port without the VLAN
Normalized: a frame leaves the switch on this port with the VLAN
Tx octets: decimal value of sent octets on this port.
Rx octets: decimal value of received octets on this port.
Prevent Sleep Port: This option is available if the function “Prevent sleep” on “Control
panel” tab is deactivated.
This port is monitored: If there is incoming traffic on this port, the
MediaGateway doesn’t fall asleep.
This port is not monitored: The MediaGateway can fall asleep, even if there is
incoming traffic on this port.
Mirroring: On each switch only on port can be a mirroring port. Please select the ports
to be mirrored

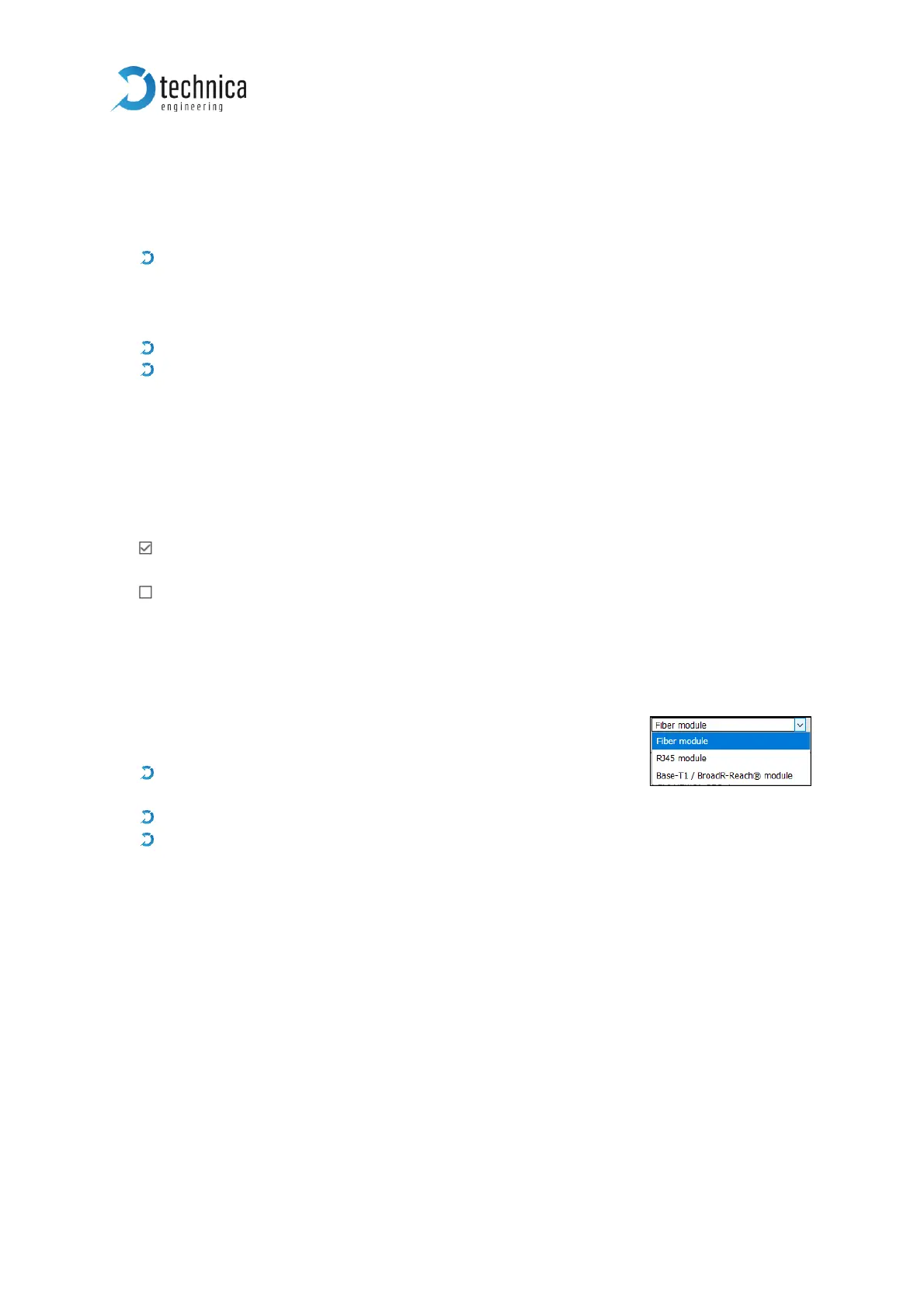

SFP option: The correct SFP Module option has to be chosen, as
long as there is any SFP Module plugged in.
Fiber module: please select this option for fiber optical
SFP-modules.
RJ45 module: please select this option for copper modules.
Base-T1 / BroadR-Reach® module: please select this option for a BASE-T1
modules from Technica-Engineering GmbH
Base-T1 / BroadR-Reach® module: please select this option for a BASE-T1 modules
Speed: If autonegotiation is not available, please select the speed of the SFP module
100BASE-T1 for 100Mbit/s and 1000BASE-T1 for 1000Mbit/s
BASE-T1 / BroadR-Reach® mode: please configure as slave if the connected device is
master and the other way around. This is only visible, if a BASE-T1 SFP Module is used.
Module information: Based on selected SFP Module and detected hardware, different
information about the SFP Module is displayed here.
