Detected features: Based on selected SFP Module and detected hardware, different
information about the features of the SFP Module is displayed here.
Drop ingress packets with…:
Inner VLAN IDs: as many as wished values between 0x1 and 0xFFF can be defined
separated by “,” [E.g.: 100, 101, EDF, …]. It is a filter for incoming traffic. Data with
configured innerVLAN-ID will be dropped and not forwarded, when incoming on this
port.
Source IP: one IP address can be configured here. It is a filter for incoming traffic. Data
with configured IP address as source IP address will be dropped and not forwarded,
when incoming on this port.
Destination IP: one IP address can be configured here. It is a filter for incoming traffic.
Data with configured IP address as destination IP address will be dropped and not
forwarded.

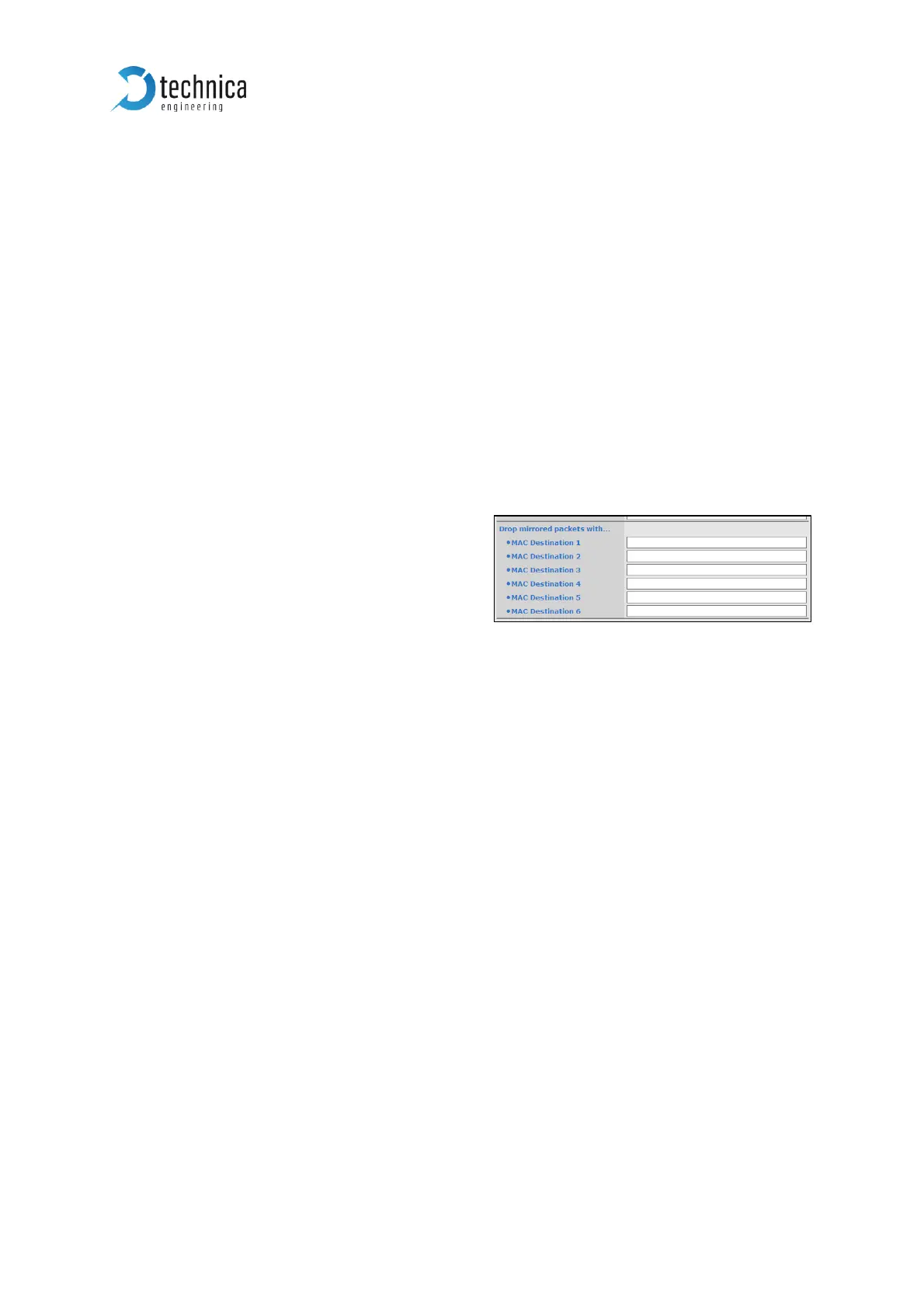

Drop mirrored packets with…:
Each field allows one MAC address. In total
six MAC addresses can be configured. It is a
filter for outgoing traffic. Data with
configured MAC address as destination MAC
address will be dropped and forwarded
Note: This drop feature is only available if mirroring on this port is activated
