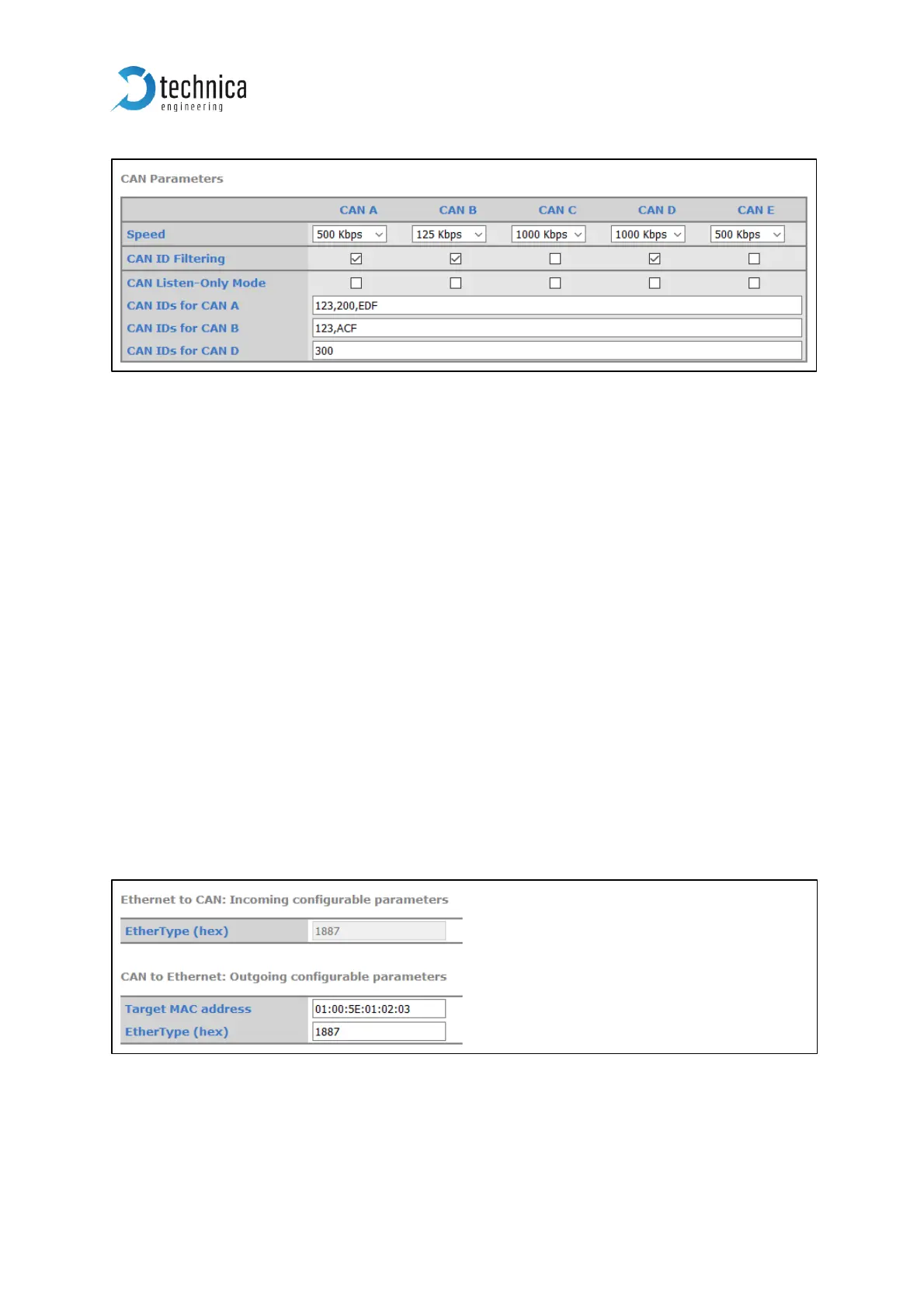

Figure 3-39: CAN Parameters
CAN Listen-Only Mode: By checking the box, Listen-Only mode is active for the
selected CAN channel. Listen-Only means no acknowledge is done for CAN messages
on this bus by the MediaGateway. In deactivated Listen-Only Mode, the MediaGateway
acknowledges every message on the CAN channel. This is necessary if there is no
other communication partner for the CAN messages.
Ethernet to CAN: Incoming configurable parameters:
EtherType (hex): The EtherType is fixed to value 0x1887. No change possible.
CAN to Ethernet: Outgoing configurable parameters:
Target MAC address: Target MAC address must respect the usual format (a sequence
of six hexadecimal numbers having two bytes size each, separated by a colon)
xx:xx:xx:xx:xx:xx. Note that entering Broadcast MAC address FF:FF:FF:FF:FF:FF as
Target MAC address will cause sending time stamps frames to be disabled
EtherType (hex): The EtherType is a two bytes hexadecimal number. The EtherType
field can accept any value between 0 and FFFF.
