KINESIS ONE: Service & Maintenance Manual rev. 2.1
Page 6.9

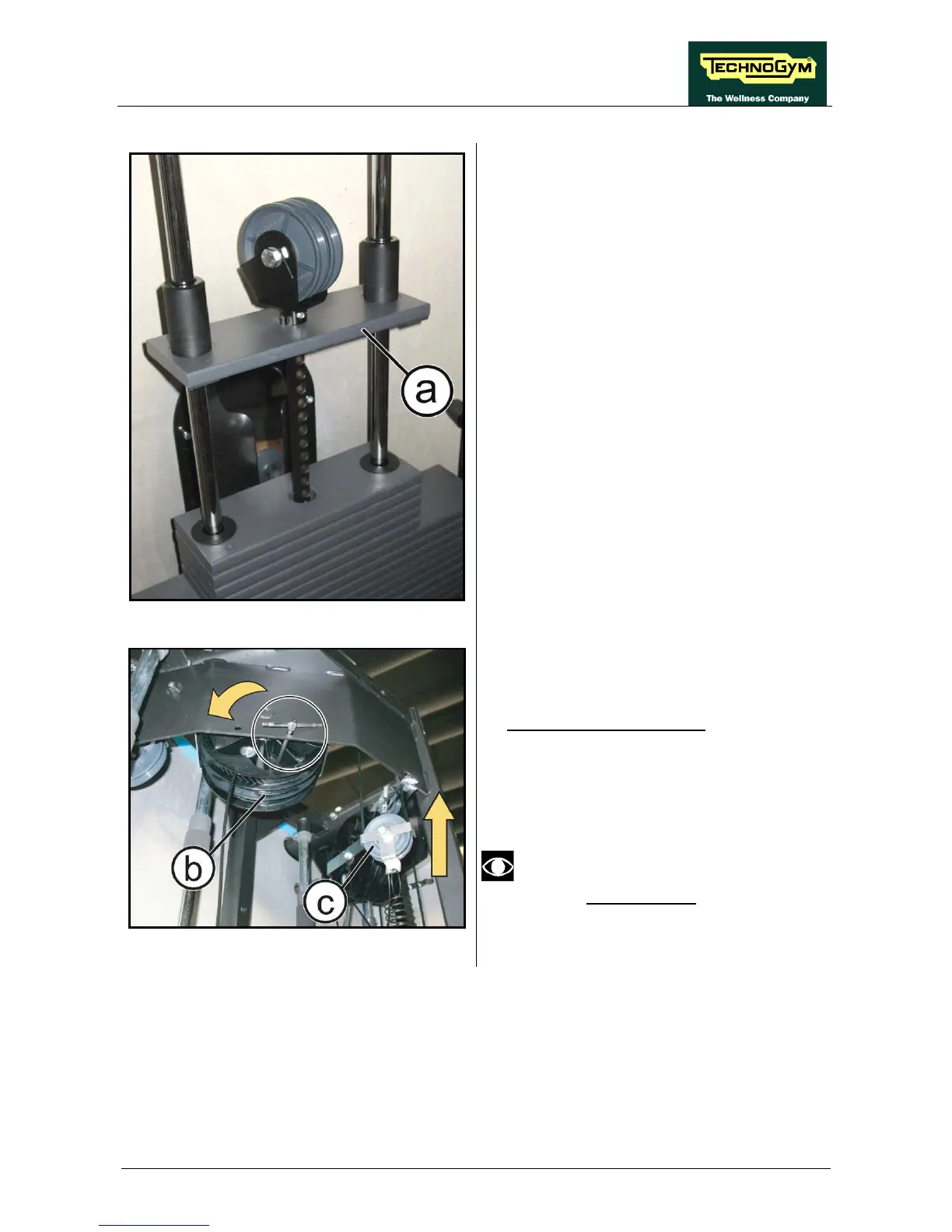

Figure 6.4-4
1. Lift up the first plate (a) of weight stack and
secure with the selection pin on the front, as
shown in figure.
Figure 6.4-5
2. Rotate the cam (b)
COUNTERCLOCKWISE until the spring
group pulley (c) rises upward until it’s
almost up to the frame.
3. Lock the cam using an Allen T wrench
through the frame, as shown in the figure.
If working on the RIGHT side, rotate
the cam CLOCKWISE.
