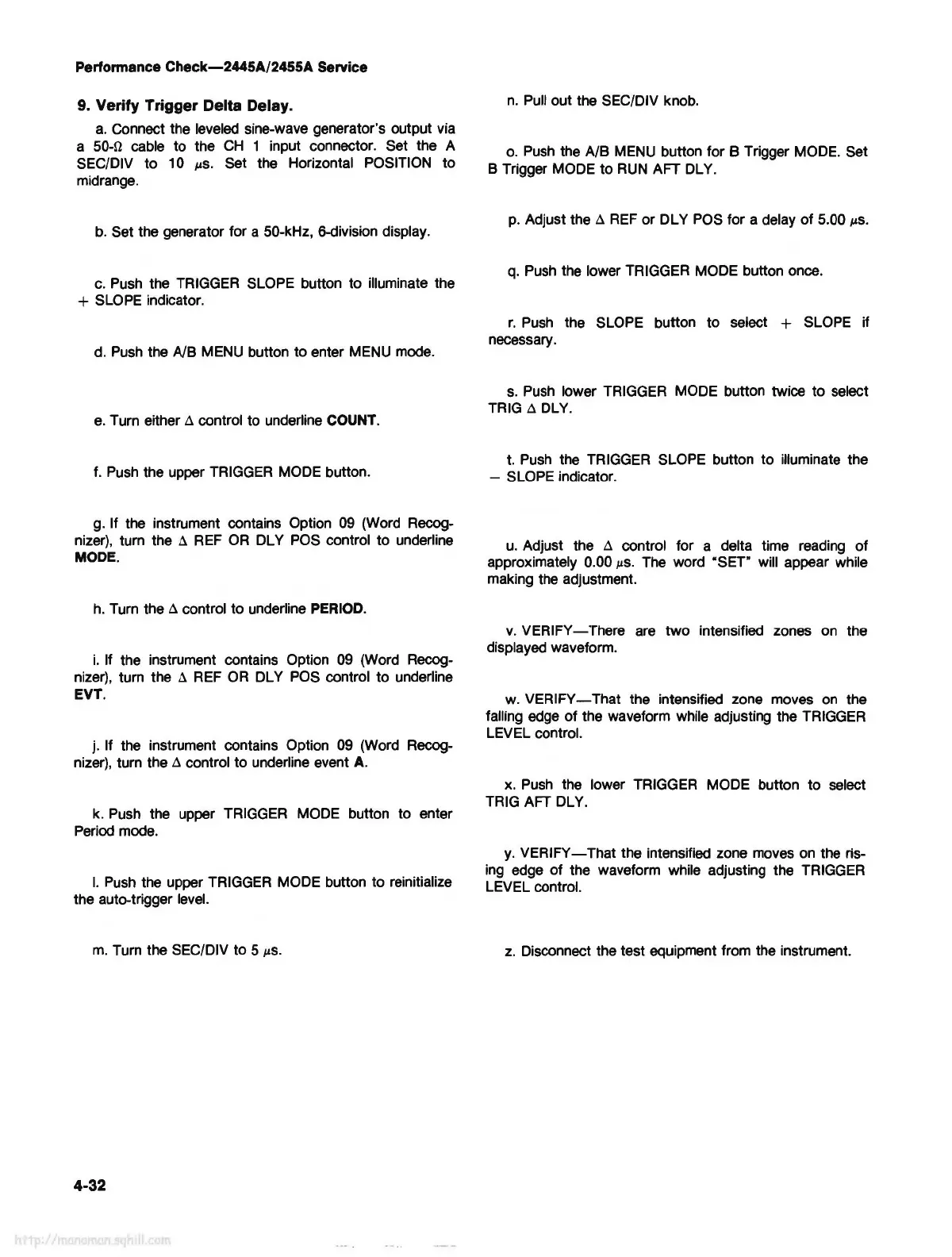

Performance
Check-2445A/2455A
Service
9.
Verify Trigger Delta Delay.
a.
Connect the leveled sine-wave generator's output via
a
50-n cable to the
CH
1 input connector. Set the A
SEC/DIV to 10
µS. Set the Horizontal POSITION to
midrange.
b.
Set the generator for a 50-kHz, 6-division display.
c.
Push
the
TRIGGER
SLOPE button to illuminate the
+
SLOPE
indicator.
d.
Push
the A/B MENU button to enter MENU mode.
e.
Turn
either~
control to underline COUNT.
f.
Push
the upper
TRIGGER
MODE button.
g.
If the instrument contains Option
09
(Word Recog-
nizer), turn the
~
REF
OR
DL Y
POS
control to underline
MODE.
h.
Turn
the~
control to underline PERIOD.
i.
If
the instrument contains Option
09
(Word Recog-
nizer), turn the
~
REF
OR
DL Y
POS
control to underline
EVT.
j. If the instrument contains Option
09
(Word Recog-
nizer), turn the
~
control to underline event A.
k.
Push
the upper TRIGGER MODE button to enter
Period mode.
I.
Push
the upper TRIGGER MODE button to reinitialize
the auto-trigger
level.
m.
Turn the SEC/DIV to 5 µS.
4-32
n.
Pull
out the SEC/DIV knob.
o.
Push
the A/B
MENU
button for B Trigger
MODE.
Set
B Trigger MODE to
RUN
AFT
DLY.
p.
Adjust the
~
REF
or DL Y
POS
for a delay of 5.00 µS.
q.
Push
the lower TRIGGER MODE button once.
r.
Push
the SLOPE button to select + SLOPE if
necessary.
s.
Push
lower TRIGGER MODE button twice to select
TRIG~
DLY.
t.
Push
the TRIGGER SLOPE button to illuminate the
- SLOPE indicator.
u.
Adjust the
~
control for a delta time reading of
approximately 0.00
µS.
The
word "SET" will appear while
making the adjustment.
v.
VERIFY-There
are
two
intensified zones
on
the
displayed waveform.
w.
VERIFY-
That the intensified zone moves
on
the
falling edge of the waveform while adjusting the TRIGGER
LEVEL control.
x.
Push
the lower TRIGGER MODE button to select
TRIG AFT DLY.
y.
VERIFY-That
the intensified zone moves
on
the ris-
ing
edge of the waveform while adjusting the TRIGGER
LEVEL control.
z.
Disconnect the test equipment from the instrument.
