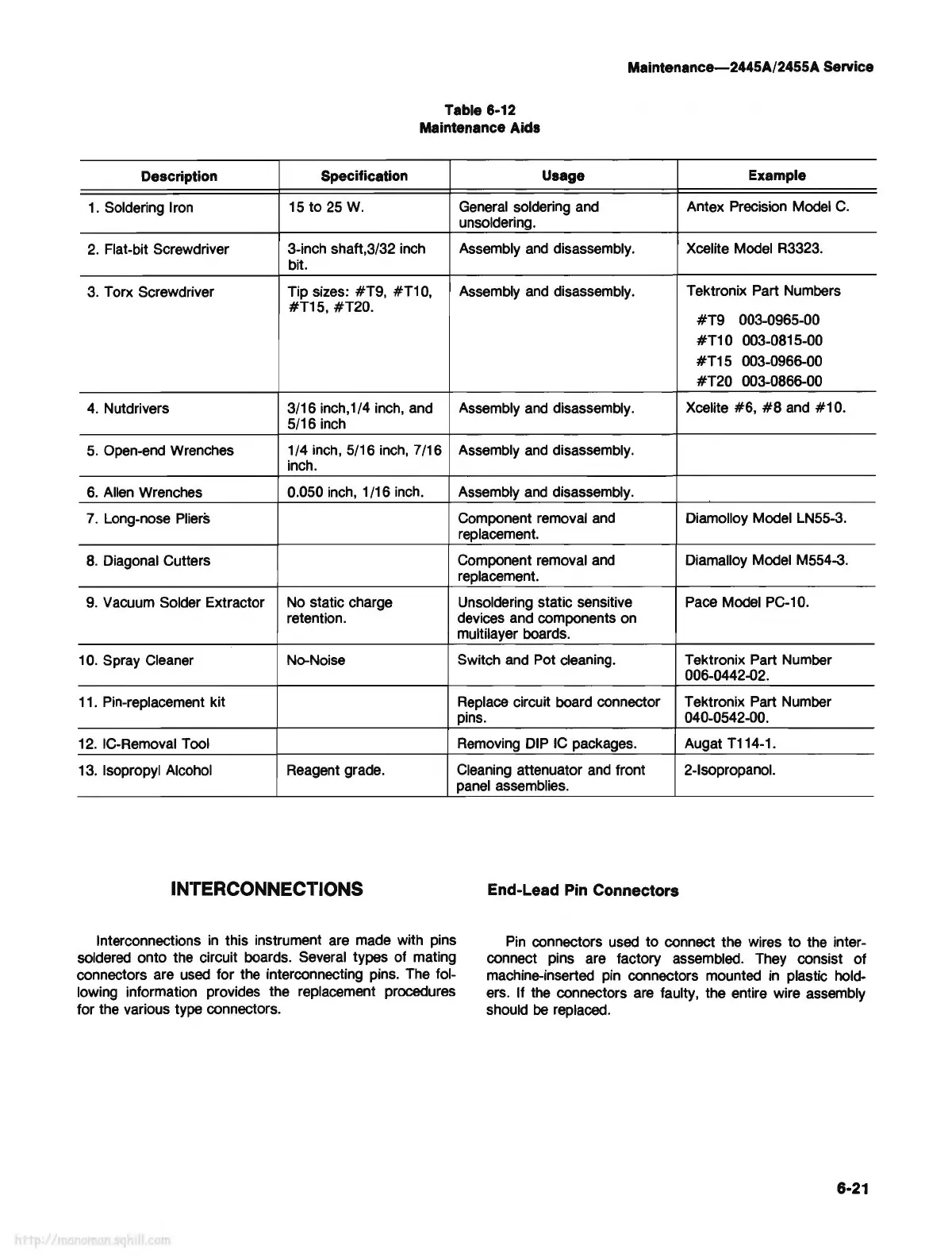

Maintenance-2445A/2455A
Service
Table 6-12
Maintenance Aids
Description
Specification
1.
Soldering Iron
15
to
25
W.
2.
Flat-bit Screwdriver
3-inch shaft,3/32 inch
bit.
3.
Torx Screwdriver
Tip sizes:
#T9,
#T10,
#T15,
#T20.
4.
Nutdrivers
3/16 inch,1/4 inch, and
5/16 inch
5.
Open-end Wrenches
1/4 inch, 5/16 inch, 7/16
inch.
6.
Allen Wrenches
0.050 inch, 1 /16 inch.
7.
Long-nose Pliers
8.
Diagonal Cutters
9.
Vacuum Solder Extractor No static charge
retention.
10. Spray Cleaner No-Noise
11. Pin-replacement kit
12. IC-Removal Tool
13. lsopropyl Alcohol Reagent grade.
IN"rERCONNECTIONS
Interconnections
in
this instrument are made with pins
soldered onto the circuit boards. Several types of mating
connectors are
us.ed
for the interconnecting pins. The fol-
lowing information provides the replacement procedures
for the various type connectors.
Usage
Example
General soldering and Antex Precision Model
C.
unsoldering.
Assembly
and
disassembly. Xcelite Model R3323.
Assembly
and
disassembly.
Tektronix Part Numbers
#T9
003-0965-00
#T10
003-0815-00
#T15
003-0966-00
#T20
003-0866-00
Assembly
and
disassembly.
Xcelite
#6,
#8
and #10.
Assembly
and
disassembly.
Assembly
and
disassembly.
Component removal
and
Diamolloy Model LN55-3.
replacement.
Component removal
and
Diamalloy Model M554-3.
replacement.
Unsoldering static sensitive Pace Model PC-10.
devices and components on
multilayer boards.
Switch and Pot cleaning. Tektronix Part Number
006-0442-02.
Replace circuit board connector Tektronix Part Number
pins. 040-0542-00.
Removing DIP IC packages. Augat T114-1.
Cleaning attenuator
and
front 2-lsopropanol.
panel assemblies.
End-Lead
Pin
Connectors
Pin
connectors used
to
connect the wires
to
the inter -
connect pins are factory assembled. They consist
of
machine-inserted pin connectors mounted
in
plastic hold-
ers. If the connectors are faulty, the entire wire assembly
should
be
replaced.
6-21
