3.
Wrap the instrument with polyethylene sheeting
or
equivalent to protect the outside finish
and
prevent entry of packing materials into the
instrument.
4.
Cushion the instrument
on
all
sides
by
tightly
packing dunnage
or
urethane foam between the
carton
and
the instrument, allowing three inches
on
each
side.

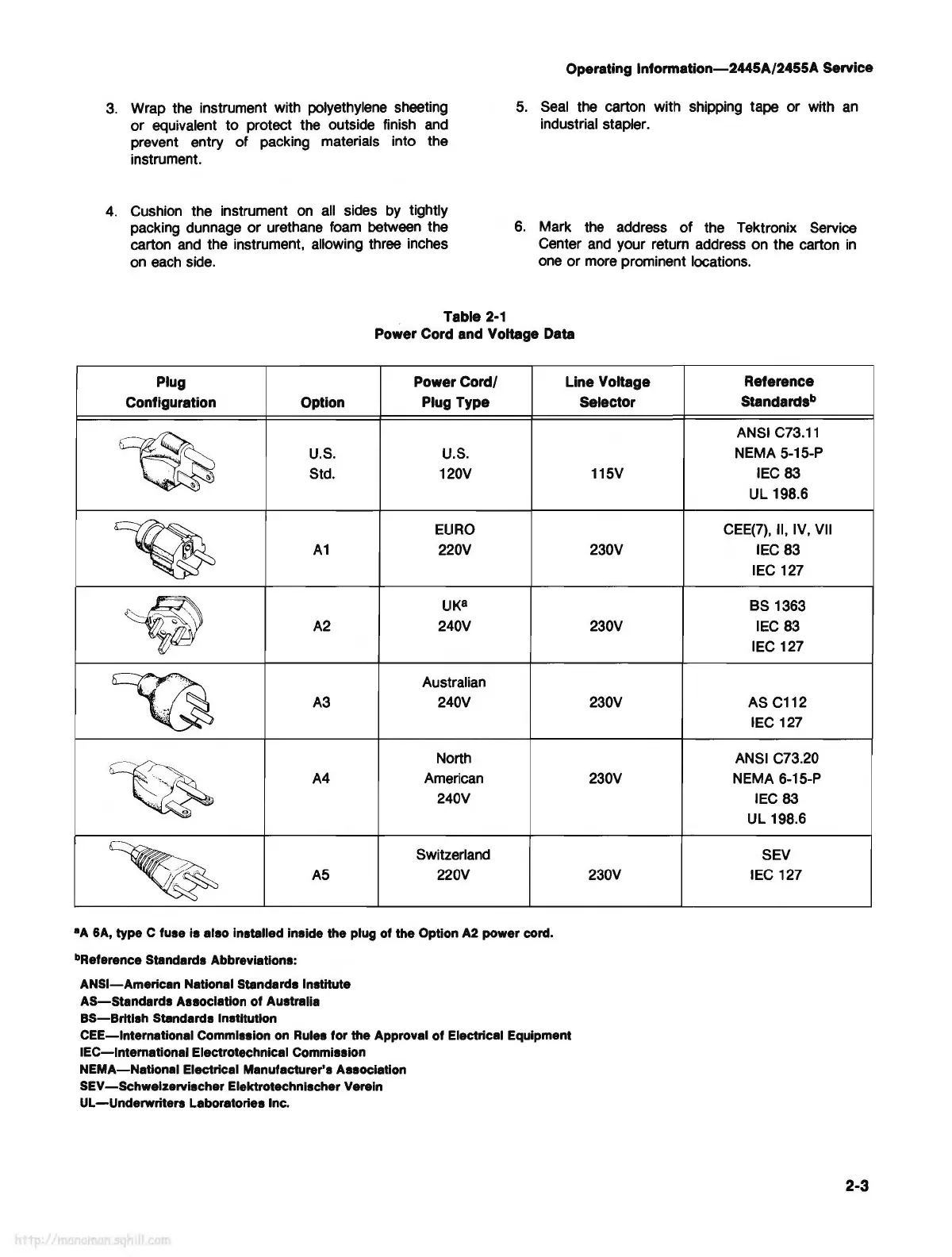

Table 2·1
Operating lnformation-2445A/2455A Service
5.
Seal the carton with shipping tape or with
an
industrial stapler.
6.
Mark the address
of
the Tektronix Service
Center
and
your return address on the carton
in
one
or
more prominent locations.
Power Cord and Voltage Data
Plug Power Cord/ Line Voltage
Configuration Option
Plug Type
U.S.
U.S.
Std. 120V
EURO
A1
220V
LIK
8
A2
240V
Australian
A3
240V
North
A4
American
240V
Switzerland
A5
220V
•A
&A,
type C fuse
is
also Installed inside the plug of the Option A2 power cord.
Reterence Standards Abbreviations:
ANSI-American
National Standards Institute
AS-Standards
AHociation
of
Australia
BS-British
Standards Institution
CEE-lnternational
Commission on Rules
tor
the Approval
of
Electrical Equipment
IEC-lntemational
Electrotechnical Commission
NEMA-National
Electrical Manufacturer's Association
SEV-Schwelzervischer
Elektrotechnlscher Vereln
UL-Underwriters
Laboratories Inc.
Selector
115V
230V
230V
230V
230V
230V
Reference
Standards
ANSI
C73.11
NEMA 5-15-P
IEC83
UL 198.6
CEE(7),
II, IV,
VII
IEC83
IEC
127
BS 1363
IEC
83
IEC
127
AS C112
IEC
127
ANSI
C73.20
NEMA 6-15-P
IEC83
UL 198.6
SEV
IEC
127
2-3
