Speclficatlon-2445A/2455A Service
Characteristics
Weight
With Accessories and Pouch
With Option 06 and
09
Without Accessories and Pouch
Domestic Shipping Weight
With Option
06 and 09
Height
Without Accessories Pouch, with
or without
Options 06 and 09

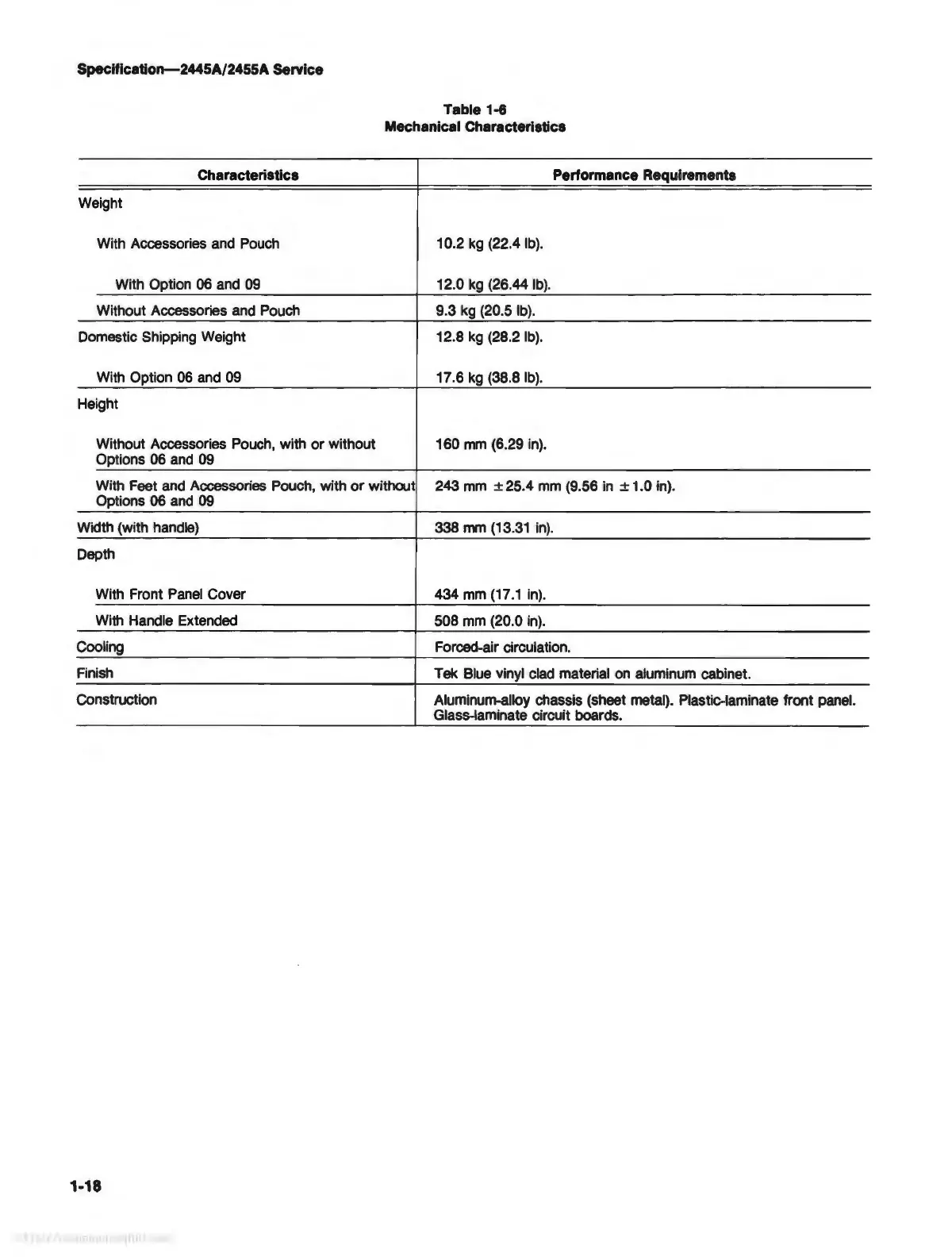

Table 1-6
Mechanical Characteristics
Performance Requirements
10.2 kg (22.4 lb).
12.0 kg (26.44 lb).
9.3 kg (20.5 lb).
12.8 kg (28.2 lb).
17.6 kg
(38.8 lb).
160
mm (6.29 in).
With Feet and Accessories Pouch, with
or without
243 mm
± 25.4 mm (9.56 in ± 1.0 in).
Options 06 and 09
Width (with handle)
338 mm (13.
31 in).
Depth
With Front Panel Cover
434 mm
(17.1 in).
With Handle Extended
508 mm (20.0 in).
Cooling
Forced-air circulation.
Finish
Tek Blue vinyl clad material
on aluminum cabinet.
Construction
Aluminum-alloy chassis (sheet metal). Plastic-laminate front panel.
Glass-laminate circuit boards.
1-18
