Operating lnformation-2445A/2455A Service
LINE
FUSE
=======================================
CAUTION
TD
AVOID
ELECTRIC
SHOCK
THE
POWER
CORO
PROTECTIVE
GROUNDING
CONDUCTOR
MUST
BE
CONNECTED
TO
GROUND.
00
NOT
REMOVE
COVERS.
REFER
SERVICING
TO
DLIALIFIEO
PERSONNEL.
DISCONNECT
INPUT
POWER
BEFORE
REPlACING
FUSE
FOR
CONTINUED
FIRE
PROTECTION
REPLACE
ONLY
WITH
SPECIFIED
TYPE
ANO
RATED
FUSE
RANGE
POWER
WATTS
180
48-440Hz
POWER
CORD
RECEPTACLE
OUT
B
OUT
EXT
SWITCH
TTLJl
LINE
SELECTOR
SWITCH
l
6017-26

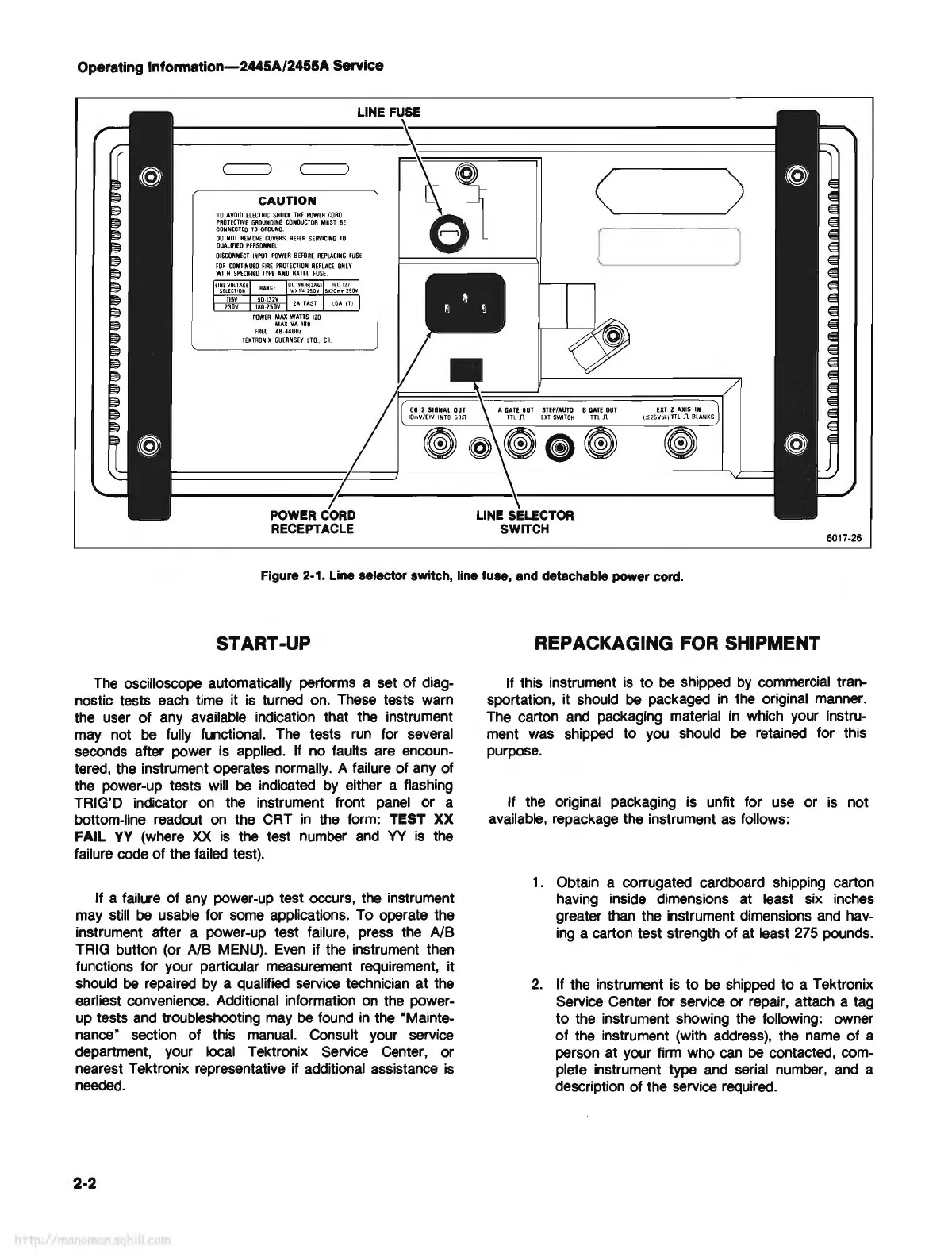

Figure 2-1. Line selector switch,
line
fuse,
and
detachable power
cord.
START-UP
The oscilloscope automatically performs a set of diag-
nostic tests
each
time it
is
turned
on.
These tests warn
the user of
any
available indication that the instrument
may
not
be
fully functional. The tests
run
for several
seconds after power is applied. If no faults are encoun-
tered, the instrument operates normally. A failure of
any
of
the power-up tests will
be
indicated
by
either a flashing
TRIG'D indicator
on
the instrument front
panel
or a
bottom-line readout
on
the CRT
in
the form: TEST XX
FAIL
VY
(where
XX
is
the test number
and
YY
is
the
failure code of the failed test).
If a failure of
any
power-up test occurs, the instrument
may
still
be
usable for
some
applications. To operate the
instrument after a power-up test failure, press the A/B
TRIG button (or A/B
MENU).
Even
if the instrument then
functions for your particular measurement requirement, it
should
be
repaired
by
a qualified service technician at the
earliest convenience. Additional information
on
the power-
up tests
and
troubleshooting
may
be
found
in
the "Mainte-
nance" section of this
manual.
Consult your service
department, your local Tektronix Service Center, or
nearest Tektronix representative if additional assistance
is
needed.
2-2
REPACKAGING FOR SHIPMENT
If this instrument
is
to
be
shipped
by
commercial tran-
sportation, it should
be
packaged
in
the original manner.
The carton
and
packaging material
in
which your Instru-
ment
was
shipped to you should
be
retained for this
purpose.
If
the
original packaging is unfit for
use
or
is
not
available, repackage the instrument
as
follows:
1 . Obtain a corrugated cardboard shipping carton
having inside dimensions at least six inches
greater than the instrument dimensions
and
hav-
ing
a carton test strength of at least
275
pounds.
2.
If
the
instrument
is
to
be
shipped to a Tektronix
Service Center for service or repair, attach a tag
to
the instrument showing the following: owner
of the instrument (with address), the
name
of a
person at your firm who
can
be
contacted, com-
plete instrument type
and
serial
number,
and
a
description of the service required.
