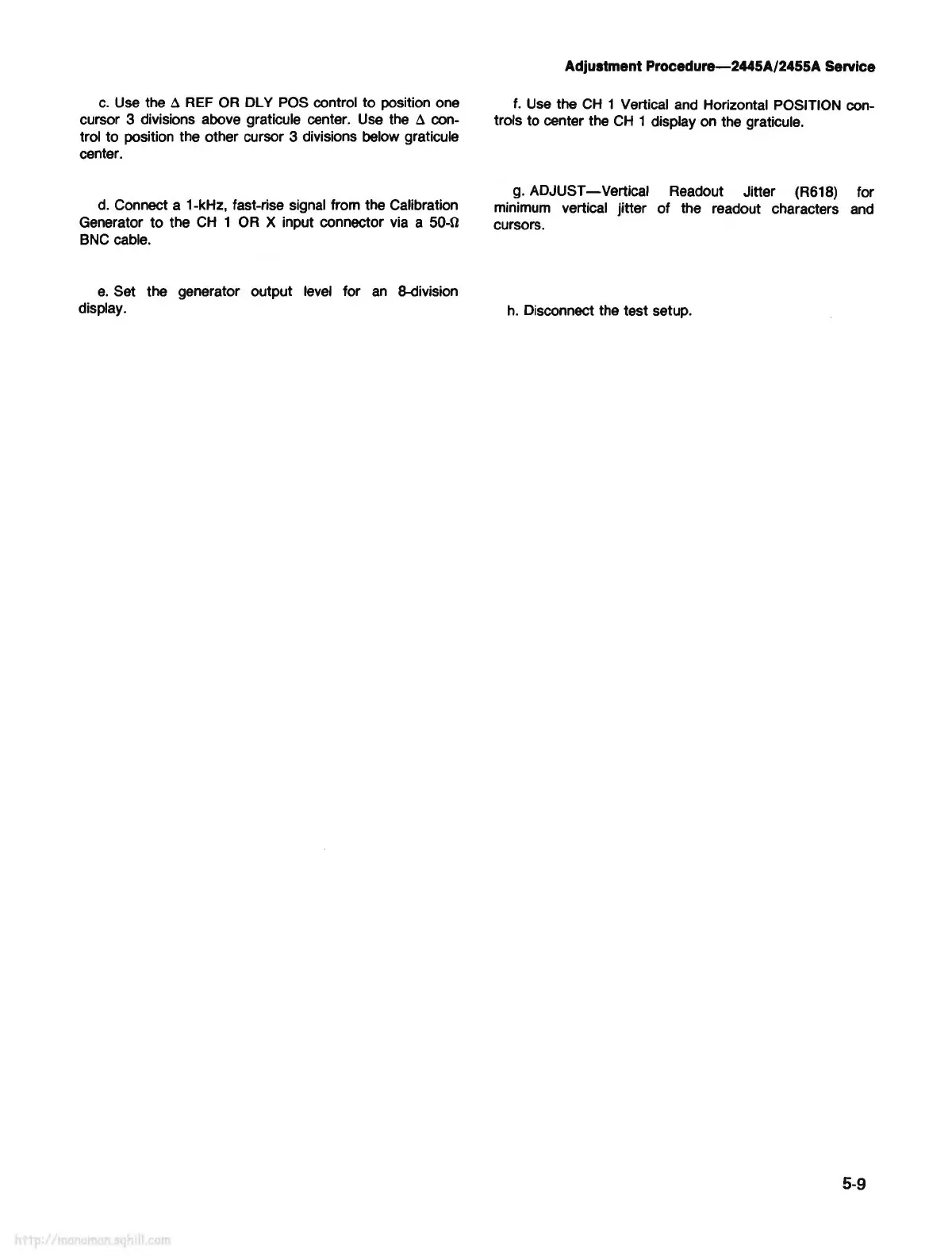

c.
Use the
~
REF
OR
DL Y
POS
control to position one
cursor 3 divisions above graticule center. Use the
~
con-
trol to position the other cursor 3 divisions below graticule
center.
d.
Connect a 1-kHz, fast-rise signal from the Calibration
Generator to the
CH
1
OR
X input connector via a 50-0
BNC
cable.
e.
Set the generator output
level
for
an
8-division
display.
Adjustment Procedure-2445A/2455A Service
f.
Use
the
CH
1 Vertical
and
Horizontal POSITION con-
trols to center the
CH
1 display on the graticule.
g.
ADJUST-Vertical Readout Jitter (R618) for
minimum vertical jitter of the readout characters
and
cursors.
h.
Disconnect the test setup.
5-9
