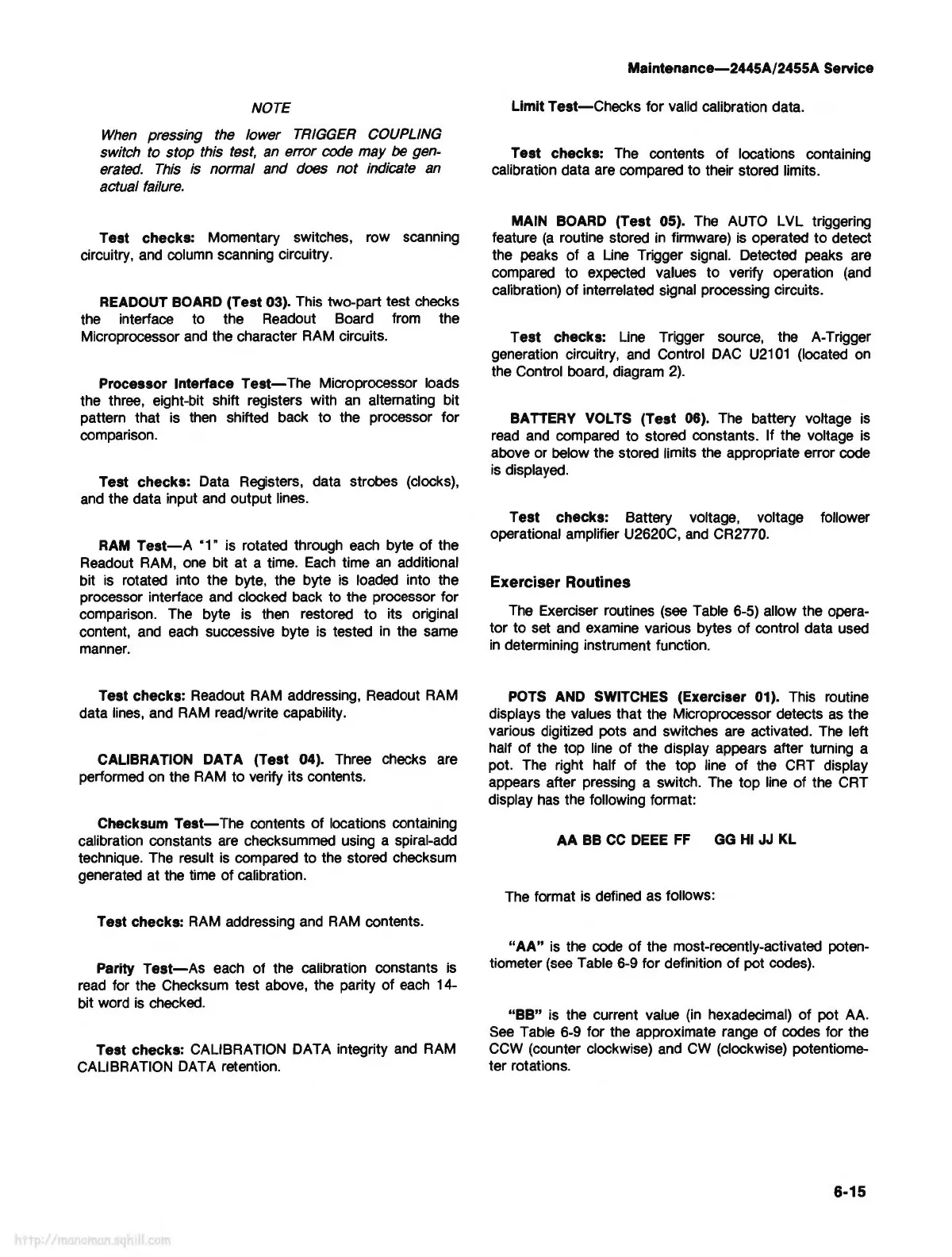

NOTE
When
pressing the lower
TRIGGER
COUPLING
switch to stop this test,
an
effor code may be gen-
erated.
This
is
normal and does not indicate
an
actual
failure.
Test checks: Momentary switches, row scanning
circuitry,
and
column scanning circuitry.
READOUT
BOARD
(Test 03). This two-part test checks
the interface to the Readout Board from the
Microprocessor
and
the character
RAM
circuits.
Processor Interface
Test-
The
Microprocessor loads
the three, eight-bit shift registers with
an
alternating bit
pattern that
is
then
shifted back to the processor for
comparison.
Test checks: Data Registers, data strobes (clocks),
and
the data input
and
output
lines.
RAM
Test-A
·1
• is rotated through
each
byte of the
Readout RAM,
one
bit at a time.
Each
time
an
additional
bit is rotated into the byte, the byte is loaded into the
processor interface
and
clocked back to the processor for
comparison. The byte is
then
restored to its original
content,
and
each
successive byte is tested
in
the
same
manner.
Test checks: Readout
RAM
addressing, Readout
RAM
data
lines,
and
RAM
read/write capability.
CALIBRATION DATA (Test 04).
Three
checks are
performed
on
the
RAM
to verify its contents.
Checksum
Test-The
contents of locations containing
calibration constants
are
checksummed using a spiral-add
technique.
The
result
is
compared to the stored checksum
generated at the
time
of calibration.
Test checks:
RAM
addressing
and
RAM
contents.
Parity
Test-As
each
of the calibration constants
is
read
for the Checksum test above, the parity of
each
14-
bit word
is
checked.
Test checks: CALIBRATION DATA integrity
and
RAM
CALIBRATION DATA retention.
Maintenance-2445A/2455A Service
Limit
Test-Checks
for valid calibration data.
Test checks:
The
contents of locations containing
calibration data are compared to their stored limits.
MAIN
BOARD
(Test 05). The
AUTO
LVL triggering
feature
(a
routine stored
in
firmware)
is
operated to detect
the peaks of a
Line
Trigger signal. Detected peaks are
compared to expected values to verify operation
(and
calibration) of interrelated signal processing circuits.
Test checks:
Line
Trigger source, the A-Trigger
generation circuitry,
and
Control
DAC
U2101
(located
on
the Control board, diagram
2).
BATTERY
VOLTS
(Test 06).
The
battery voltage
is
read
and
compared to stored constants. If the voltage
is
above or below the stored limits the appropriate error code
is
displayed.
Test checks: Battery voltage, voltage follower
operational amplifier U2620C,
and
CR2770.
Exerciser Routines
The
Exerciser routines
(see
Table 6-5) allow the opera-
tor to set
and
examine various bytes of control data used
in
determining instrument function.
POTS
AND
SWITCHES (Exerciser 01). This routine
displays
the
values that the Microprocessor detects
as
the
various digitized pots
and
switches
are
activated.
The
left
half of the top
line
of the display appears after turning a
pot.
The
right half of the top
line
of the CRT display
appears after pressing a switch. The top
line
of the CRT
display
has
the following format:
AA
BB
CC
DEEE
FF
GG
HI
JJ
KL
The format
is
defined
as
follows:
"AA"
is
the
code
of the most-recently-activated poten-
tiometer
(see
Table 6-9 for definition of pot
codes).
"BB"
is the current value
(in
hexadecimal) of pot
AA.
See
Table 6-9 for the approximate
range
of codes for the
CCW
(counter clockwise)
and
CW
(clockwise) potentiome-
ter rotations.
6-15
