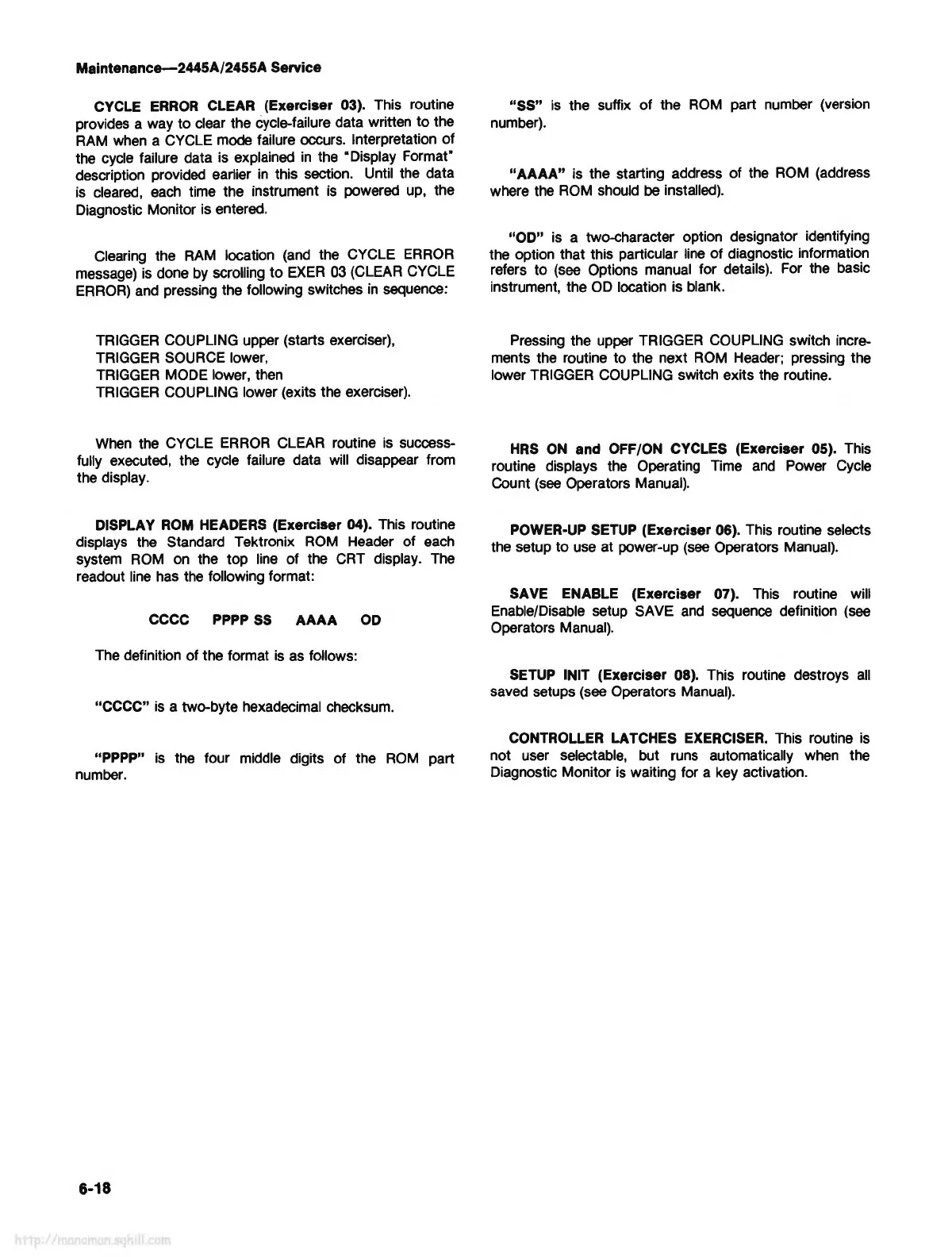

Maintenance-2445A/2455A Service
CYCLE
ERROR
CLEAR (Exerciser 03). This routine
provides a way to clear the cycle-failure data written to the
RAM
when
a CYCLE mode failure occurs. Interpretation of
the cycle failure data is explained
in
the "Display FormatĀ·
description provided earlier
in
this section. Until the data
is
cleared,
each
time the instrument
is
powered
up,
the
Diagnostic Monitor is entered.
Clearing the
RAM
location
(and
the CYCLE
ERROR
message)
is
done
by
scrolling
to
EXER
03
(CLEAR CYCLE
ERROR)
and
pressing the following switches
in
sequence:
TRIGGER
COUPLING upper (starts exerciser),
TRIGGER SOURCE lower,
TRIGGER
MODE lower, then
TRIGGER
COUPLING lower (exits the exerciser).
When
the CYCLE
ERROR
CLEAR routine
is
success-
fully executed, the cycle failure data will disappear from
the display.
DISPLAY
ROM
HEADERS (Exerciser 04). This routine
displays the Standard Tektronix
ROM
Header of each
system
ROM
on
the top
line
of the
CRT
display.
The
readout
line
has the following format:
CCCC
PPPP
SS
AAAA
OD
The definition of the format
is
as
follows:
"CCCC"
is
a two-byte hexadecimal checksum.
"PPPP"
is
the four middle digits of the
ROM
part
number.
6-18
"SS"
is
the suffix of the
ROM
part number (version
number).
"AAAA" is the starting address of the
ROM
(address
where the
ROM
should
be
installed).
"OD" is a two-character option designator identifying
the option that this particular
line
of diagnostic information
refers to
(see
Options manual for details). For the basic
instrument,
the
OD
location is blank.
Pressing the upper TRIGGER COUPLING switch incre-
ments the routine to the next
ROM
Header; pressing the
lower TRIGGER COUPLING switch
exits
the routine.
HRS
ON
and OFF/ON CYCLES (Exerciser 05). This
routine displays the Operating Time
and
Power Cycle
Count
(see
Operators Manual).
POWER-UP
SETUP
(Exerciser 06). This routine selects
the setup to use at power-up
(see
Operators Manual).
SAVE ENABLE (Exerciser 07). This routine will
Enable/Disable setup SAVE
and
sequence definition
(see
Operators Manual).
SETUP
INIT (Exerciser 08). This routine destroys
all
saved setups (see Operators Manual).
CONTROLLER LATCHES EXERCISER. This routine
is
not user selectable, but runs automatically when the
Diagnostic Monitor
is
waiting for a key activation.
