12

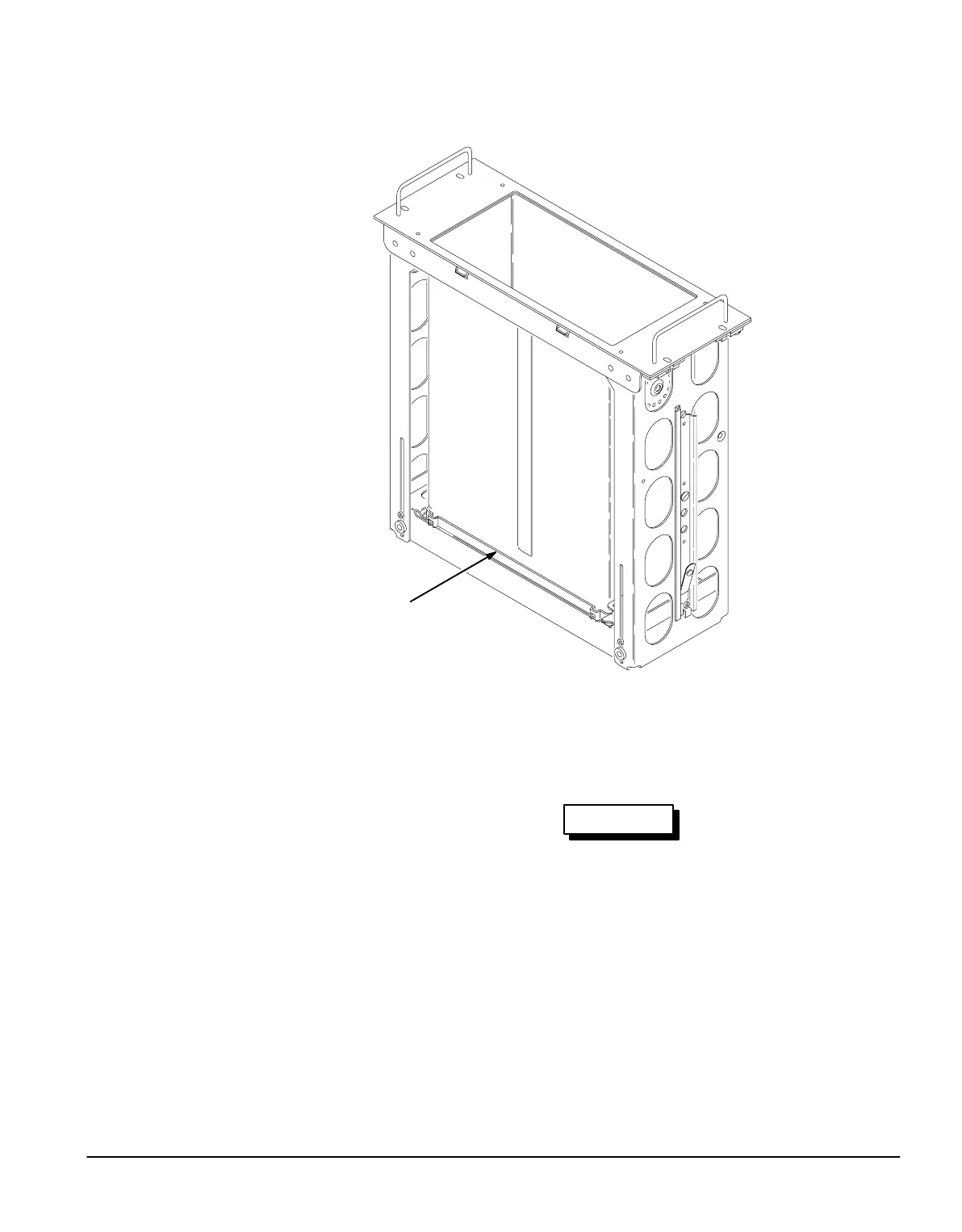

g. Slide the instrument cabinet down so that it properly engages with
the rear cover. See Figure 10.
Ensure that the Cabinet Properly
Engages the Rear Cover
2. Install the instrument into the assembly.
WARNING
a. Slide the instrument into the instrument cabinet, using care not to
pull on any internal instrument wiring.
b. Check that the front decorative trim of the instrument is seated
against the rack adapter front panel.
c. Attach the instrument front support brackets (removed in Step 1d)
using the four screws and four washers. See Figure 11.
To Next Page
