Tektronix TAS 200 User Manual

 !!  !"!
24

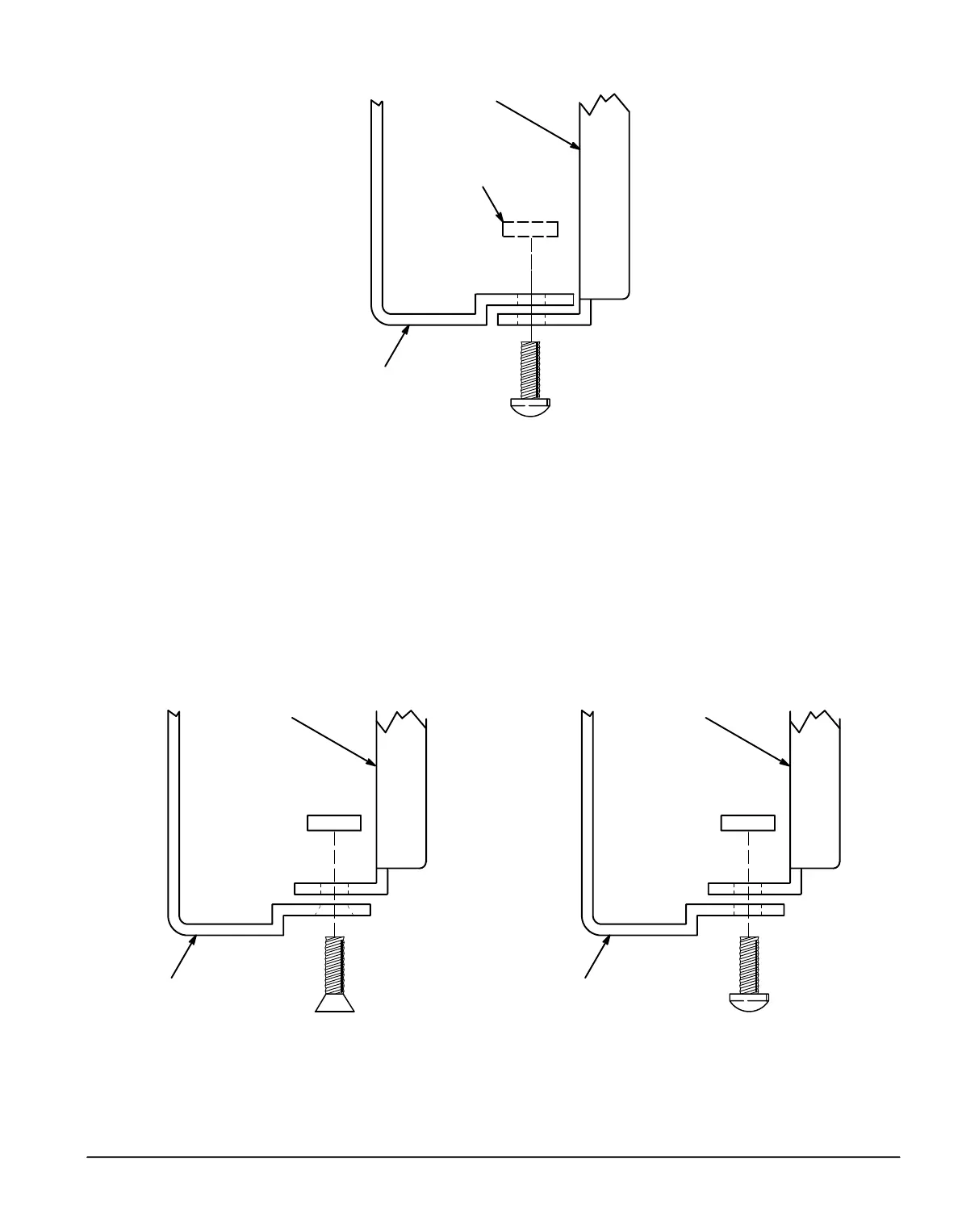

Stationary Section of
Left SlideĆOut Track
Use a Bar Nut if Rails
are not Tapped
10Ć32 Pan Head
Screw
Left Rail of
Equipment Rack
" #!! ! $"!   !  ! "!  
b. To mount the slideĆout tracks behind the equipment rack rails, use
one of the following methods and refer to Figure 20.
H If the equipment rack rails have countersunk mounting holes, use
four flatĆhead 10Ć32 screws and a bar nut.
H If the equipment rack rails do not have countersunk mounting holes,
use four panĆhead 10Ć32 screws and a bar nut.
Left Rail of
Equipment Rack
Without Countersunk
Mounting Holes
Stationary Section of
Left SlideĆOut Track
10Ć32 Pan Head
Screw
Left Rail of
Equipment Rack
With Countersunk
Mounting Holes
Stationary Section of
Left SlideĆOut Track
10Ć32 Flat Head
Screw
" #!! ! $"!   ! "!  
