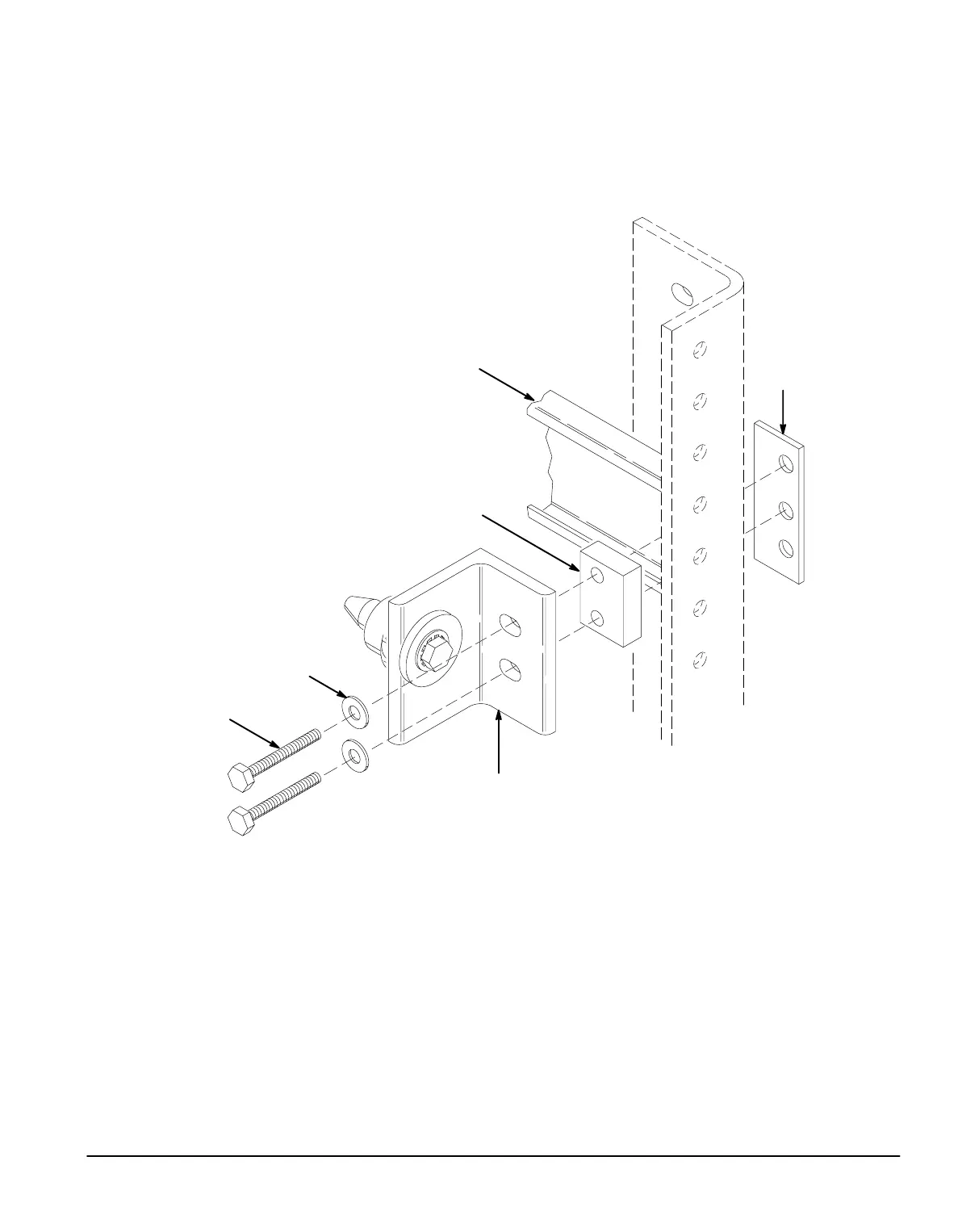

27
"
"
!
Angle
Bracket
Assembly
Spacer
Block
Note
that
the
holes
are
offset
closer
to
the
front
of
the
rack.
Bar
Nut
Rear
of
Stationary
Section
Washer
10Ć32
x
1
1/4"
HHS
Bolt
32
34
Table of Contents
Table of Contents
3
Safety Summary
5
General Information
7
Description
7
Electrical and Environmental Characteristics
7
Clearance Requirements
7
Equipment List
8
Figure 1: Contents of Shipping Box
9
Figure 2: Dimensional Drawing of a Rack Adapted Instrument
10
Attaching the Rack Adapter
11
Preparing the Instrument
11
Figure 3: Removing the Power Cord
11
Figure 4: Removing the Rear Cover
12
Figure 5: Removing the Cabinet
13
Installing the Instrument into the Rack Adapter
14
Figure 6: Removing the Handle and Front Feet
14
Figure 7: Preparing the Rack Adapter for the Instrument
15
Figure 8: Insert the Rear Cover
16
Figure 9: Insert the Instrument Cabinet into Rack Adapter
17
Figure 10: Instrument Cabinet and Rear Cover Installed
18
Figure 11: Install the Front Support Brackets
19
Figure 12: Secure the Instrument to the Rack Adapter
20
Figure 13: Removal of Swivel Retaining Screws
21
Attaching BNC Cables
23
Rear Panel Cabling
24
Figure 14: Installing BNC Connectors
24
Figure 15: Nylon Channels Installed in the Rear Support
25
Front Panel Cabling
26
Figure 16: Front Panel Cabling
26
Installation into the Equipment Rack
27
Attach the Front Ends of the Slide out Tracks
28
Figure 17: Slide out Tracks
28
Figure 18: Locating Mounting Holes for the Stationary Sections
29
Figure 19: Attaching the Slide out Tracks in Front of the Equipment Rack Rails
30
Figure 20: Attaching the Slide out Tracks Behind the Equipment Rack Rails
30
Attach the Rear Ends of the Tracks
31
19 Inch Standard Cabinet Installation
32
Figure 21: Attaching the Support Pin
32
Figure 22: Attach the Angle Brackets to the Slide out Tracks
33
Figure 23: Attach the Support Blocks
34
Figure 24: Mating the Support Pin with the Adapted Instrument
35
Figure 25: Adding the Spacer to the Rear Support
36
14 To 26 Inch Cabinet Installation
37
Figure 26: Attaching Extension Brackets
38
Track Alignment
39
Figure 27: Track Alignment
39
Final Installation
40
Figure 28: Secure the Rack Adapter to the Equipment Rack
40
Replaceable Parts
41
Parts Ordering Information
41
Using the Replaceable Parts List
42
Figure 29: Exploded View of Rack Adapter
45
