c. Tighten the rear mounting bolts; then, pull the instrument partially

out of the rack.

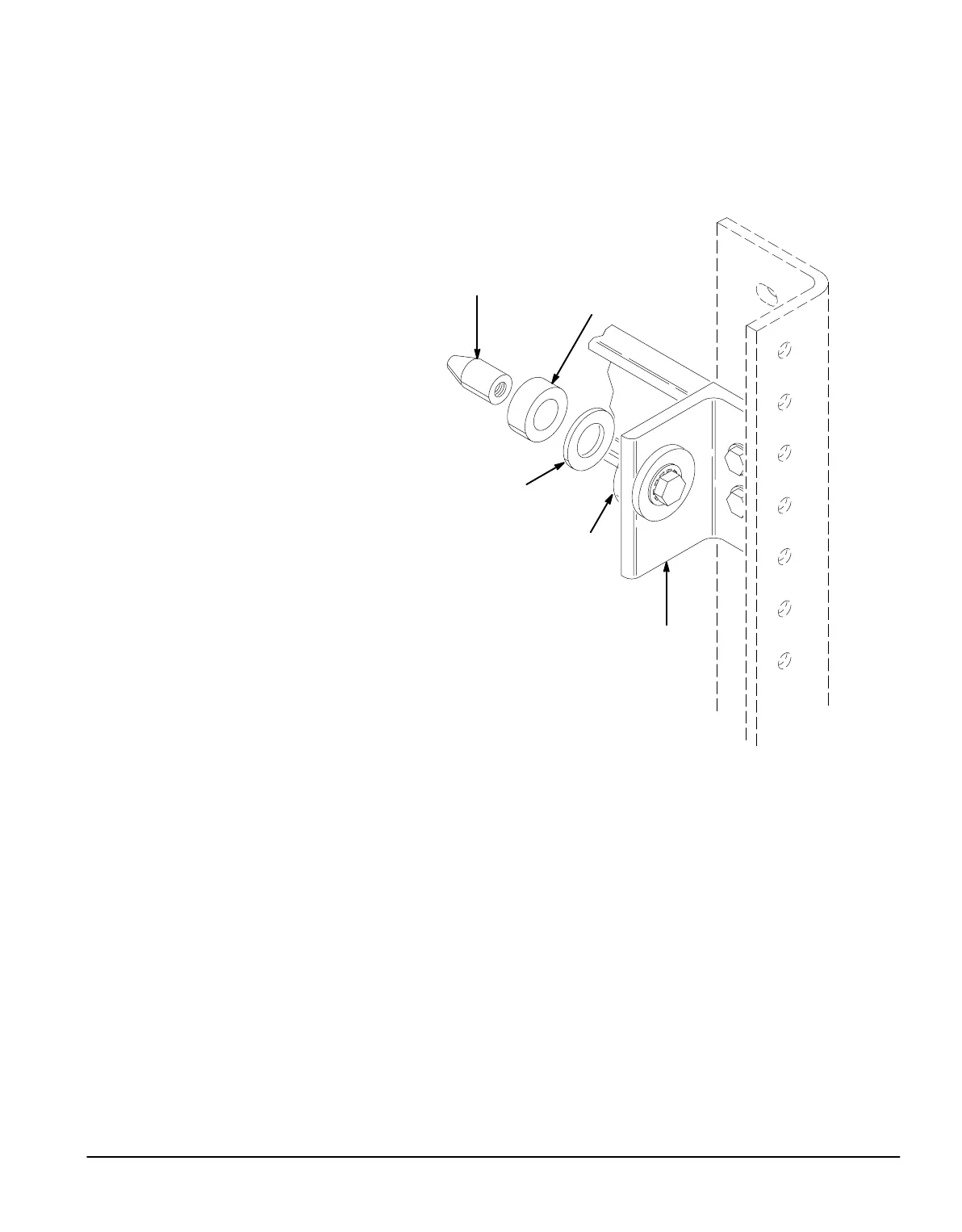

d. Remove the neoprene washers from the support pins, install the

metal spacers on the support pins; then, reĆinstall the neoprene

washers. See Figure 25.

Support Pin

Neoprene Support

Washer

Add Metal

Spacer

Metal Washer

Angle Bracket

       

Table of Contents3
Safety Summary5
General Information7
Description7
Electrical and Environmental Characteristics7
Clearance Requirements7
Equipment List8
Figure 1: Contents of Shipping Box9
Figure 2: Dimensional Drawing of a Rack Adapted Instrument10
Attaching the Rack Adapter11
Preparing the Instrument11
Figure 3: Removing the Power Cord11
Figure 4: Removing the Rear Cover12
Figure 5: Removing the Cabinet13
Installing the Instrument into the Rack Adapter14
Figure 6: Removing the Handle and Front Feet14
Figure 7: Preparing the Rack Adapter for the Instrument15
Figure 8: Insert the Rear Cover16
Figure 9: Insert the Instrument Cabinet into Rack Adapter17
Figure 10: Instrument Cabinet and Rear Cover Installed18
Figure 11: Install the Front Support Brackets19
Figure 12: Secure the Instrument to the Rack Adapter20
Figure 13: Removal of Swivel Retaining Screws21
Attaching BNC Cables23
Rear Panel Cabling24
Figure 14: Installing BNC Connectors24
Figure 15: Nylon Channels Installed in the Rear Support25
Front Panel Cabling26
Figure 16: Front Panel Cabling26
Installation into the Equipment Rack27
Attach the Front Ends of the Slide out Tracks28
Figure 17: Slide out Tracks28
Figure 18: Locating Mounting Holes for the Stationary Sections29
Figure 19: Attaching the Slide out Tracks in Front of the Equipment Rack Rails30
Figure 20: Attaching the Slide out Tracks Behind the Equipment Rack Rails30
Attach the Rear Ends of the Tracks31
19 Inch Standard Cabinet Installation32
Figure 21: Attaching the Support Pin32
Figure 22: Attach the Angle Brackets to the Slide out Tracks33
Figure 23: Attach the Support Blocks34
Figure 24: Mating the Support Pin with the Adapted Instrument35
Figure 25: Adding the Spacer to the Rear Support36
14 To 26 Inch Cabinet Installation37
Figure 26: Attaching Extension Brackets38
Track Alignment39
Figure 27: Track Alignment39
Final Installation40
Figure 28: Secure the Rack Adapter to the Equipment Rack40
Replaceable Parts41
Parts Ordering Information41
Using the Replaceable Parts List42
Figure 29: Exploded View of Rack Adapter45
