TDS2CMA Communications Module
138
TDS1000/2000-Series Digital Oscilloscope User Manual

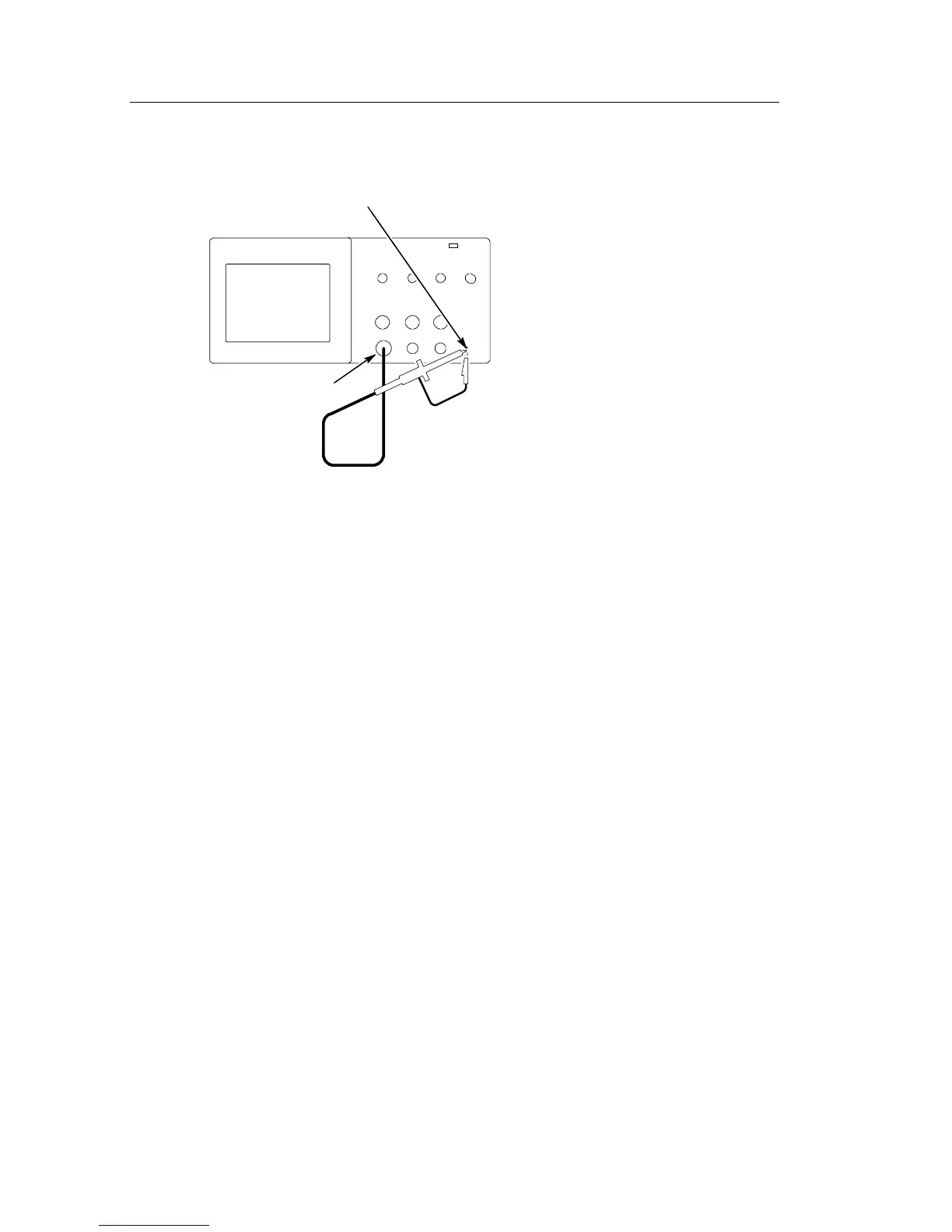

CH 1
PROBE COMP
6. On the oscilloscope, push UTILITY " Options " RS-232.
7. Check that the menu settings match those listed in the table on
page 137.
8. From your PC terminal program, type ID?, then press the Re turn
or Enter key to send the command. The oscilloscope sends back
its identification string, which should look similar to the
following:
ID TEK/TDS 1002,CF:91.1CT,FV:V1.09 TDS2CMA:CMV:V1.04
If you do not get a ny response, refer to the troubleshooting ste ps
that start on page 139.
9. Send the command FACtory to reset the oscilloscope to factory
settings (defaults).

Tektronix TDS2024 Specifications

General

Channels	4
Bandwidth	200 MHz
Sample Rate	2 GS/s
Record Length	2.5k points
Vertical Resolution	8 bits
Vertical Sensitivity	2 mV/div to 5 V/div
Timebase Range	5 ns/div to 50 s/div
Display Resolution	320 x 240 pixels
Math Functions	Add, Subtract, Multiply, Divide, FFT
Input Coupling	AC, DC, GND
Trigger Modes	Auto, Normal, Single
Trigger Types	Edge, Video, Pulse
Connectivity	USB
Input Impedance	1 MΩ
Maximum Input Voltage	300 V
Interface	USB
Power Supply	100 to 240 V
Dimensions	326 mm x 158 mm x 124 mm
