* Based on normal use of the siren (e.g. 1 alarm per month with strobe
and 1 minute alarm cycle, and 8 squawks per day at an average of
25°C). If the use is more frequent or the alarm cycle is set for more
than 1 minute the battery life may be reduced.
Using optional power supply with adapter 12V/1A will extend the
battery life.

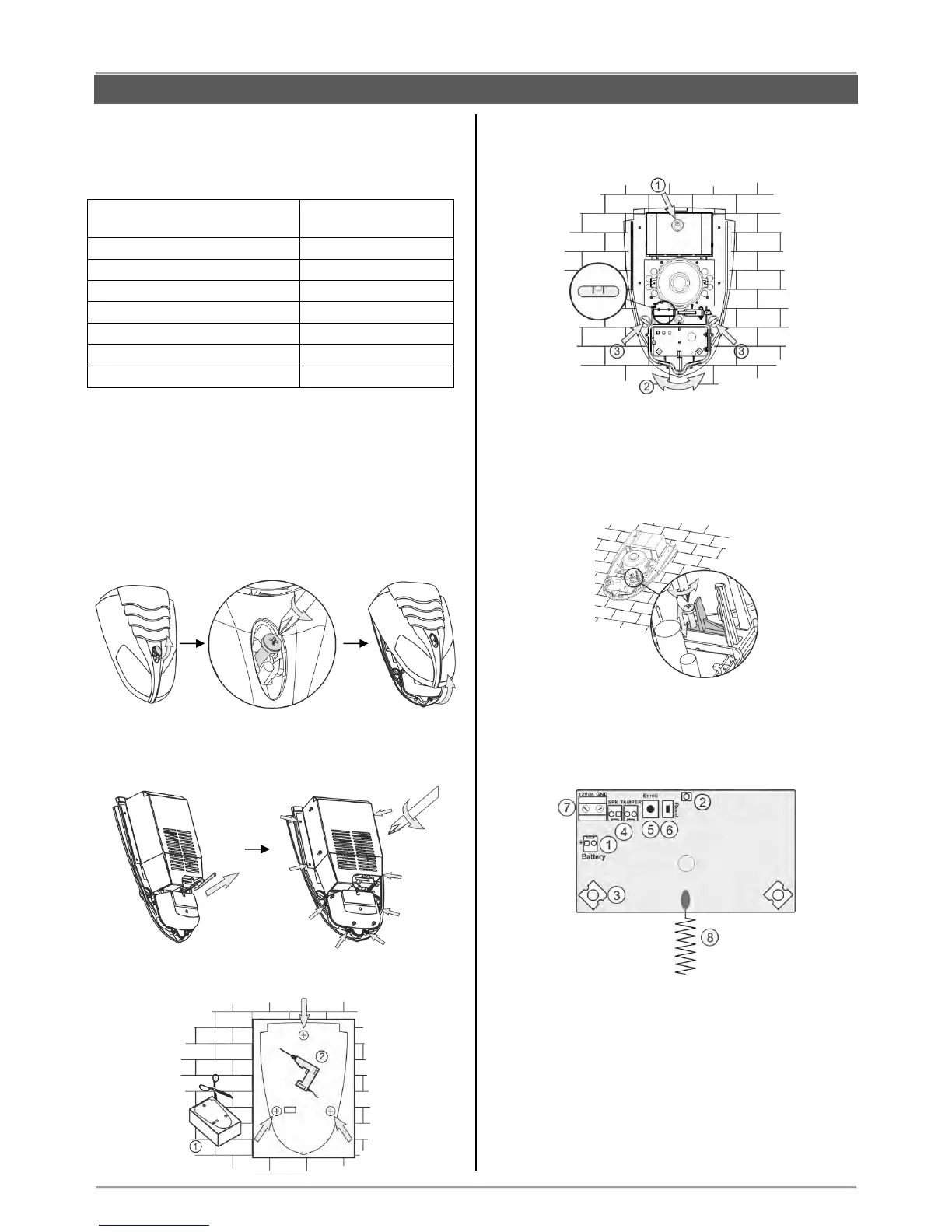

Mounting
1. Use a small flat screwdriver to lift up and remove the
orange plastic cap. Undo the screw fixing the plastic
cover to the base. Lift up the siren cover and remove it.
2. Remove the light pipe, undo the screws and remove
one by one the metal and the plastic covers protecting
the battery and the electronic parts.
3. Use the drilling template on the back side of the
packing box to mark and drill the holes for installation.
4. Mount the siren base as first fix the screw for the
main installation hole, then lever the siren, and at the
end fix the supporting screws on the both sides.
5. Set the tamper position as use the screw on it –
regulate the position so that the screw end to contact
with the installation surface, and the contact plate to be
pressed when the cover of the siren is closed (the plate
must be horizontal and when pressed with siren cover
to close the tamper button under it – a click is heard).
6. Enroll the siren to the panel configuration as follow
the steps described at item 6.4 in “System
Configuration” section.
Description of the PCB elements
1 – Terminal for connecting the battery.
2 – LED for siren status.
3 – LED signalization in Alarm mode.
4 - Terminals SPK (SPEAKER) and TAMPER for
connecting the sounder and tamper button wires.
5 – ENROLL Button. Use it to enroll the siren to the
panel.
6 – RST (RESET) Button. Use it to reset the detector.
7 – Terminals +12VDC and GND for optional power
supply with adapter 12VDC/ 1A – see also item 10.4.
8 - Antenna.
