BRAVO – Wireless Alarm Control Panel
18

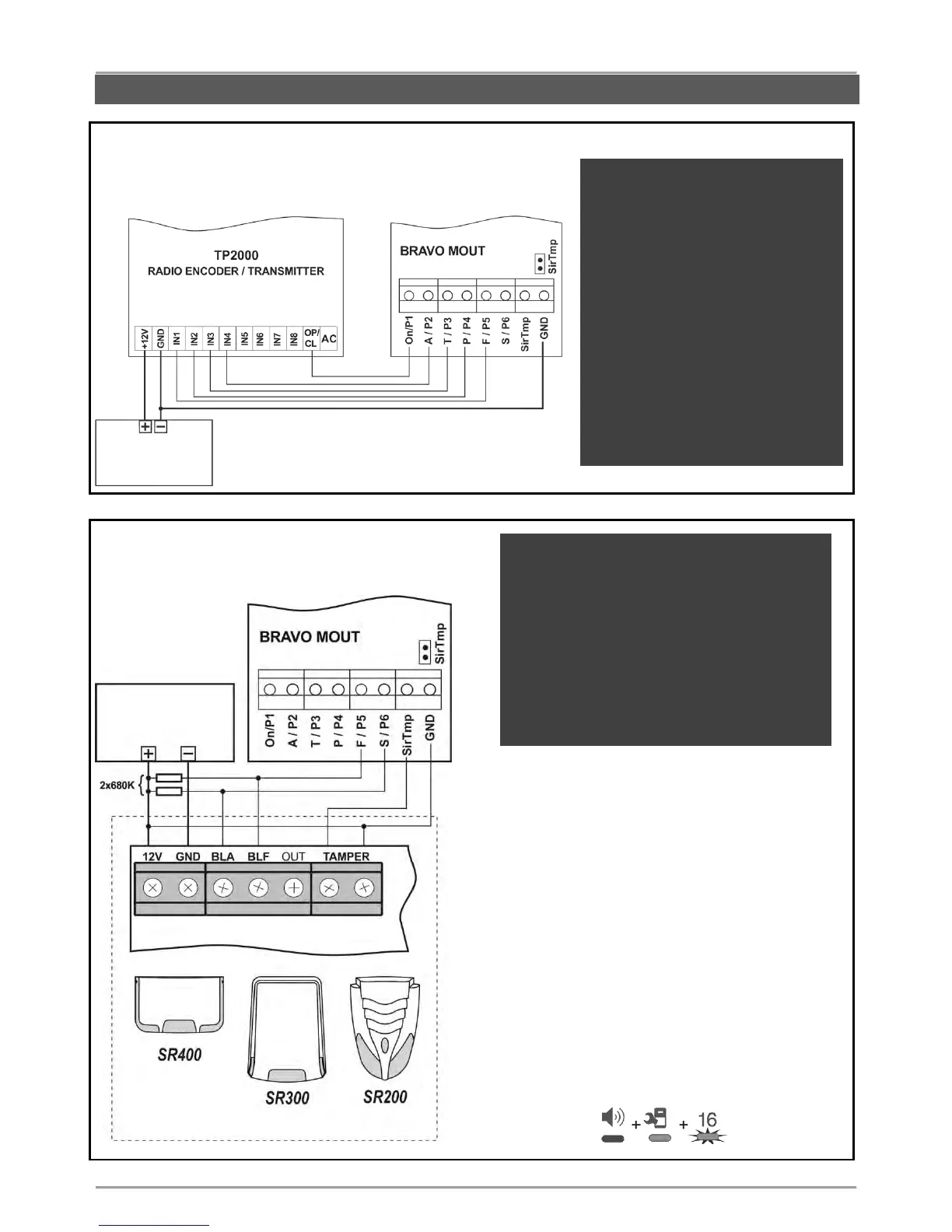

Application Example 1 (MOUT Mode)
Connection between BRAVO MOUT and radio
transmitter TP2000 for sending messages for events to
monitoring station.
Application Example 2 (MOUT Mode)
Connection diagram between BRAVO MOUT and wired
outdoor siren.
ATTENTION:
When the BRAVO MOUT is mounted
on Slot 1 and “Alternative”
communication type is set, the panel
will send messages only through the
main channel and never through the
backup channel, regardless of that
whether the transmitted signal is
received from the monitoring station or
not.
When the BRAVO MOUT is mounted
on Slot 2 and “Alternative”
communication type is set, the panel
will send messages first through the
main channel and in case of failure –
through the backup channel.
External power
supply unit
12V DC
Compatible outdoor sirens
Note:
The jumper SirTmp must be removed in case
of connection of wired siren to BRAVO MOUT
module, for announcing of the following
technical troubles:
- Open tamper of the wired siren;
- Broken line between wired siren and BRAVO
MOUT module.
When the jumper SirTmp is set, the BRAVO
panel will not follow the status of the connected
wired siren.
Indication of BRAVO panel in case of
connection of wired siren to BRAVO MOUT
One wired siren can be connected to BRAVO
MOUT module. In programming mode and selected
“Sounder Group” the connected wired siren is
shown as device in position 16*.
* Note: The indication will be active directly after the
connection of BRAVO MOUT module to the panel’s PCB
and set MOUT operation mode.
For correct operation of the siren it is obligatory to
connect 2x680K resistors as shown on the
connection diagram.
The wired siren can be bypassed like all other
wireless devices in the system.
In case of technical trouble with the wired siren
(tamper signal or broken line between the siren and
BRAVO MOUT module) the indication in Technical
troubles review mode is:
External power
supply unit
12V DC
