5.5. Guidelines on optimal
WCAP positioning and
direction of antennas
5.5.1. Positioning the Confidea
Wireless Access Point
Below you can find how to select a correct
positioning of the WCAP.

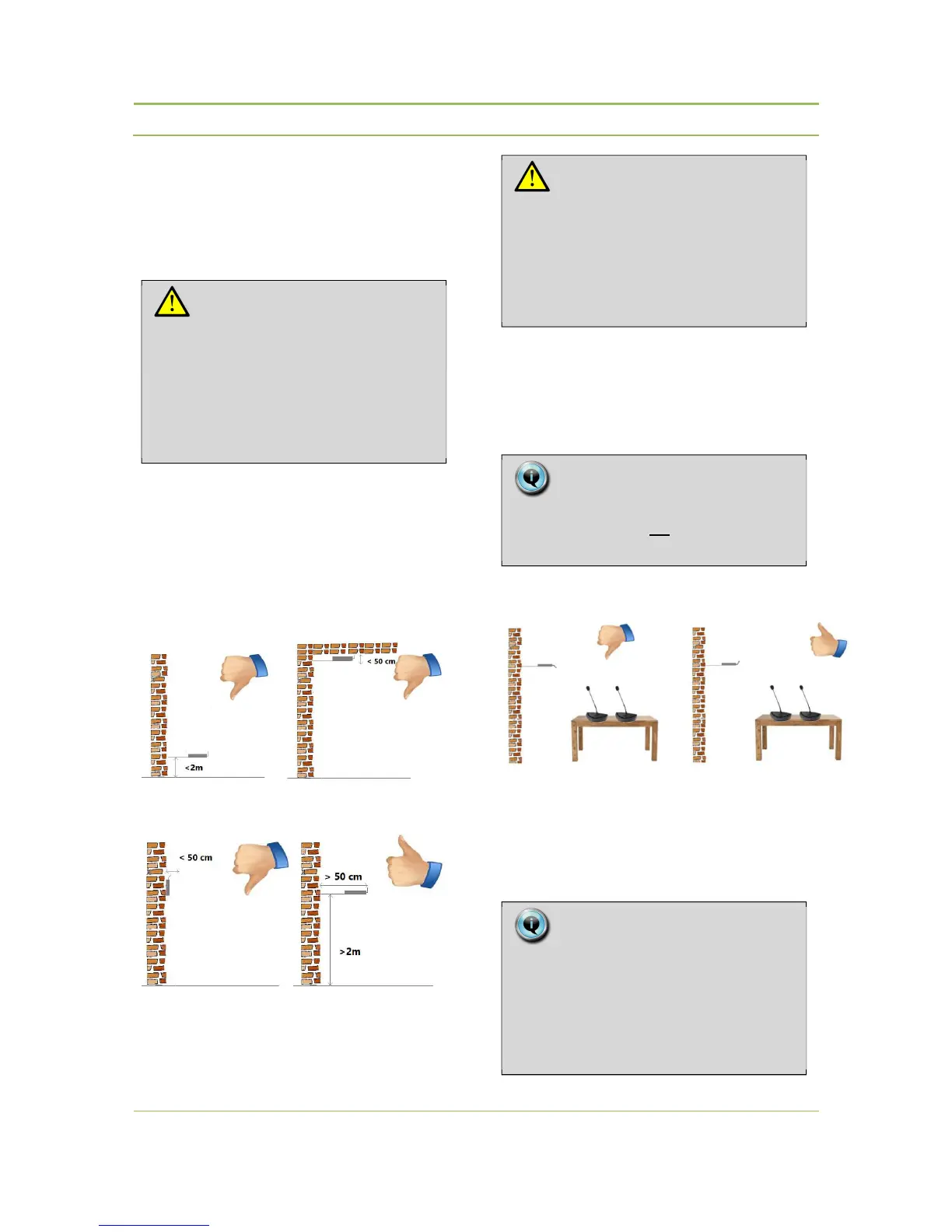

Figure 5.1 WCAP position hight
Figure 5.2 WCAP position to wall
5.5.2. Optimizing the position the
antennas
Figure 5.3 WCAP position antennas
for detailed view see of optimal antenna positioning
see Figure 5.4 WCAP position antennas
Attention:
Do not place the WCAP behind
obstacles like walls , cabinets, panels,
projection screen, glass screens etc… ,
as they significantly reduce RF signal
strength and quality
Note :
When the antennas of the WCAP are
positioned very close to a wall or ceiling ,
this may result in absorption of the RF
signal , which can decrease RF signal
quality.
Note :
It is important not to point the
antennas directly to the units
Note :
Choosing the correct angle of the
antennas in relation to the position of
the delegate units is beneficial to a
good overall RF link quality between
WCAP and delegate units
