10.3. Connections and
Controls

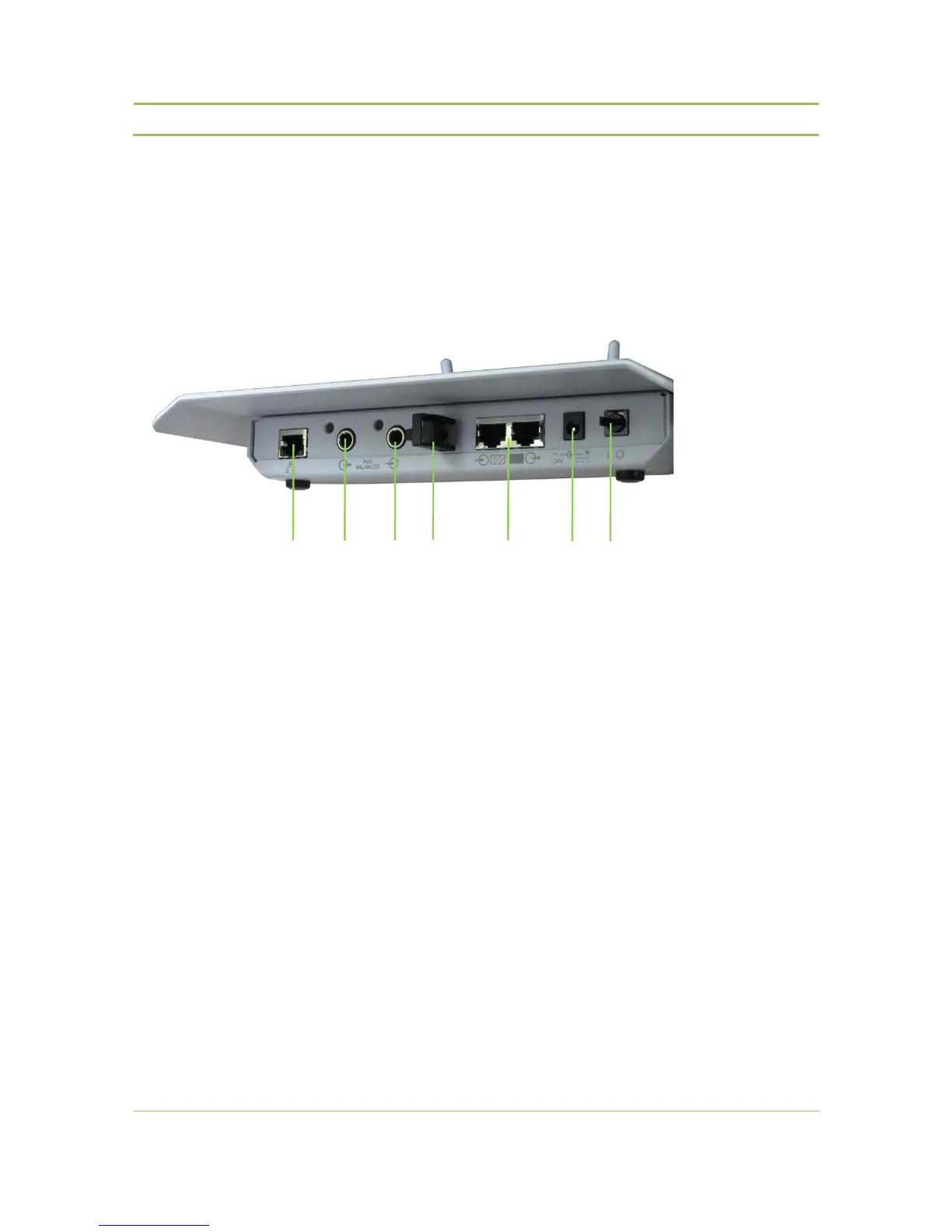

Figure 10.4: WCAP connections
1.
Power Switch
The WCAP can be switched on/off with the
power switch at the back of the WCAP.
2.
Power Supply
The power supply for the wireless delegate units
is provided by batterypacks (see also chapter 8)
The power supply of the WCAP is provided by a
230VAC/24VDC adaptor
The WCAP can also be powered by a central unit
CPU5500(48VDC) or by connecting it to a
SPL5525. In both cases no separate power
supply is needed .
3.
Digital Bus Connection
The Connection with the Televic digital
conference bus is done through RJ45-
connectors at the back of the WCAP.
Connections can be made to Confidea CU or
SPL5525.
4.
Cable retention clip
The cable retention clip is used to safegard the
cable of the power adaptor
5.
L
AN port
Through the LAN connector at the back of the
WCAP, a PC can be connected using a standard
cat. 5e FTP network cable.
6.
Status LEDS
The status LEDs give information on selected
mode, RF link quality (Signal/Noise Ratio) and
delegate unit detection
(see fig.10.5 , table 10.1 …3 for hardware
version 0.01 and table 10.4…6 for hardware
version 0.02)
7. Aux input
Auxiliary balanced input connector
8. Aux output
Auxiliary balanced output connector
