17. Connected to
CE2500, Confidea
CU or CPU5500
As the Confidea wireless system is an addition to the
Televic product family it is also possible to combine the
Confidea wireless system with the existing /Confidea CU
and TCS5500 system (refer to
Figure 17.3: Televic Family concept)
This family approach makes it possible to create a
conference system fitting every customer needs.
In situations where every now and then an extension
of the fixed conference system is required, adding
some wireless units can reduce the setup costs
drastically.
Depending on the demands of a project the central
control equipment of the TCS2500 , Confidea CU or
TCS5500 does the job.
The Confidea access point (WCAP) can be directly
connected to one of the digital output busses of the
TCS2500 central control unit or Confidea CU
Connecting the Confidea access point to the central
control equipment of the TCS5500 requires an
additional splitter unit (SPL5525); Confidea Access
Point is then connected to one of the “P…” ports of
the splitter.

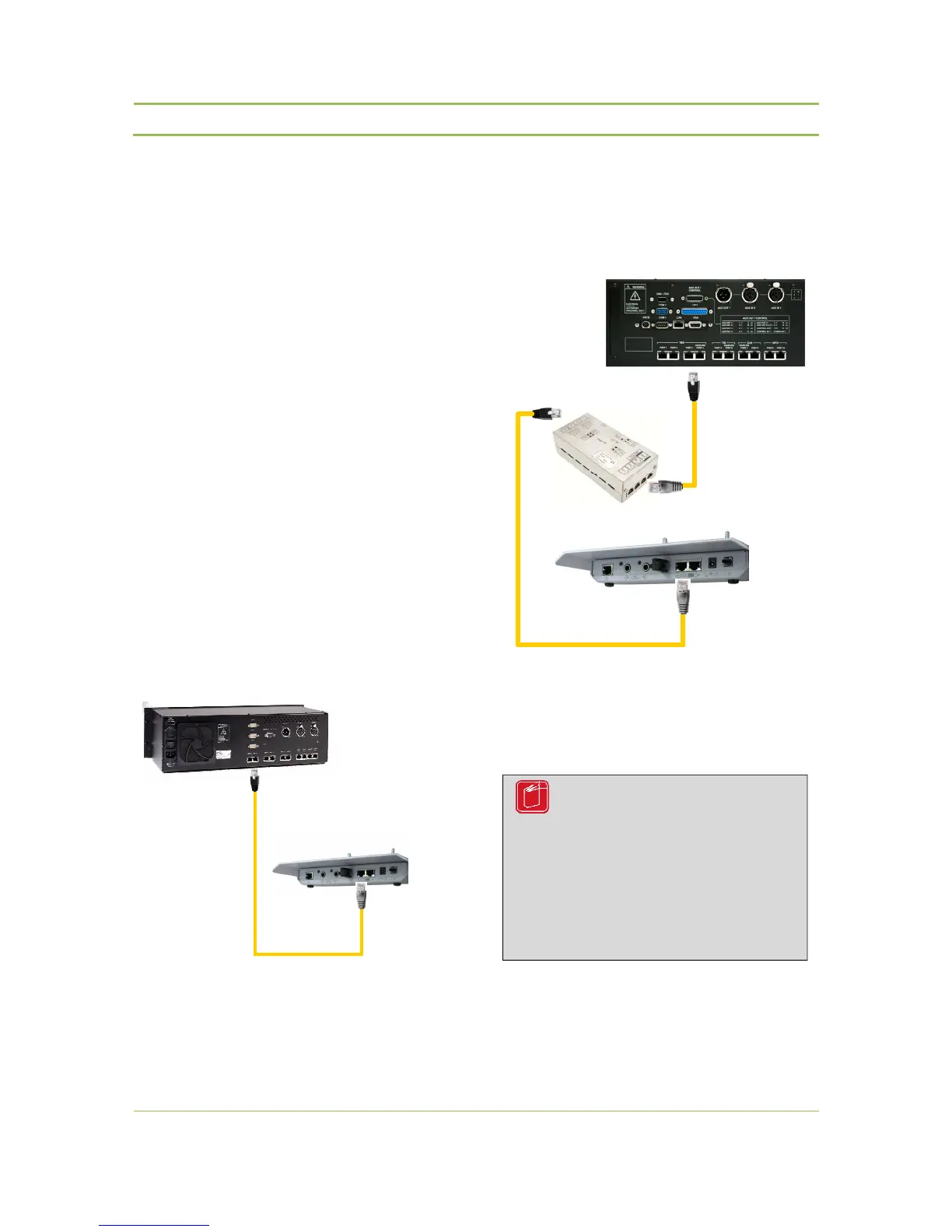

Figure 17.1WCAP connected to CPU5500
In the following section three possible applications
are described. This will help to define the correct
system architecture for a given project.
Figure 17.2 WCAP connected to Confidea CU
Reference:
When using Confidea wireless in
conjunction with other Televic
conference systems and PC control
software, please refer to the User
Manual of those systems for more
information.
