22

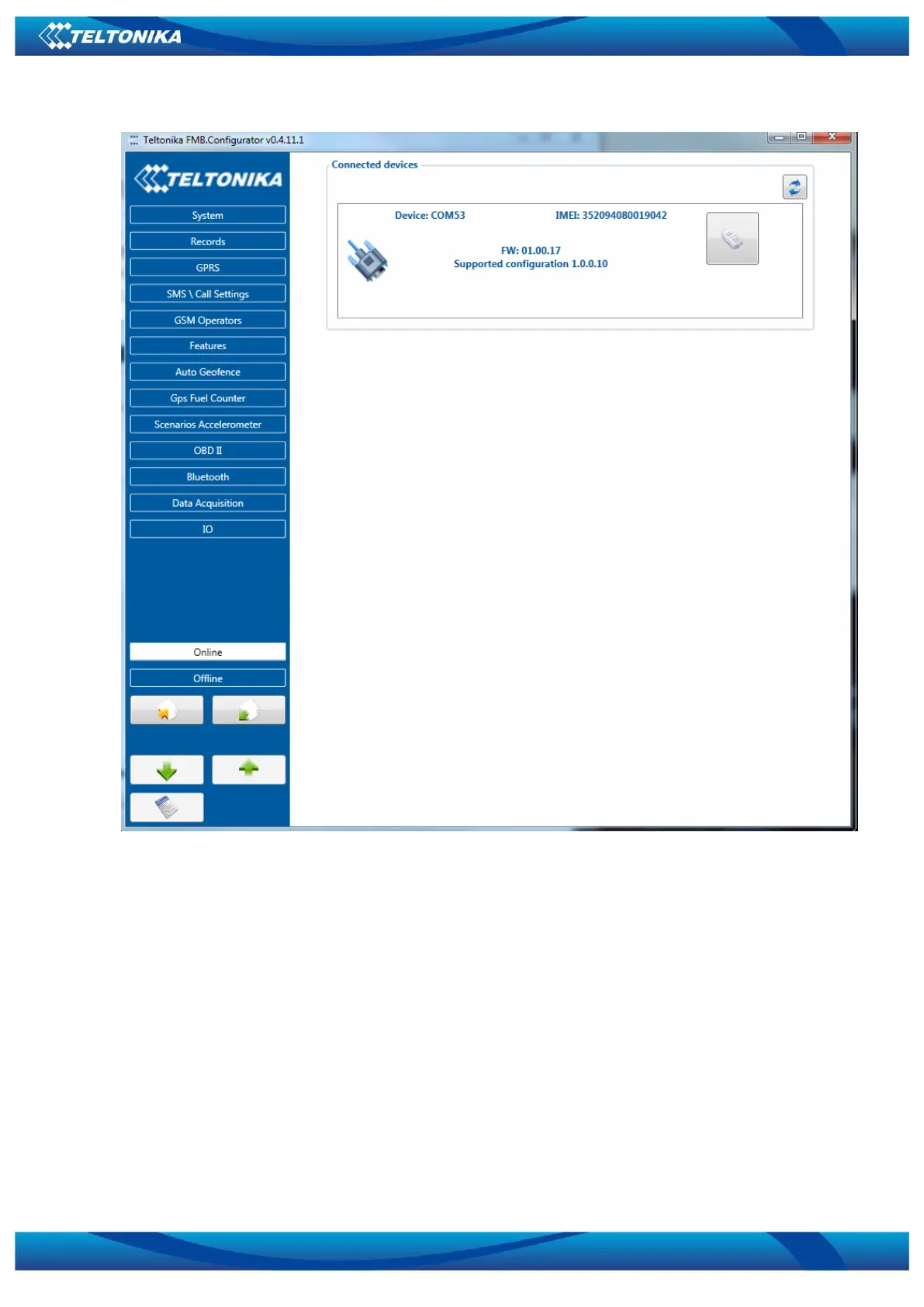

Figure 8 Configurator main window
Main Buttons description:
‘Scan’ – scans for available devices.
‘Connect to device’ – connects device.
‘Store configuration to file’ – saves configuration.
‘Read configuration from file’ – loads saved configuration.
‘Read configuration’ – loads configuration from device.
‘Store configuration’ – saves configuration to device.
5.1.1 System settings
System settings 9 configurable parameters:
1. Sleep settings, where user can choose sleep mode;
2. Ignition source, where user can choose between power voltage, digital input 1 and
accelerometer ignition sources
