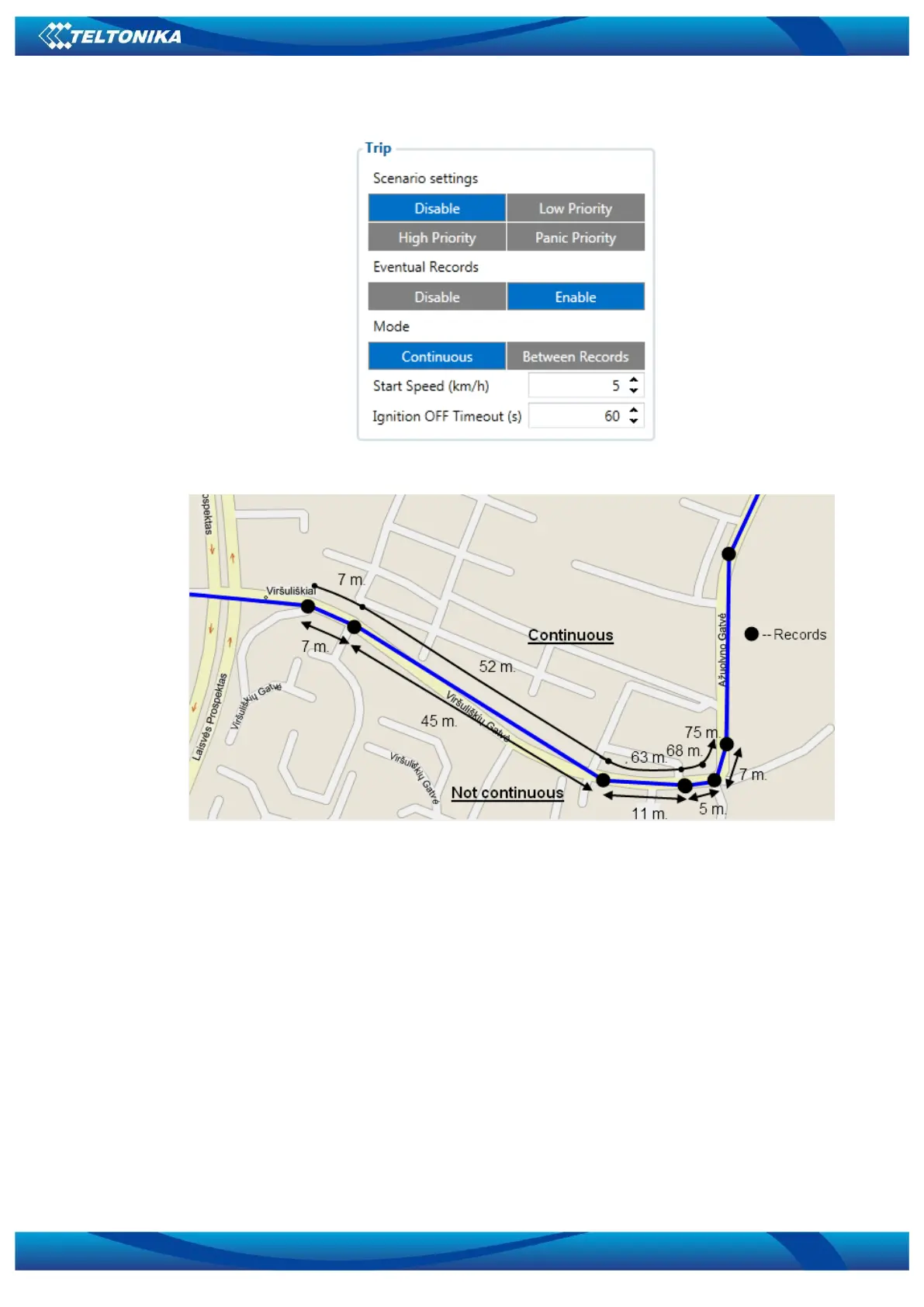

Figure 17 Trip configuration
Figure 18 Trip continuous distance counting parameter example
5.1.10 AutoGeofencing settings
AutoGeofence – the last known position after movement = off. If your car’s being
taken away – you can be notified. The shape and size of the geofence zones are
parameters. It is possibility to state whether entering in or out of the geofence triggers an
asynchronous message.
AutoGeofencing option can be configured by following parameters visible in figure 19
below.
Activation TMO – Time period before Geofence is activated after vehicle stops.
Deactivate By:
Ignition – If ignition becomes high it will disable AutoGeofenze Zone;
Power Voltage – if power voltage enters entered value it will disable AutoGeofenze
Zone.
Digital input 1 – if digital input is triggered it will disable AutoGeofenze Zone.
