30

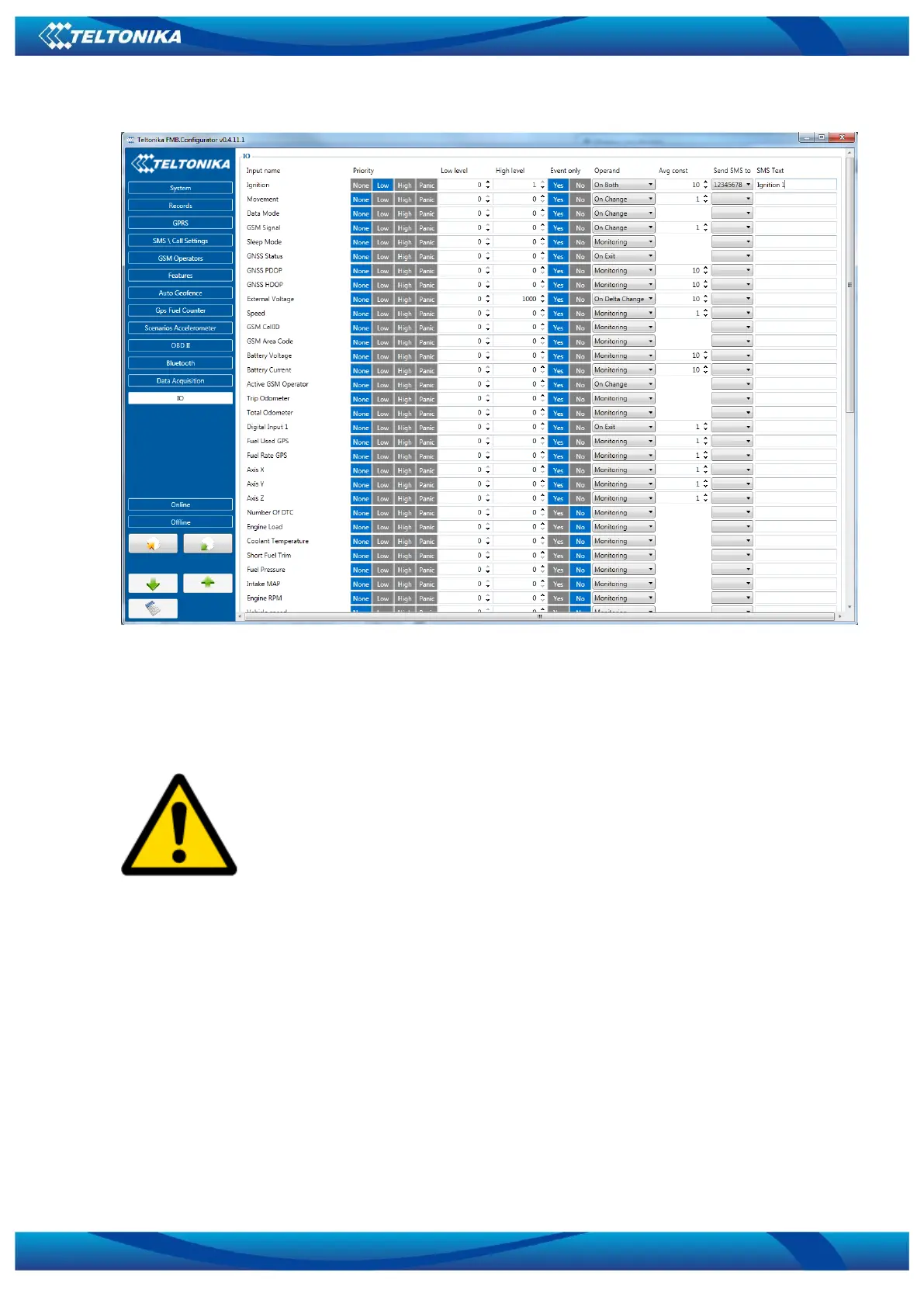

Figure 21 Configured Ignition SMS event
The SMS Text field can be altered and any text can be entered. Maximum message length is
90 symbols (numbers, letters and symbols in ASCII, except for comma “,”).
ATTENTION!
If FMB010 is in Deep Sleep mode and SMS event occurs with LOW priority
(which does not wake up FMB010), then the device does not send the message.
It is saved in device memory until it wakes up from Deep Sleep mode and GSM
modem starts working normally. After it wakes up, all the messages that are
saved in memory will be sent, but keep in mind that only 10 messages can be
saved in memory – all other messages will not be saved, until there is room in
device memory.
5.1.7 GSM settings, Operator list
Operators list – FMB010 can work in different modes (use different settings) according to
the operator list defined. Operator list is used for Data Acquisition Mode switching (see chapter
5.1.8 Data Acquisition Mode settings for more details). Modes are changed based on GSM
operator FMB010 is connected to.
