Tenda O1 User Manual

99

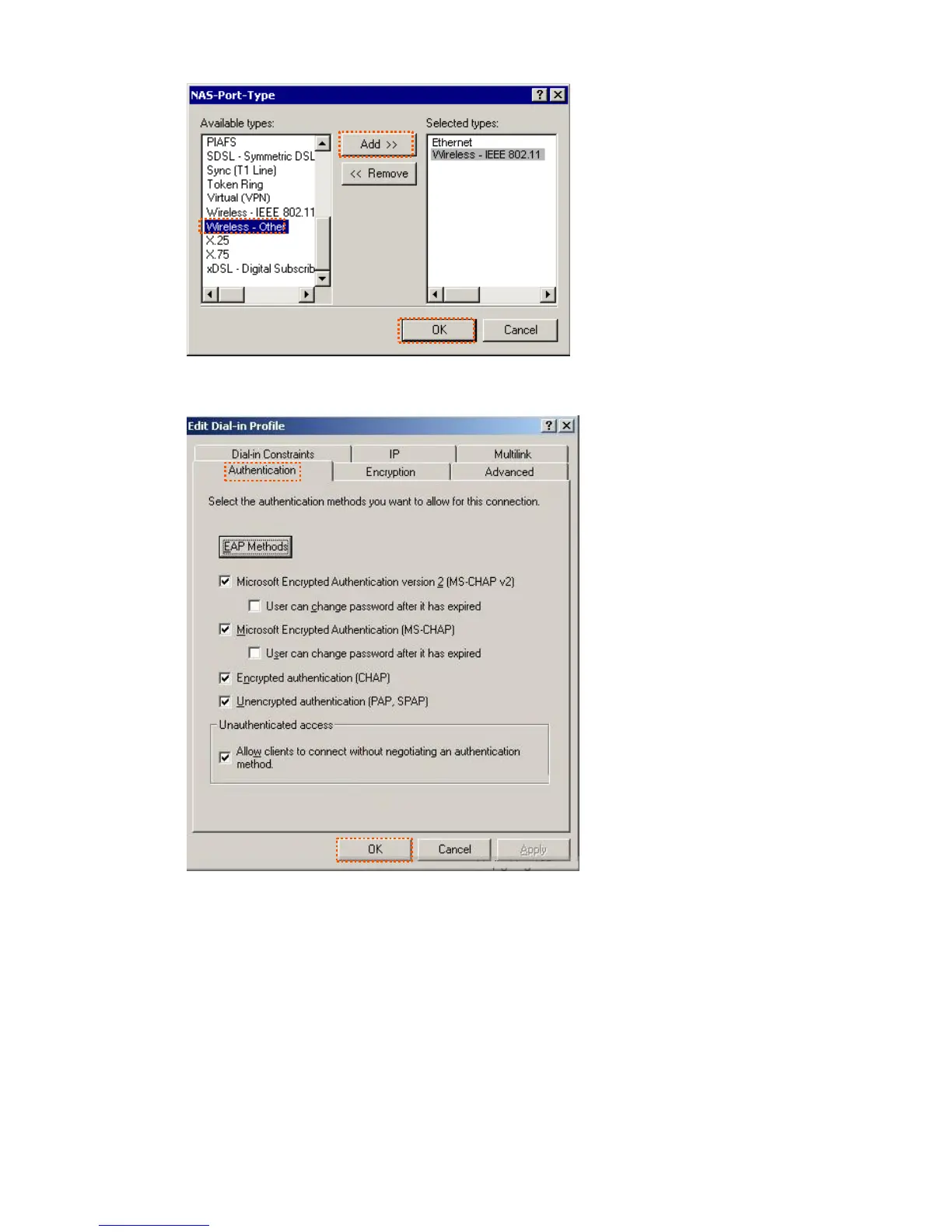

13. Click Edit Profile, click the Authentication tab, configure settings as shown in the following figure, and
click OK.
14. When a message appears, click No.
Step 3 Configure user information. Create a user and add the user to group 802.1x.
----End

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
