8.4 Port Forwarding (Only for O3)
This function is available only when the CPE works in WISP or Router mode.
8.4.1 Overview
If computers are connected to the router to form a LAN and access the internet through the router, internet
users cannot access the hosts on the LAN. Therefore, the servers, such as web servers, email servers, and FTP
servers, on the LAN are inaccessible to internet users. To enable internet users to access a LAN server, enable the
port forwarding function of the router, and map one service port to the IP address of the LAN server. This
enables the router to forward the requests arriving at the port from the internet to the LAN server, and avoid the
attacks from the WAN.

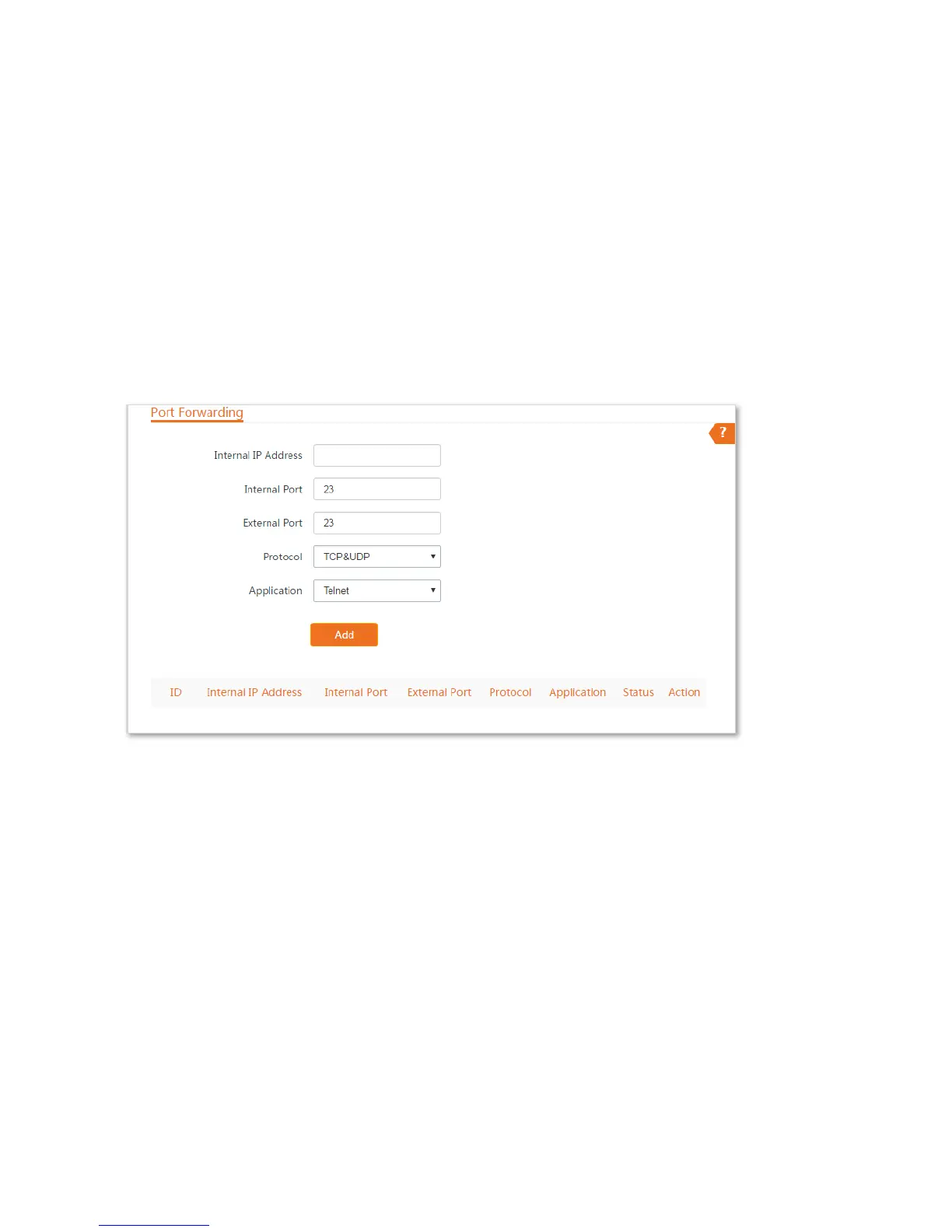

Choose Advanced > Port Forwarding to enter the page.
8.4.2 Configuring Port Forwarding
Configuration Procedure
Step 1 Choose Advanced > Port Forwarding.
Step 2 Set the related parameters.
Step 3 Click Add.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
