Examples of Configuring DMZ Host
Networking Requirement
The CPE is used in a company to deploy its network, and it is set to Router mode.
Requirement: The administrator on business can visit the resources on web server in LAN.
You can use DMZ Host function to solve the problem.
Assumption:
The WAN IP address of the CPE is 202.105.106.55.
The information of the internal web server is shown as follows:
IP Address: 192.168.2.100
Service Port of the Web Server: 80

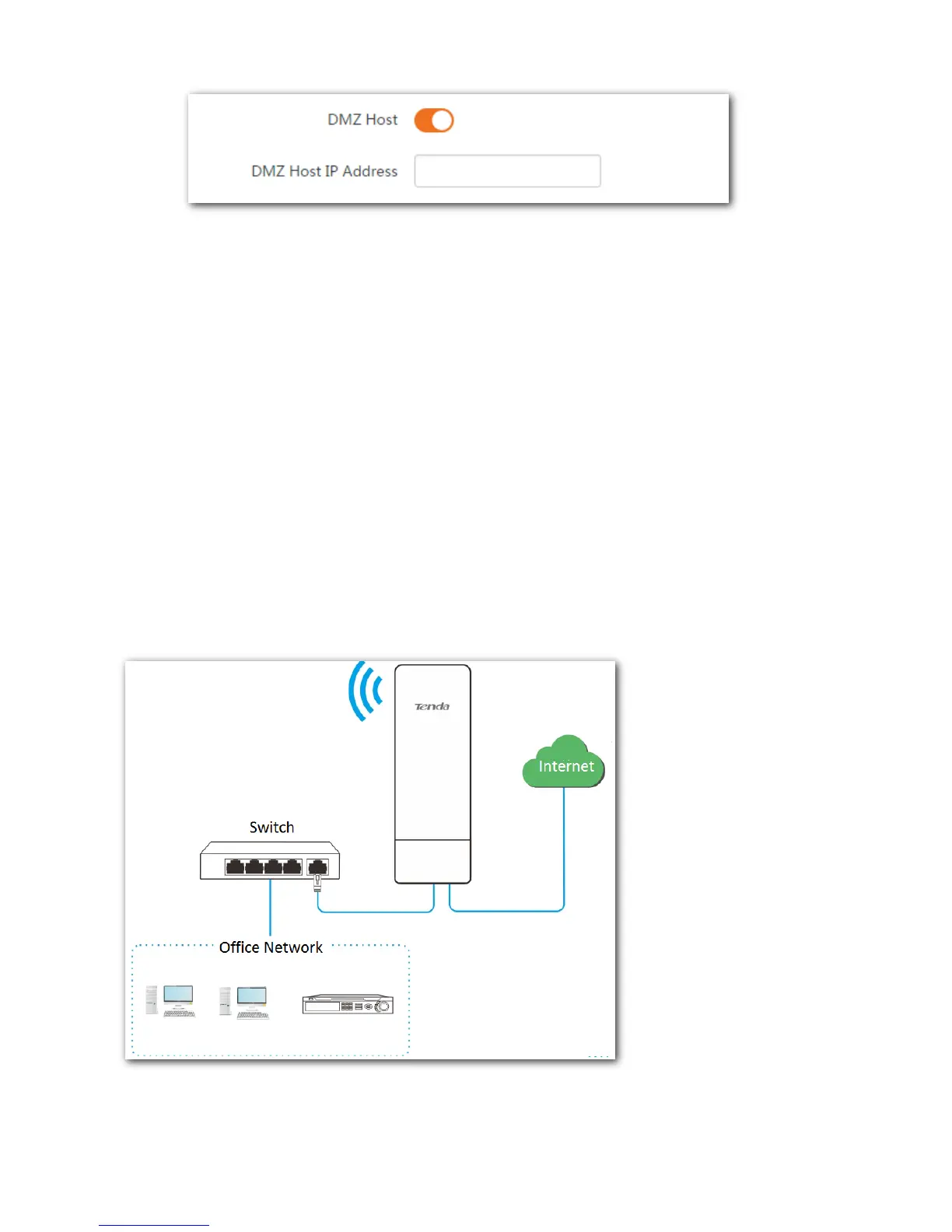

Network Topology
CPE in Router mode

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
