Tenda O1 User Manual

2
LED Indicator
Status
Description
WiFi
Solid on
The wireless function is enabled, but no data is being transmitted.
Blinking
Data is being transmitted in a wireless manner.
Off
The wireless function is disabled.
LED1, LED2, LED3
(Signal Strength LED)
Solid on
Bridged successfully, and the device works in AP mode.
LED1, LED2 and LED3 are solid on: Perfect Signal
LED1 and LED2 are sold on, and LED3 is off: Good signal
LED1 is solid on, and LED2 and LED3 are off: Weak signal. Please adjust the
direction or location of the two devices.
Blinking
Bridged successfully, and the device works in Client mode.
Off
The device does not bridge to another peer AP.

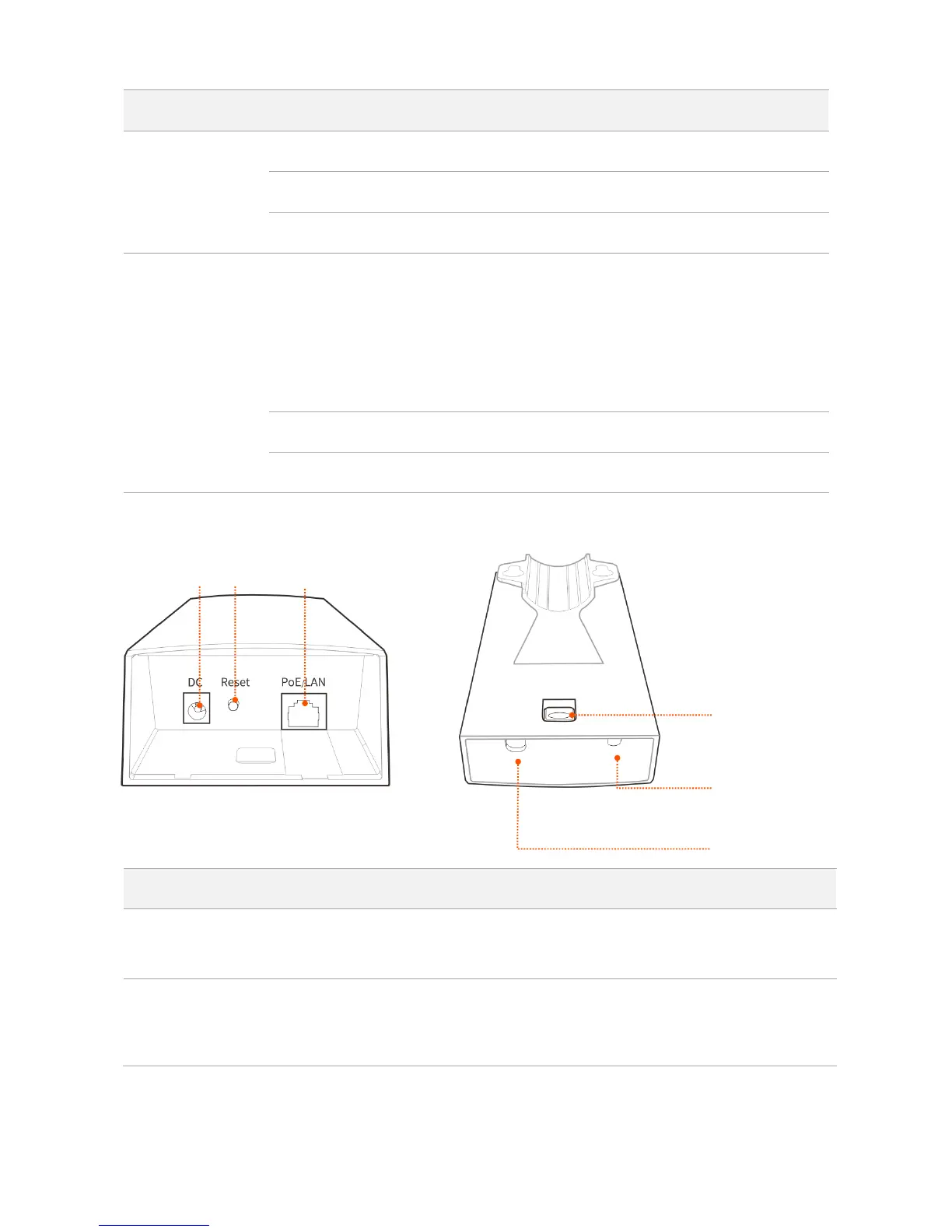

Button and Ports
O1 O1
ID
Port/Button
Description
①
DC
Power Jack
Connect the included power adapter to this jack to supply power to the device.
②
Reset
Reset Button
After the device is powered on for 1 minute, hold down this button for about 7 seconds.
When all the LED indicators on the device light up, the device is restored factory settings.
⑥
.
①
.
②
③
⑤
.
④

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
