Tenda O1 User Manual

35

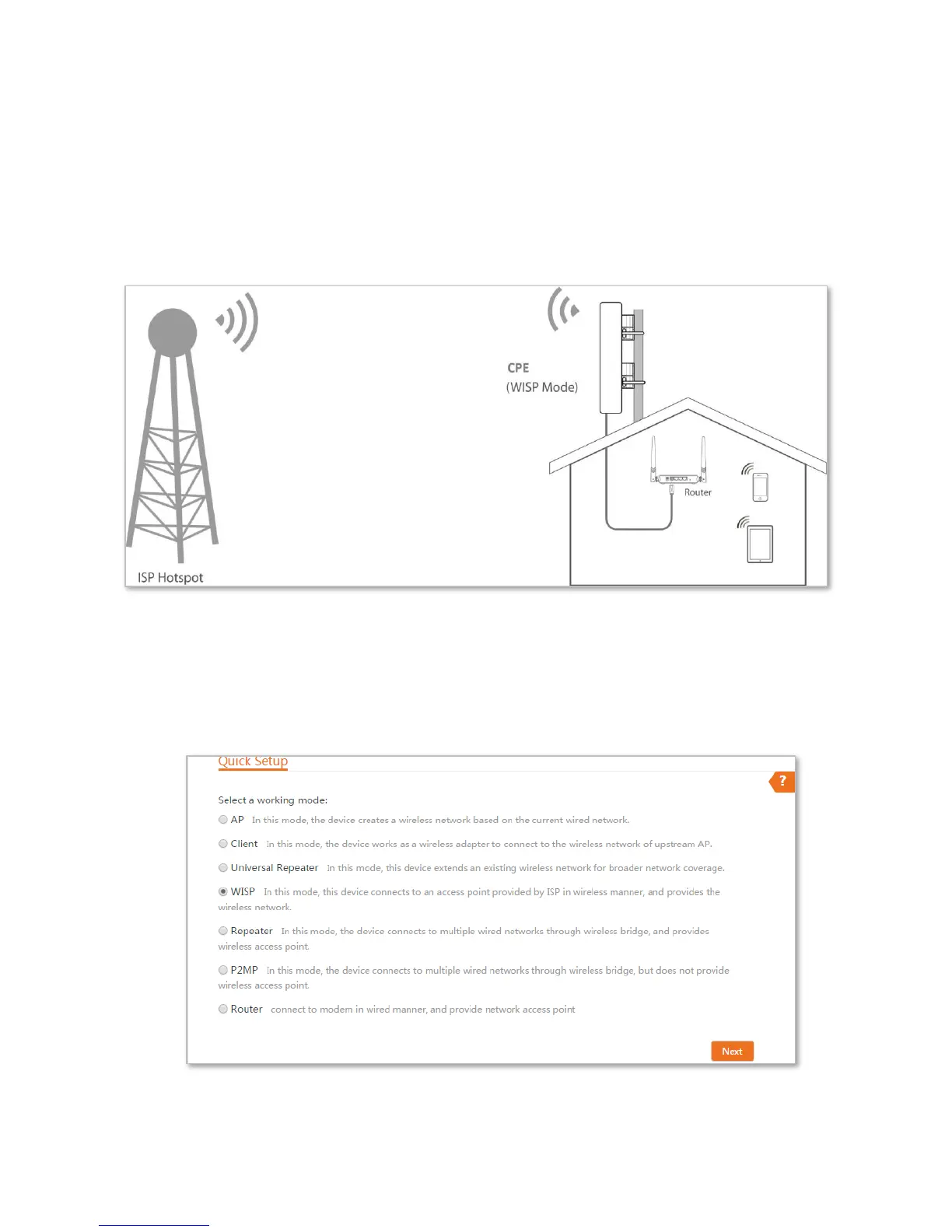

4.4 WISP Mode
4.4.1 Overview
In WISP mode, this CPE can connect to an access point provided by ISP in wireless manner, and allowed the
wireless devices to connect to the internet.
See the following network topology:
4.4.2 Setting up the WISP Mode
Configuration Procedure:
Step 1 Log in to the web UI of this CPE and choose Quick Setup to enter the configuration page.
Step 2 Select WISP, and click Next.
SSID: Tenda_123456
Key: 12345678

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
