Tenda O1 User Manual

19
You can check the SSID and key of the CPE1 or CPE2 by choosing Wireless > Basic after logging in to the
web UI.
2.2.3 Installing the CPEs

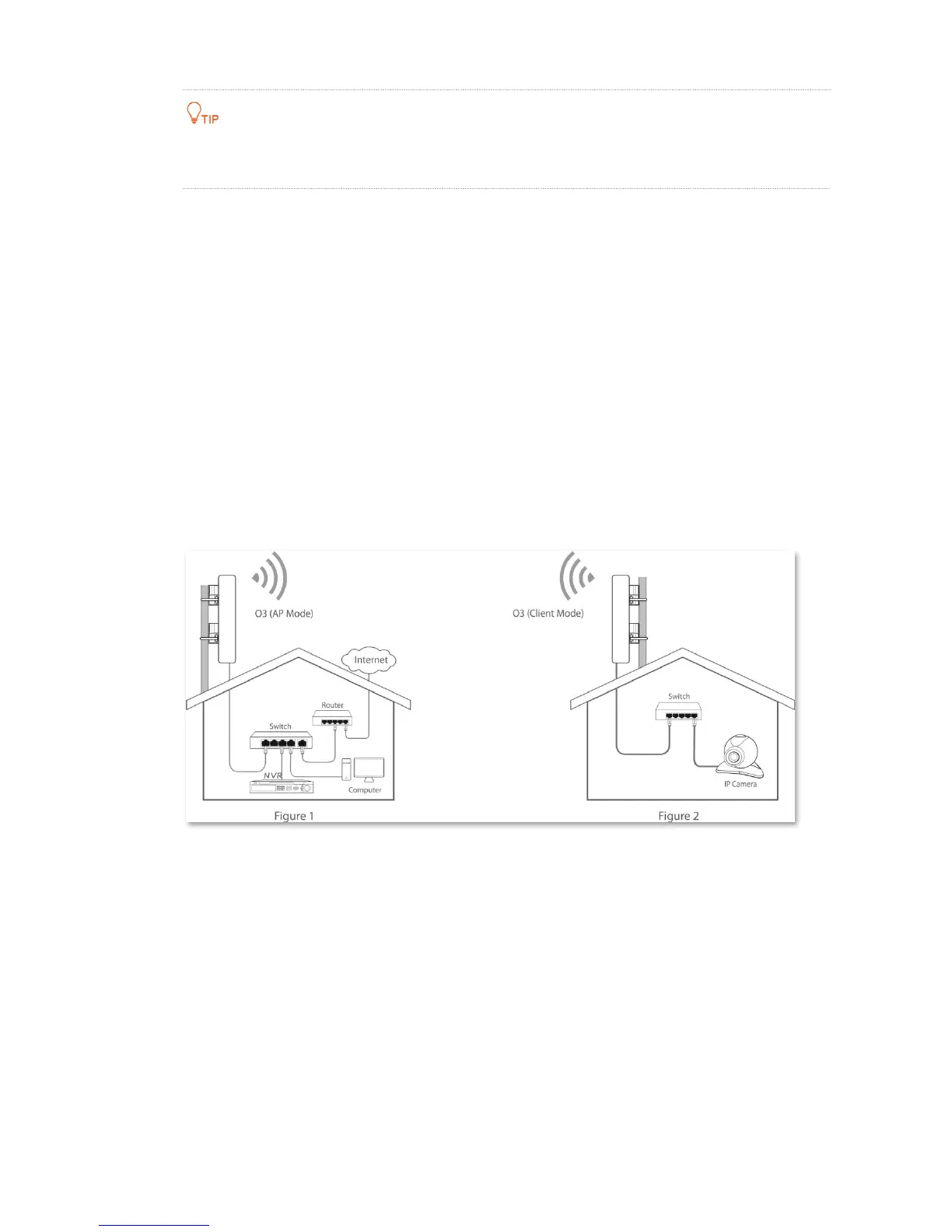

The CPE (transmitter in AP mode) with LED1, LED2 and LED3 solid on should be connected to the switch
connecting to a network video recorder (NVR). See Figure 1 below.
The CPE (receiver in Client mode) with LED1, LED2 and LED3 blinking should be connected to the switch
connecting to a monitoring IP camera. See Figure 2 below.
Detailed procedures are as follows:
Step 1 Place the transmitter in the open air at the point where the NVR is located. Place the receiver in the
open air at the point where the IP camera is located.
Step 2 Uncover the housings of the two CPEs, and connect the PoE/LAN/WAN ports of the CPEs to PoE
injectors respectively. The LAN/WAN LED indicators light up.
Step 3 Adjust the two CPEs’ direction or location until the LED1, LED2 and LED3 of the two CPEs light up.
Step 4 Use the plastic straps to attach the two CPEs to the poles respectively.
----End

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
