Tenda O1 User Manual

39
4.5 Repeater Mode (Only for O3)
4.5.1 Overview
In Repeater mode, the CPE connects 2 or more (this device supports 4 at most) wired networks with a wireless
link, and can be connected with both wired and wireless clients. To use this function, the peer AP is required to
support WDS function. Repeater mode is used to achieve communication between multiple offices of an
enterprise in a city.
The CPE in Repeater mode can works with the CPE in Repeater or P2MP mode. It supports one to four bridging at
most.
4.5.2 Setting up the Repeater Mode
One to One Bridging
Assume that CPE1 and CPE2 both work in Repeater mode and the wireless parameters of CPE2 are as follows:
SSID: Tenda_123456
Security mode: WEP
Authentication type: Shared
Key1 to key4: 1234

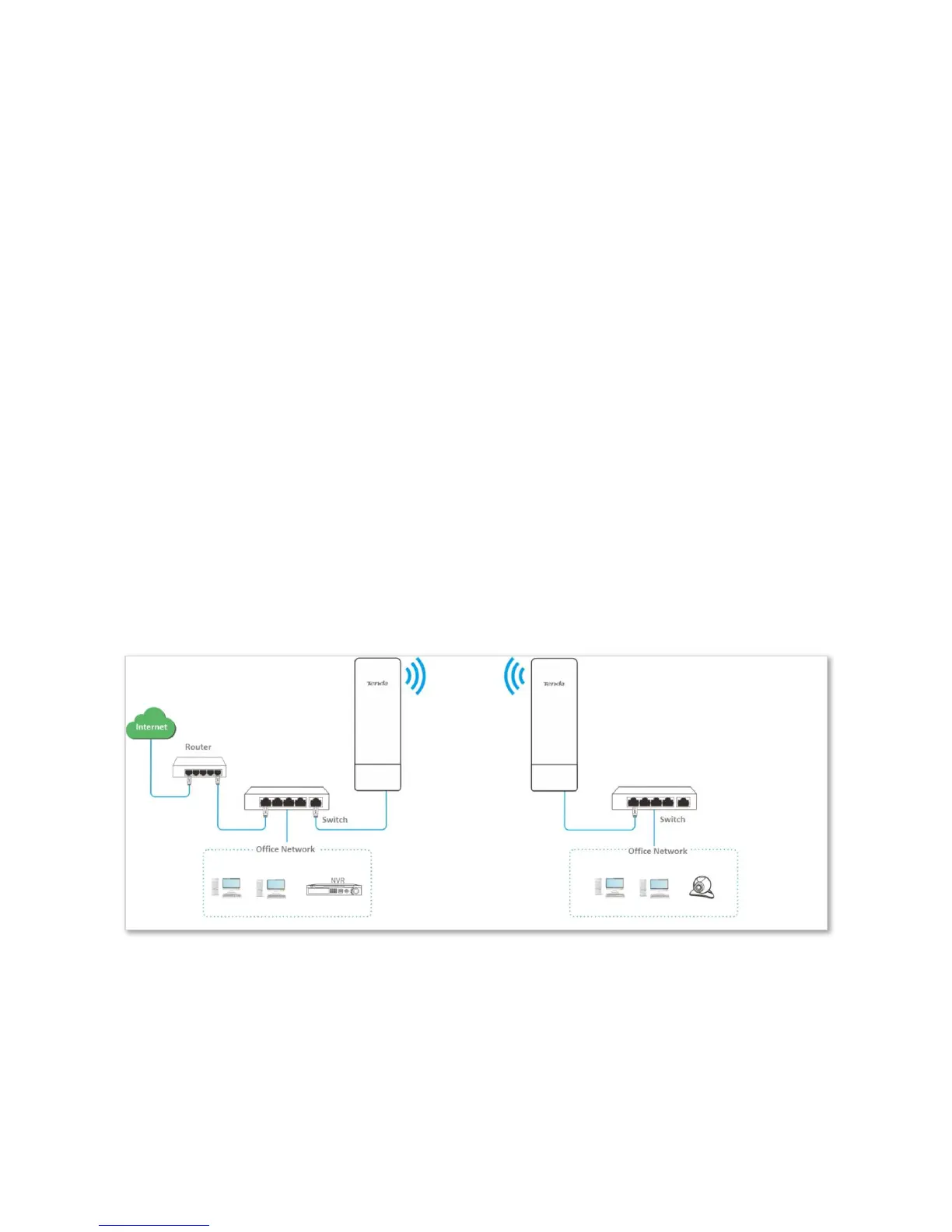

See the following network topology:
Configuration Procedure:
Step 1 Set CPE1 to the Repeater mode.
1. Log in to the web UI of CPE1 and choose Quick Setup to enter the configuration page.
2. Select the SSID of CPE2, which is Tenda_123456 in this example, and click Next.
CPE1: Repeater mode
CPE2: Repeater mode
SSID: Tenda_123456
Security Mode: WEP
Authentication Type: Shared
Key 1-4: 12345

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
