Tenda O1 User Manual

73
6.3 DHCP Server
6.3.1 Overview
The CPE provides a DHCP server function to assign IP addresses to clients on the LAN. By default, the DHCP
server function is disabled.
If the new and original IP addresses of the LAN port belong to different network segment, the system
changes the IP address pool of the DHCP server function of the CPE so that the IP address pool and the
new IP address of the LAN port belong to the same network segment.

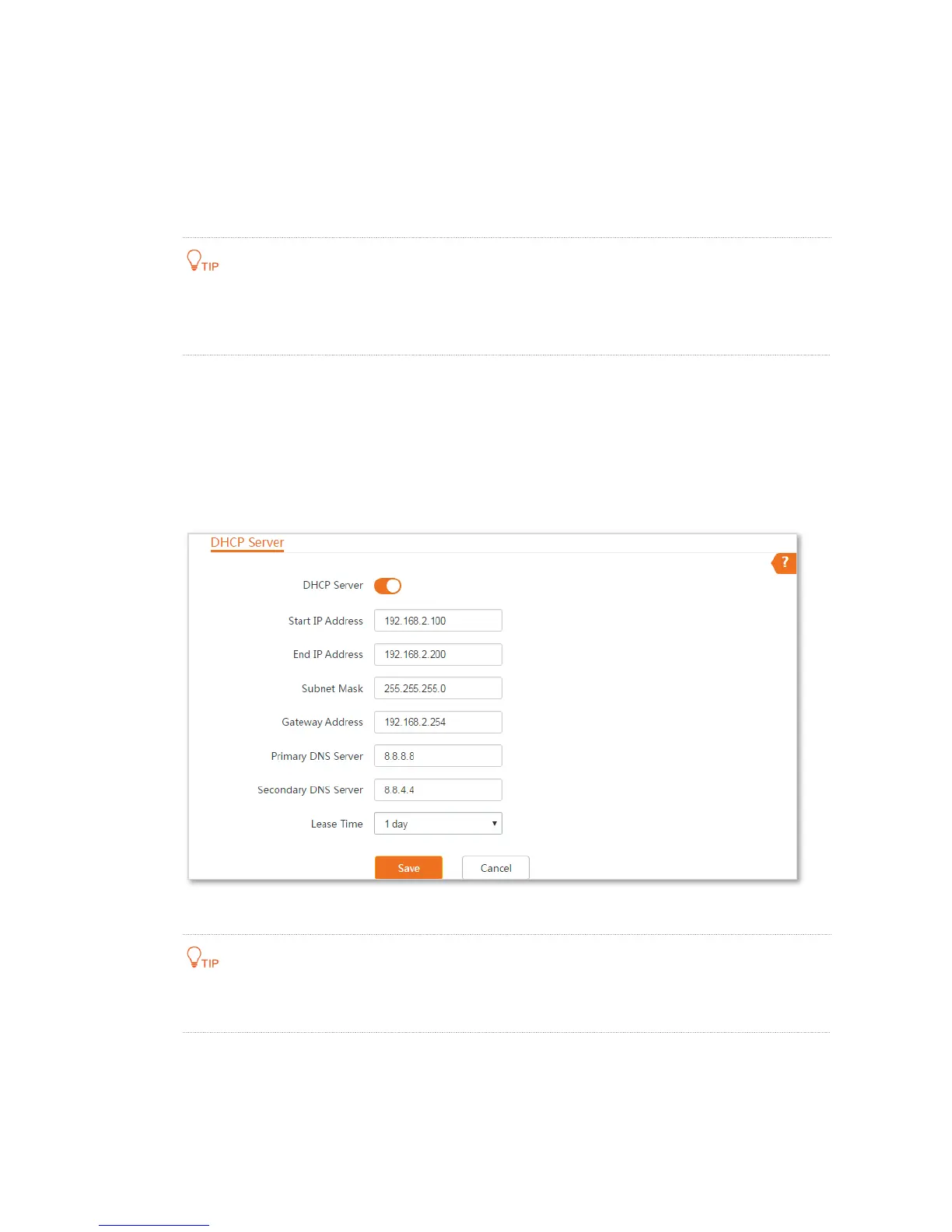

6.3.2 Configuring the DHCP Server
Step 1 Choose Network > DHCP Server to enter the configuration page.
Step 2 Enable the DHCP server.
Step 3 Set the parameters. Generally, you need to set only Gateway Address and Primary DNS Server.
Step 4 Click Save.
----End
If another DHCP server is available on your LAN, ensure that the IP address pool of the CPE does not
overlap the IP address pool of that DHCP server. Otherwise, IP address conflicts may occur.
*
*
*

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
