Tenda O1 User Manual

70
Automatically Obtaining an IP Address
This mode enables the CPE to automatically obtain an IP address, a subnet mask, a gateway IP address, DNS
server IP addresses from a DHCP server on your LAN. If a large number of CPEs are deployed, you can adopt this
mode to prevent IP address conflicts and effectively reduce your workload.
Configuration Procedure:

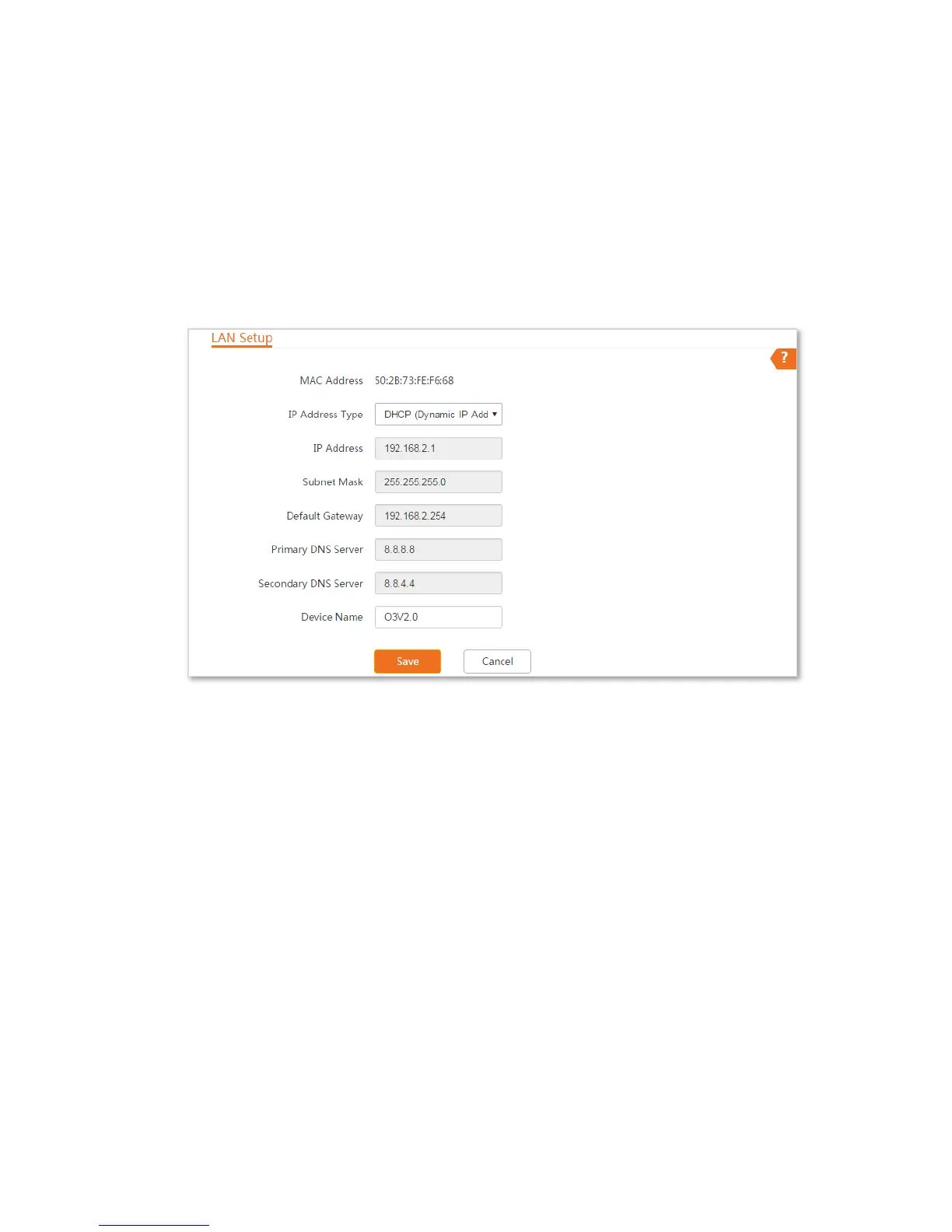

Step 1 Choose Network > LAN Setup to enter the configuration page.
Step 2 Set IP Address Type to DHCP (Dynamic IP Address).
Step 3 Click Save.
----End
After the configuration, if you want to re-log in to the web UI of the CPE, check the client list of the DHCP server
for the IP address assigned to the CPE, ensure that the IP address of the management computer and the IP
address of the CPE belong to the same network segment, and access the IP address of the CPE.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
