Tenda O1 User Manual

140
Community name is used to define the relationship between an SNMP agent and an SNMP manager. If the
community name contained in an SNMP packet is rejected by a device, the packet is discarded. A community
name functions as a password to control SNMP agent access attempts of SNMP managers.
SNMP V2C is compatible with SNMP V1 and provides more functions than SNMP V1. Compared with SNMP V1,
SNMP V2C supports more operations (GetBulk and InformRequest) and data types (such as Counter64), and
provides more error codes for better distinguishing errors.
MIB Introduction

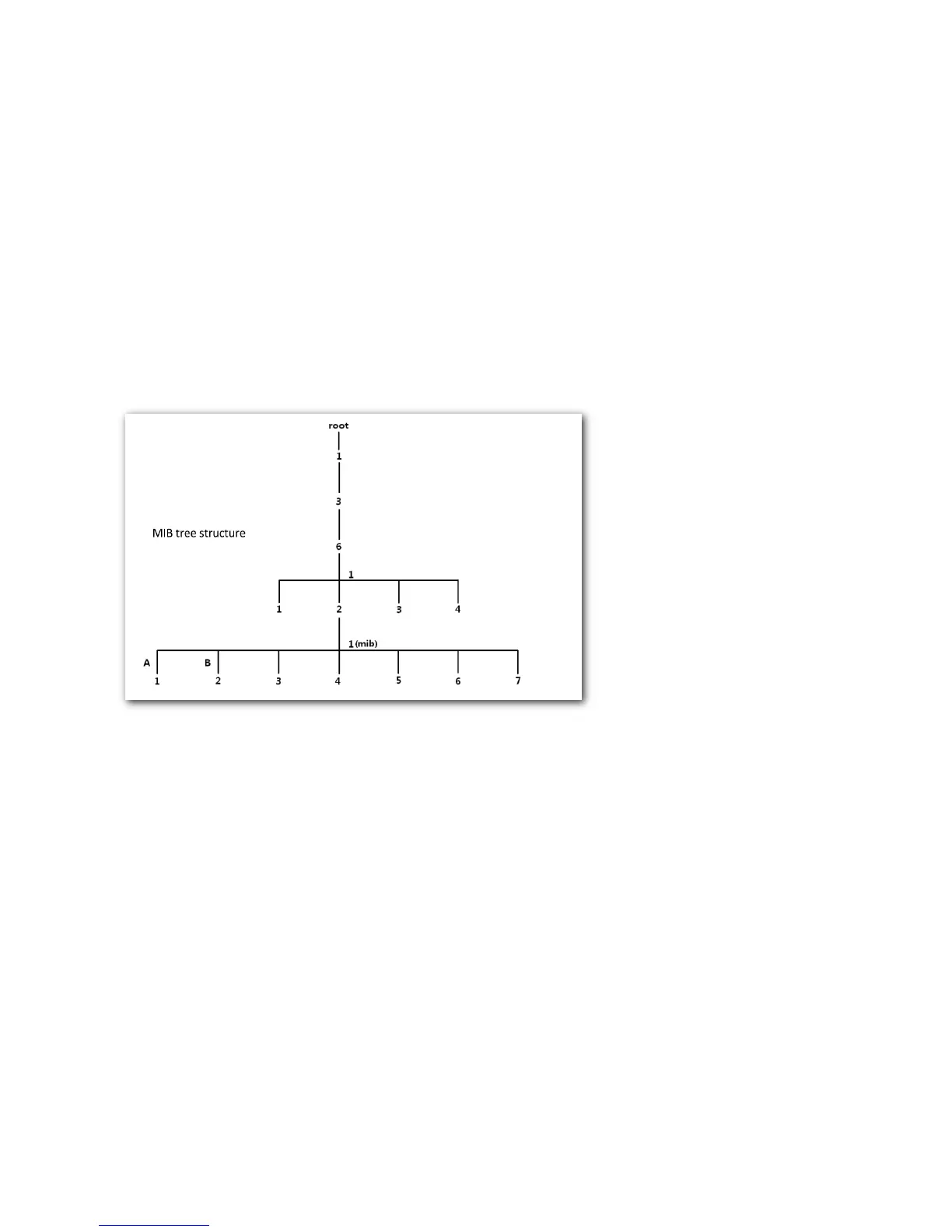

An MIB adopts a tree structure. The nodes of the tree indicate managed objects. A path consisting of digits and
starting from the root can be used to uniquely identify a node. This path is calling an object identifier (OID).The
following figure shows the structure of an MIB. In the figure, the OID of A is 1.3.6.1.2.1.1, whereas the OID of B is
1.3.6.1.2.1.2.
Configuring the SNMP Function
Configuration Procedure
Step 1 Choose Advanced > Network Service.
Step 2 Enable the SNMP Agent function.
Step 3 Set the related SNMP parameters.
Step 4 Click Save on the bottom of this page.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
