Configuration Procedure:
Step 1 Set the CPE1 to Repeater mode to bridge the main CPE.

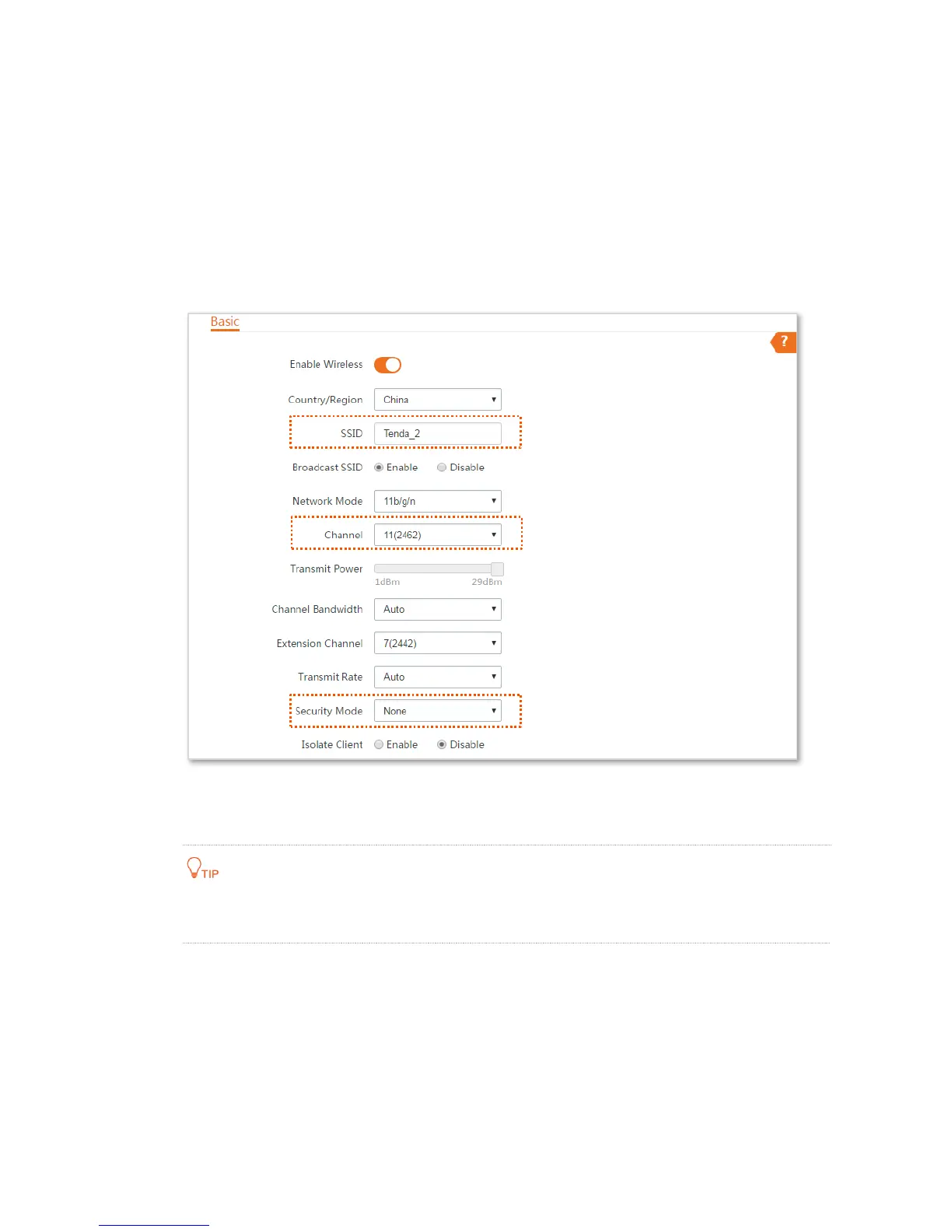

1. Log in to the web UI of CPE1, and choose Wireless > Basic to enter the configuration page.
2. Customize the SSID, which is Tenda_2 in this example.
3. Set the Channel to the same as that of the main CPE, which is 11 in this example.
4. Set the Security mode to the same as that of the main CPE, which is None in this example.
5. Click Save to apply the settings.
6. Choose Quick Setup, select Repeater mode, and click Next.
7. Select the SSID of the main CPE, which is Tenda_1 in this example, and click Next.
If you cannot scan the SSID of the main CPE from the list, choose Wireless > Basic and enable the
wireless function. Then try again.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
