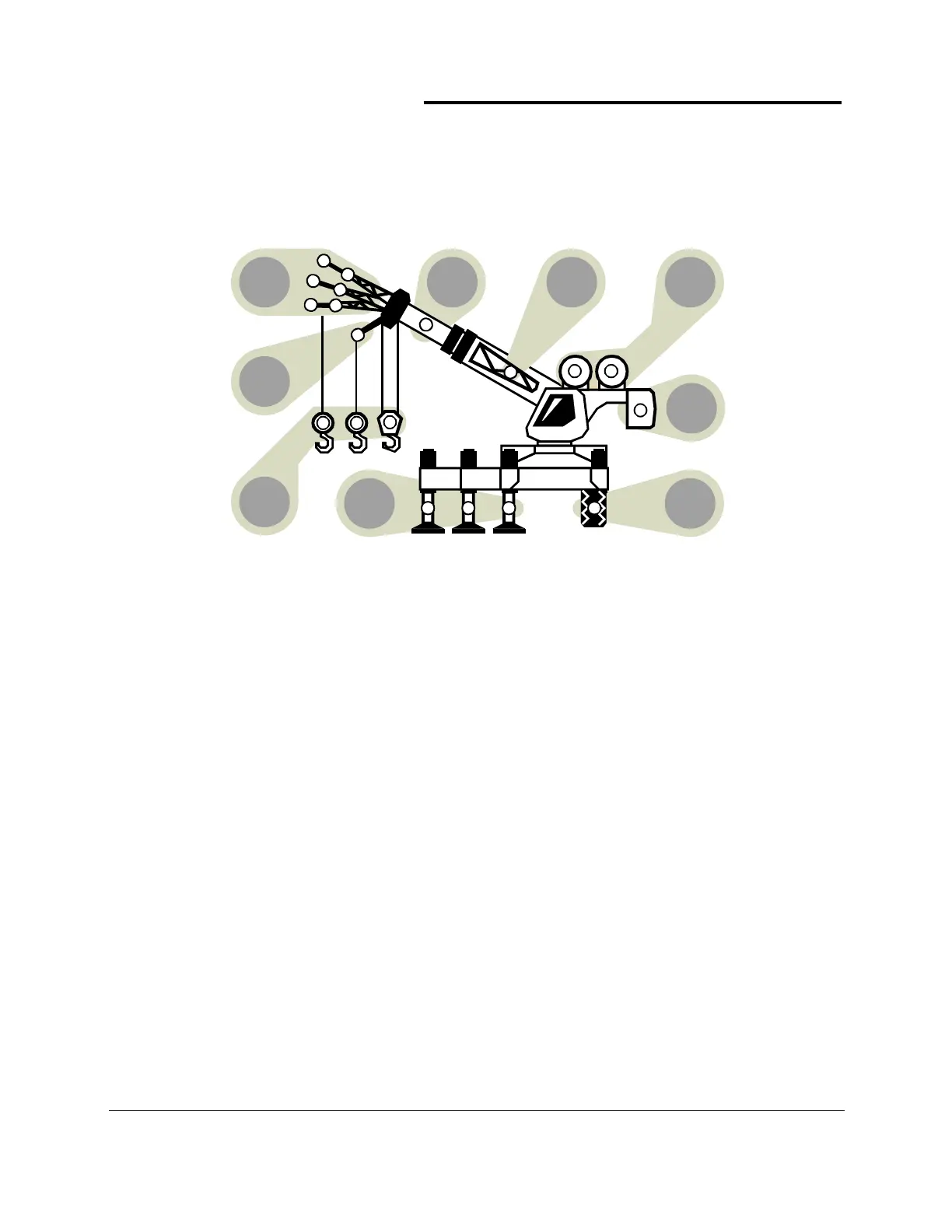

The
PICTOGRAPH
gives a pictorial representation of the current setup of the system. It does this by means of light
emitting diodes (LEDs). Each shaded area contains a group of one or more LEDs and a push button that is pressed
to change the setup selection. In the groups with more than one choice or option, LED’s illuminate one at a time to
indicate the selection. The groups are shown below.
OUTRIGGERS
- contain 3 LEDs. These indicate the
selection of either full outriggers, intermediate, or
retracted outriggers.
TIRES
- contain 1 LED. When operation on tires is
selected, the outrigger LED will turn off and the tire
LED will illuminate.
COUNTERWEIGHT
- contains 1 LED. It is only active
on cranes that have counterweight options.
WINCH
- contains 2 LEDs. These indicate the
selection of FRONT or REAR winch.
STOWED JIB
- contains 1 LED. This will be
illuminated when the jib is stowed on the boom.
MANUAL SECTION
-
contains 1 LED. It is
active on cranes that have pinned extensions or
active tip boom options.
JIBS
-
contain 6 LEDs. These indicate the length
and offset of the jib in use.
AUX HEAD
-
contains 1 LED that illuminates
when the AUX HEAD is fitted.
POINT OF LIFT
-
contains 3 LEDs. One will
illuminate to show the point of lift.
MANUAL SECTION
/ BOOM MODE
JIBS
AUX HEAD
POINT OF LIFT
OUTRIGGERS
TIRES
COUNTERWEIGHT
WINCH
STOWED JIB
