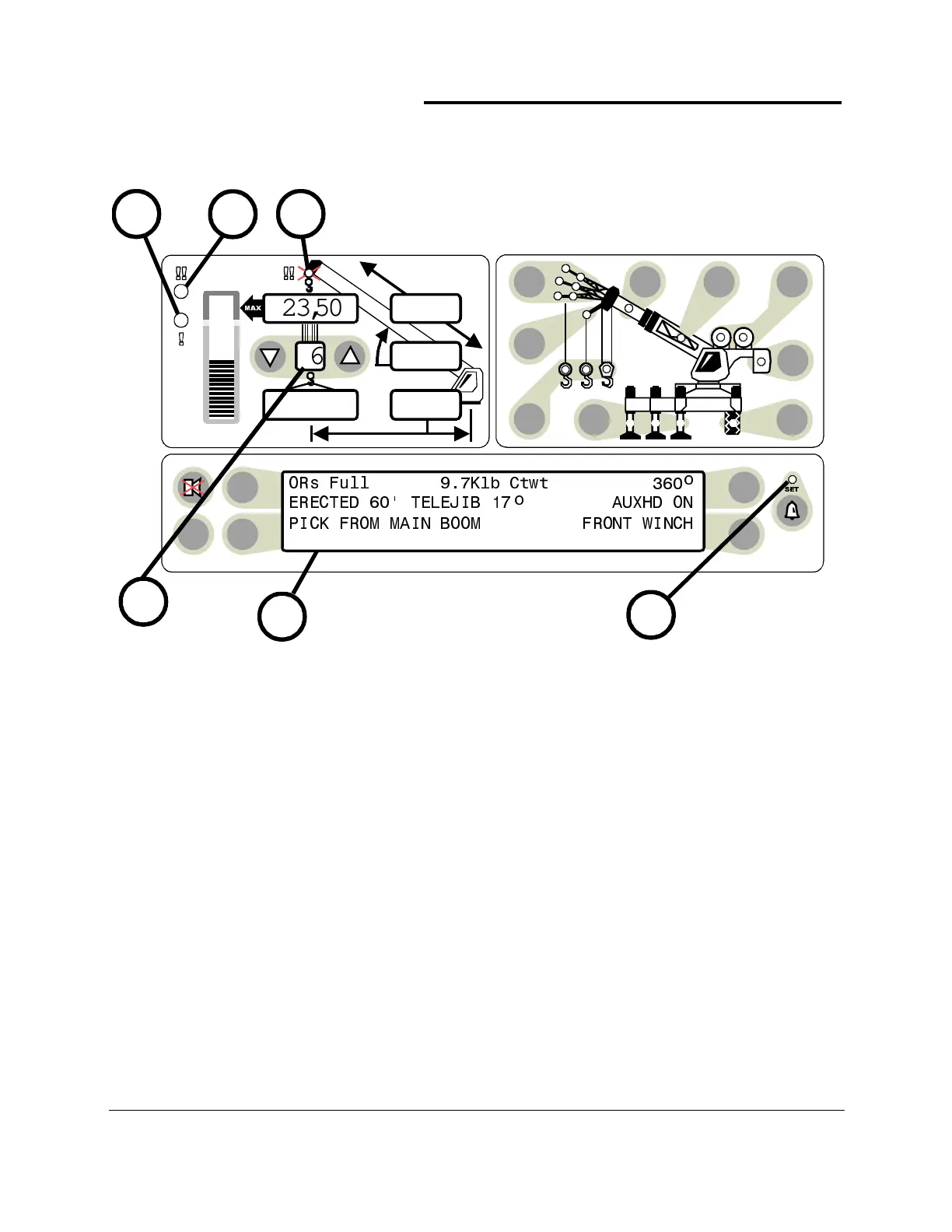

1. The
INFORMATION SCREEN
contains
details of the currently selected
configuration.
2.
PARTS-OF-LINE
displays the parts of line
currently selected.
3. The
OPERATOR ALARM
lamp illuminates
when operator alarms have been set.
4. The
PRE-ALARM (AMBER)
indicator
illuminates at a preset value of 90% of
Rated Capacity and provides a visual
indication of approach to overload.
5. The
OVERLOAD INDICATOR (RED)
illuminates at a preset value of 100% of
Rated Capacity and provides a visual
indication of Maximum Allowed Load.
6. The
ANTI TWO-BLOCK
lamp illuminates
when the A2B limit switch detects approach
to a Two-Block condition.
TEST
6
23,500
i2,300
44.8
62.7
26.4
5
4 6
2
1
3
