Terex RT700 - Inputting Crane Configuration Data





GREER COMPANY 1918 EAST GLENWOOD PLACE, SANTA ANA, CA 92705 PN W450250 Rev A 06/01/00
TEREX RCI 510 RATED CAPACITY INDICATOR OPERATOR'S MANUAL TEL:(714) 259-9702 FAX:(714) 259-7626
8 of 35


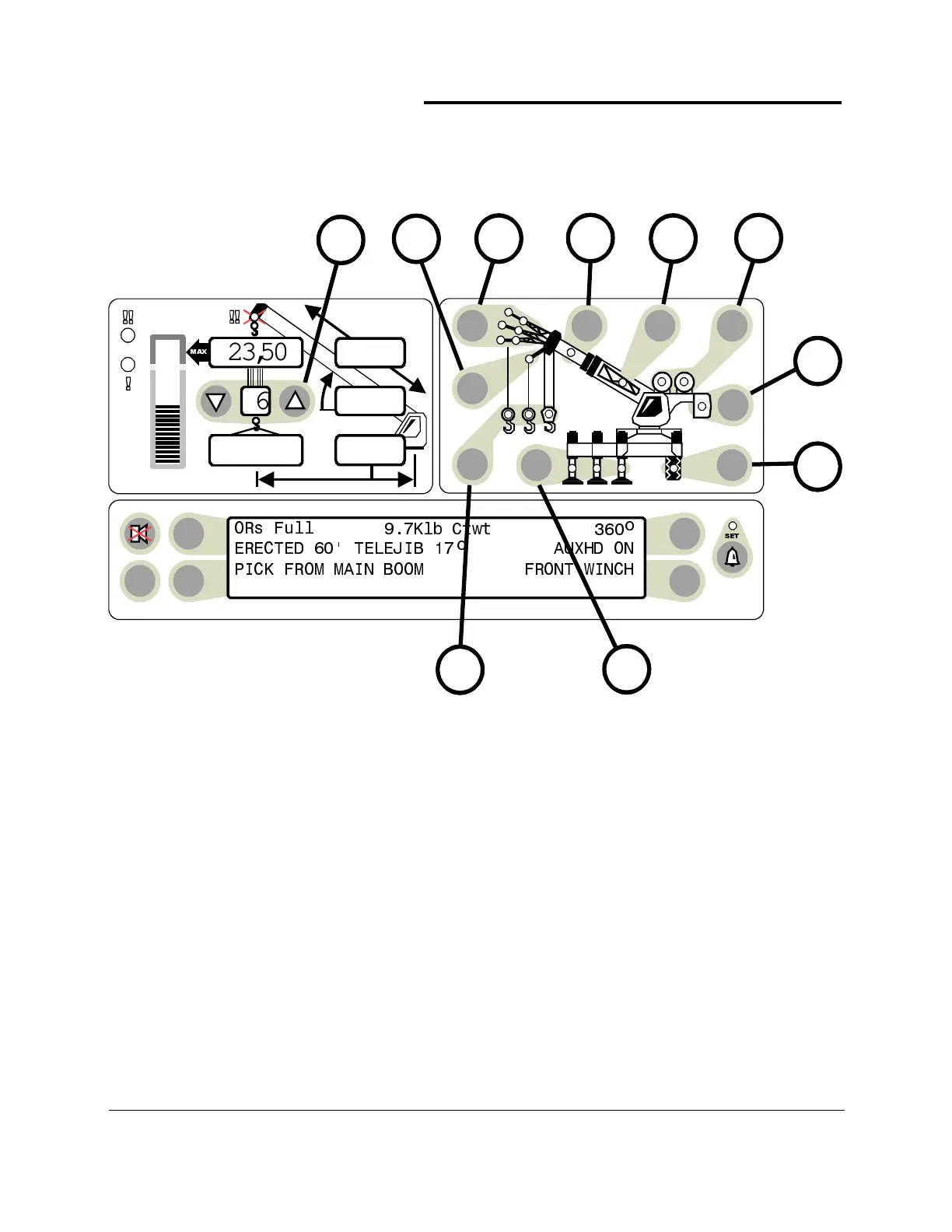

13. The number of
PARTS-OF-LINE
.
14.
POINT OF LIFT
, e.g. main boom, auxiliary
head or jib.
15.
AUXILIARY HEAD
ON or OFF the crane.
16. Indicates
JIB
configuration in use.
17.
MANUAL SECTION
or
ACTIVE TIP
extended (if applicable).
18.
JIB STOWED ON BOOM
.
19. Indicates which
WINCH
will be used for the
pick.
20. Indicates which
COUNTERWEIGHT
is fitted
(if applicable).
21.
TIRES
creep, static, 2 1/2 MPH, and
RIGGING/TRAVEL
mode.
22.
OUTRIGGERS
full extension, mid
extension, or retracted.
TEST


6
23,500
i2,300
44.8
62.7
26.4
15
13
16
14
22
19
18
17
20
21
 
 
      
      



