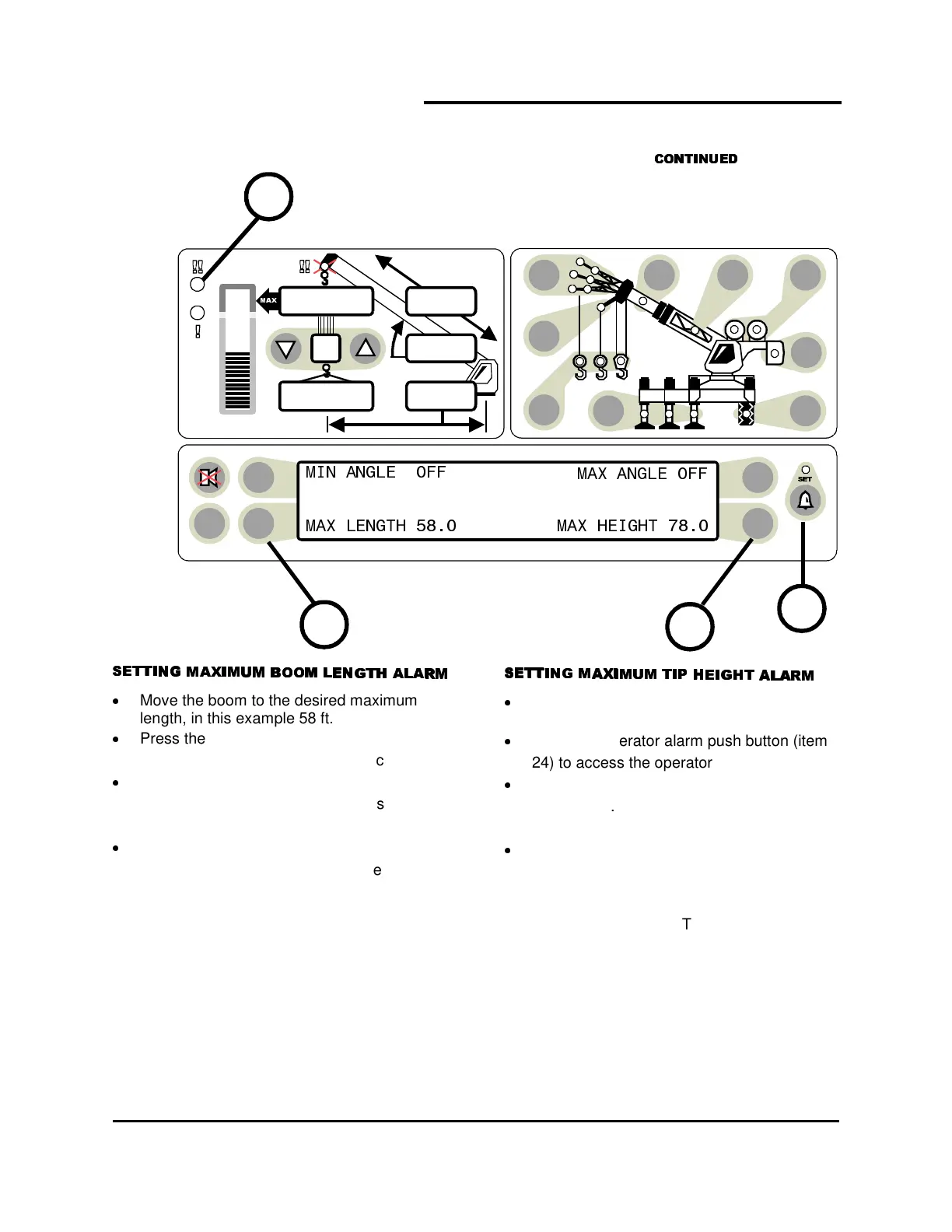

Move the boom to the desired maximum
length, in this example 58 ft.
Press the operator alarm push button (item
24) to access the operator alarm screen.
Press the push button (item 25) pointing to
Max Length. In this example the display will
read
MAX LENGTH 58 FT
.
The red warning light (item 5) will flash and
the audible alarm will sound whenever the
boom length exceeds 58 ft.
Pressing the MAX LENGTH push button again
will cancel the alarm and the display will read
MAX LENGTH OFF.
Move the boom to the desired maximum
height, in this example 78 ft.
Press the operator alarm push button (item
24) to access the operator alarm screen.
Press the push button (item 27) pointing to
Max Height. In this example the display will
read
MAX HEIGHT 78 FT
.
The red warning light (item 5) will flash and
the audible alarm will sound whenever the
boom tip height exceeds 78 ft.
Pressing the MAX HEIGHT push button again
will cancel the alarm and the display will read
MAX HEIGHT OFF.
! !
